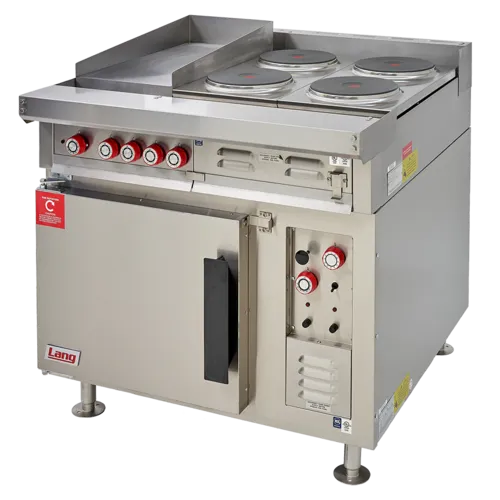

Lang Manufacturing R36S-ATF Heavy Duty Range
SKU#: R36S-ATF
1/6
Free Freight?
Quick Ship
$16,678.00
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Lang Manufacturing R36S-ATF Specifications
Installation Type | Freestanding |
---|---|
Burner Style | French |
Range Base Style | Standard Oven |
Brand | Lang Manufacturing |
Certifications | cULus |
Control Type | Thermostatic |
Heat | Electric |
Voltage | 208-480 Volts |
Wattage | 21 Kilowatts |
Width (in) | 36 |
Height (in) | 38.2 |
Depth (in) | 38 |
Weight | 540.00 |
Additional Information on Lang Manufacturing R36S-ATF
![buying-guide.pdf](https://cdn.ckitchen.com/img/product/95/9504982e-a329-4c55-85b8-9af53fb11c76/preview-image/buying-guide-221113sqei9b-221113n54370.jpg)
![installation-operation.pdf](https://cdn.ckitchen.com/img/product/95/9504982e-a329-4c55-85b8-9af53fb11c76/preview-image/installation-operation-221113tnwx7j-221113kantvb.jpg)
![lang-manufacturing-r36s-atf.specsheet.pdf](https://cdn.ckitchen.com/img/product/95/9504982e-a329-4c55-85b8-9af53fb11c76/preview-image/lang-manufacturing-r36s-atf.specsheet-221104t6851p-221104601f8m.jpg)
![warranty-sheet.pdf](https://cdn.ckitchen.com/img/product/95/9504982e-a329-4c55-85b8-9af53fb11c76/preview-image/warranty-sheet-2211043fheoq-221104ixjvez.jpg)
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Lang Manufacturing R36S-ATF Certifications
![cULus](/crm/userfiles/4571eadb-76f9-45bd-b37c-5f06370cc4e8-culus.png)
cULus
UL (Underwriters Laboratories) approval for the US and Canada
![NSF](/crm/userfiles/d048bd9e-5c7b-4786-8534-06e3103044b8-nsf.jpg)
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Lang Manufacturing R36S-ATF Description
Heavy Duty Range, electric, 36", (1) 12" hot top, 3/4" thick, thermostatic controls, (4) French plates, standard oven base with (1) rack, 1-hour timer, 2"H vented stainless steel stub back, stainless steel exterior, 6" adjustable legs, 21.0kW, cULus, NSF
Heavy Duty Commercial Electric Range, 36", (1) 12" hot top, 3/4" thick, thermostatic controls, (4) French plates, standard oven base with (1) rack, 1-hour timer, 2"H vented stainless steel stub back, stainless steel exterior, 6" adjustable legs, 21.0kW, cULus, NSF (commercial restaurant ranges and other cooking equipment also available)
Standard Features:
Standard Features:
- Damper control
- 6” wide full front landing
- 6” adjustable legs standard
- Full width 2” high range-top back riser
- 2-piece unit fits through 36” wide door
- 150-450°F oven thermostat with 60-minute timer and alarm
- 3” wide full front grease trough, grease drain & spillage drawers
- Heavy duty 430 Series stainless steel exterior insulated on six sides
- Griddle configurations include a one piece splash guard, back & sides
- All ranges are factory wired for 3-phase service. 208 or 240V service may be wired 1 phase by the installer.
Standard Oven
- Two 3-heat switches for oven
- Heavy-duty, hinge-down oven door
- One center rack guide with chrome plated rack
Convection Oven
- ON-OFF power switch
- Heavy duty right hinged door with magnetic closure
- Six position rack guides with 3 chrome plated racks provided
Options & Accessories
- Extra wire pan racks
- 480 Volt, 3-phase model
- Set of 6” casters, two-locking, two fixed
- High Storage Rack (for mounting above any 36” Range)
