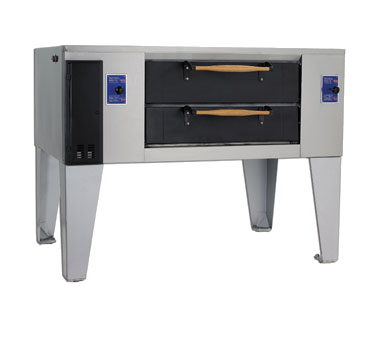

Bakers Pride DS-805-DSP Super Deck Series Display Pizza Deck Oven

Bakers Pride DS-805-DSP Super Deck Series Display Pizza Deck Oven
Request a Quote

You will earn 8,418 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

Free Freight

  • Please see specification sheet for installation clearance requirements

Two year parts & labor warranty standard

Super Deck Series Display Pizza Deck Oven, gas, 48"W x 36"D bake deck, one 6-7/8" high section, with ceramic decks, throttling thermostat range 300F - 650F, stainless steel exterior, 30" high painted legs, 70,000 BTU, NSF, CSA, CE

Standard Features:
  • Front & side skirts
  • Aluminized steel interiors
  • Fully insulated throughout
  • All stainless steel exteriors
  • Heavy-duty, slide-out flame diverter
  • 2 Year limited part and labor warranty
  • Riser top removable for field installations
  • 7-Gauge legs finished in Bakertone Gray
  • 300°-650° F (149°-343°C) throttling thermostat
  • Top & bottom heat control dampers & micro-slides
  • DS Series @ 70,000 BTUH per deck, natural or LP gas
  • Combination gas controls with valve, regulator & pilot safety
  • 6 3/4" (171mm) interior deck heights with 1 1/2" (38mm) thick hearth stone decks
  • Front or side mounted controls with large, hinged access door in black powder coat or stainless steel
  • Side or rear gas connections on models with front mounted controls - rear gas connections only on models with side mounted controls
  • Spring balanced, fully insulated doors finished in black powder coat with custom hardwood handles or stainless steel with tubular steel handles
Options & Accessories:
  • Special height legs
  • Automatic oven starter
  • Stainless steel leg covers
  • Steel decks in lieu of hearth decks
  • 150°-550° F (65°-288°C) thermostat
  • 300°-650° F (149°-343°C) thermostat
  • Without dome/riser and/or without skirts
  • Draft flue for direct vent (not available on CE units)
  • Set of 4 casters - two with locks - not for use with skirts
BAKERS PRIDE Super Deck DS DSP gas Deck Ovens Ovens may be stacked two high. Oven exteriors are all heavy gauge, type 403 stainless steel and are fully insulated up to 5" (127mm) thick for cooler outer temperatures and consistent interior temperatures. Interior oven frame is constructed of 1/4" (6mm) heavy-duty angle iron frame, completely welded to form a single, unitized section. The oven body and lining are then welded to the framework. Oven interiors are manufactured of high-heat resistant 16-gauge aluminized steel. Doors are fully insulated, spring balanced to remain open or closed until moved and finished in black powder coat with hard wood handles. All models feature independent, operator-controlled top & bottom heat control dampers and micro slides for perfectly balanced results. DS DSP Series features a 300°-650° F (149°-343°C) throttling thermostat, 6 3/4" (171mm) interior deck height with 1 1/2" (38mm) thick hearth stone decks (steel decks optional) and are supported by a 1/4" (6mm) angle iron frame. Combination gas control incorporates a manual gas valve, pilot safety and pressure regulator. Easily removable, slide-out, heavy-duty flame diverters distributes the burner flame uniformly in the burner chamber. A 3/4" (19mm) NPT gas connection is located on the left side and left rear of oven - operator/installer may choose. Heavy-duty, 7-gauge hot rolled steel legs are standard and finished with durable Bakertone Gray. 2 Year limited part and labor warranty standard.

The Bakers Pride® model D-805-DSP pizza oven is a great way to add display cooking to your high-volume pizza and baking operation. This oven is finished with black-powder-coated control panels and hardwood door handles for an elegant touch. It can also be built in behind a decorative facade of brick, stone, or tile for a traditional, old-world look. Front and side skirts allow tile or stone to be easily installed around the legs.

This model is constructed with heavy-duty, .25" angle iron frame, which is fully welded to allow for double-stacking or stacking under an Il Forno Classico. The oven chamber features one Cordierite deck with a 6.75" deck height and independently controlled top and bottom heat dampers for perfectly balanced results.

Automatic starter, control, & dome
Gas note
Vent type
Gas types
Deck material
Smoke box
Mounting options
BTU 70,000 BTU
BrandBakers Pride
Throttling Thermostat Range300F - 650F
Power TypeGas
Legs30" high painted legs
Exterior FinishStainless steel exterior
Width (in)65.25
Height (in)54.87
Depth (in)43
