Cleveland Range Range 24CGA10 Steamcraft Ultra 10 Convection Steamer

Cleveland Range Range 24CGA10 Steamcraft Ultra 10 Convection Steamer
Request a Quote

You will earn 14,775 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

for more information

FINANCEFOR $348.99/mo.
Regularly Stocked
Free Freight

  • 3-Year Convection Steamer Door Warranty
  • Please see specification sheet for installation clearance requirements
  • Free Start-Up Program: Includes a performance check-out by Factory Authorized Servicer after installation and equipment demonstration by factory trained sales rep.

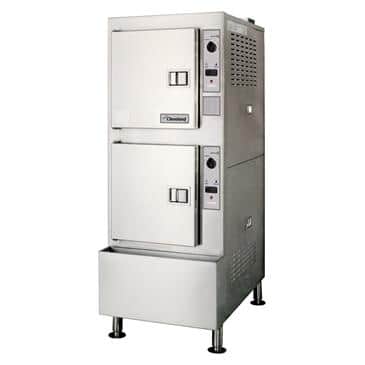

Steamcraft® Ultra 10 Convection Steamer, pressureless, gas, 2 compartments, (5) 12 x 20 x 2 1/2 pans/compartment capacity, manual controls, 60-minute mechanical timer & manual (continuous steaming) by-pass switch, left-hand hinged door, controls on right, steam shut-off switch, 1 standard treated & tap water connection, stainless steel construction, 6" adjustable legs with flanged feet, 125,000 BTU
Standard Features:
  • Left Hand Door Hinging: Compartment Doors hinged on the left, controls on the right.
  • Condensate Drip Trough: Provide under lower compartment door to collect condensate.
  • Easy Access Cleaning Port: Generator Cleaning Port located on the outside, top of the unit.
  • Cooking Capacity for up to ten 12˝ x 20˝ x 2 1⁄2˝ deep Cafeteria Pans, five each compartment.
  • NSF Certified 6˝ Stainless Steel Legs with adjustable flanged feet for a one inch level adjustment.
  • Durable 14 Gauge, 304 Stainless Steel Construction: For compartment door, cavity and steam generator.
  • Automatic Generator Drain: Contains a “Water Jet” Spray Rinse Drain Cleaning Cycle to keep drain clear.
  • Instant Steam Stand By Mode: Hold generator at a steaming temperature. Allows unit to start cooking instantly.
  • Two 60 Minute Electro-Mechanical Timers and Switches for manual operation: Audible signal for cooking time completion. (MCS)
  • Exclusive Automatic Probe for Water Level Control: Separate from the generator for easy access, contains a high velocity rinse cycle to eliminate mineral buildup.
  • Main Power On/Off Switch: Automatically fills generator with water, then ignites gas burners via a fully automatic Electronic Spark Ignition (pilot-less) to start generator.
  • Exclusive “Cool to the Touch” Two-Piece Compartment Door Design: Free floating inner door with reversible gasket provides an air tight seal. Stainless Steel Slam/Latch Door Latch mechanism for reliability.
  • Innovative PowerPak Gas Steam Generator: Unique 125,000 BTU, 80% efficient Vertical Atmospheric Generator Design, only uses 75M BTU when one compartment is used. Strong 14 Gauge Stainless Steel Construction. Large 7.5 gallon generator reservoir for high speed cooking production. Fully insulated rear mounted steam generator.
  • Exclusive Steam Cooking Distribution System: Exclusive Brass Steam Jets produce a high velocity convection steam without fans. Curved Corner design in cooking compartment distributes heat evenly, and is easy to keep clean. Creased top & bottom enhance  drainage. Cold Water Condenser for each compartment maintains a dry steam. Fully insulated cooking compartment for thermal efficiency. Removable Stainless Steel Slide Racks.
Options & Accessories:
  • 8˝ Stainless Steel Legs
  • Propane Gas option (PG)
  • Cafeteria Pans in depths of 1˝, 2 1⁄2˝ and 4˝
  • Compartment Door Steam Shut Off Switch (SCS)
  • Right hand Door Hinging, Controls on the Right (DHR)
  • Electronic Timer with Compensating Load Feature (ETC)
  • ON/OFF Steam Switch only for compartment controls (MC)
  • Dissolve ® liquid descaling kit. USDA and FDA approved (10617413)
Cleveland’s “Best-in Class” product line offers the industry’s overall best “Standard Warranty Program” featuring:
  • Free Performance Start Up with Water Quality Check
    • Free Water Quality Check included with start up
  • 1-Year Door Gaskets and Adjustments included
    • 3, 5, 6 pan and 10 pan compartment steamers, non-part adjustments
  • 2-Year K-12 School Warranty included
    • 3-Year warranty included with purchase of Filter
  • 2-Year Warranty with Filter Purchase from Cleveland
    • Full 2-years parts and labor coverage
  • 5-Year Prorated for Pressure Boilers and Steam Generators
    • 100% covered for first 2 years with filter purchase
CLEVELAND, SteamCraft Ultra 10, two compartments, Floor Model Steamer, Model 24-CGA-10, single, large capacity Gasfired Atmospheric Steam Generator, 125M BTU input. Remote Probe Type Water Level Controls. Steam Generator with Automatic Water Fill on start up, Automatic Generator Blowdown, Electronic Spark Ignition and Generator Stand-by for instant steam. Choice of Compartment Controls, Manual By Pass Operation Mode, Exclusive Cold Water Condenser design, Type 430 Stainless Steel exterior and cooking compartments.
Door warranty
Generator warranty
Drain cooling kit
Door hinging & controls
Misc. pans
Descaling & drain cooling kit
K-12 warranty
Correctional packages
Gas types
Extended warranty
BTU 125,000 BTU
BrandCleveland Range
Control TypeManual
Interior FinishStainless Steel
Type1 Steam Generator
Width (in)24
Height (in)65.5
Depth (in)33
You May Also Need

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software


NOTE! This is a general product line video and does not necessarily reflect the listed model.

Cleveland Range 24CGA10 Steamcraft Ultra 10 Convection Steamer
Customer Reviews

There are no reviews yet for this product.

Questions and Answers
I need to change the door hinge on the standard (left-hinge) model to opposite (right-hinge) side. Is that an option or extra charge?
That is an option at time of order and has an extra charge as the controls also have to be moved.
