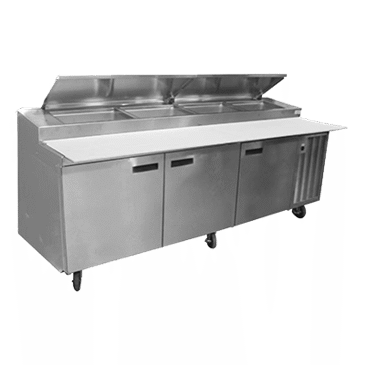

Delfield 18699PTLV LiquiTec®Refrigerated Prep Table

Delfield 18699PTLV LiquiTec®Refrigerated Prep Table
Free Freight
Price $13,487

for more information

Price $9,810

You will earn 9,810 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $246.03/mo.

  • 2019 model, meets the newest EPA and DOE codes.

Width (in)99.00
Height (in)42.00
Depth (in)31.50
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

LiquiTec®Refrigerated Prep Table, 99" W, 6" Casters, (3) Shelves, (3) 27" Doors, Three-section, 27.46 cubic feet, 20" Cutting board, Stainless steel ends, (4) 12"x20" Pan capacity, Side-mounted refrigeration system, 18 gauge Stainless steel top with LiquiTec® refrigerated pan rail, R404a refrigerant, 1/2 hp, cUL, UL, NSF 7

Standard Features:
  • Electronic Controls
  • 8' long electrical cord
  • 20" cutting board is standard
  • Dart style quick change gaskets
  • Pans and adapter bars by others
  • Flush mount NSF-7 certified pans
  • One year parts and labor warranty
  • Stainless steel removable hinged covers
  • On/off switch is located behind the louver
  • 22-gauge stainless steel ends are standard
  • Top is constructed of 18-gauge stainless steel
  • Environmentally friendly HFC-404A refrigerant
  • 1.50" diameter hole in louver for easy access to rail on/off switch
  • Rail is mechanically cooled utilizing LiquiTec® technology with die stamped 12"X20" openings
  • High density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam throughout unit
Options & Accessories
  • Lock
  • 6" legs
  • 4" casters
  • Tray racks
  • Laminate end
  • Laminate back
  • tainless steel back
  • Laminate facing (full front)
  • Additional shelf (specify door size)
  • Celsius readout for electronic control
  • Cheese grates with removable catch pans
  • 18" deep single tier stainless steel overshelf
  • 27" wide refrigerated drawers (2) high, holds 6" deep pans
  • 27" wide refrigerated drawers (3) high, holds 4" deep pans
xterior Top: Constructed of one-piece 18-gauge stainless steel, with integral 2.12" (5cm) high square nosing at the front. Top has a mechanically cooled LiquiTec® refrigerated raised rail at the rear with openings to accommodate pans (pans and adapter bars are not included). Rail interior is 22-gauge stainless steel. Raised rail openings have 18-gauge stainless steel hinged removable lids. Unit is equipped with separate expansion valve and on/off switch for refrigerated rail. Temperature in top openings maintains 33°F (1°C) to 41°F (5°C) with pans flush mounted at 86°F (29.7˚C) ambient room temperature, meeting NSF 7 requirements. Exterior Back, Bottom and Ends: 24-gauge galvanized steel back and bottom. Exterior ends are finished with 22-gauge stainless steel. Base Interior: Stainless steel back and bottom. Base interior sides and door frames are thermoformed ABS plastic. Each interior door section has (1) 25" (64cm) deep removable epoxy coated wire shelf. Base is insulated with 2" (5cm) high density foamed in place polyurethane. End of base has a machine compartment with condensing unit installed. Door(s): 22-gauge stainless steel exterior front, with a thermoformed ABS plastic interior liner. Refrigeration System: HFC-404A refrigerant. Cabinet has (1) blower coil assembly with expansion valve on 48" and 72" models and (2) on the 99" model, located in coil housing. Base is equipped with independently controlled thermostat, solenoid valve and condensate evaporator. Refrigerated base maintains temperature of 36°F (2°C) to 40°F (4°C). On/off switches for rail and base are located behind the louvered panel. A 1.50" diameter hole is on the louver for easy access to rail on/off switch. Electronic control for base reads air temperature. Electronic control for rail displays temperature for set point purposes only. Display does not reflect air or product temps in unit.
Drawer & tray rack options
Cheese grate, cutting board & overshelf
Finish options
Refrigeration options
