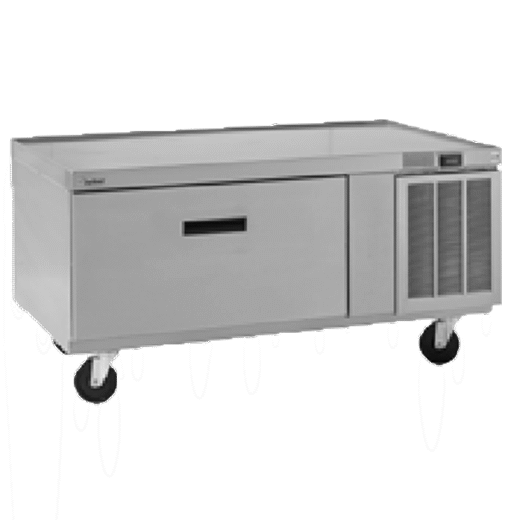

Delfield F2694P Freezer Low-Profile Equipment Stand

Delfield F2694P Freezer Low-Profile Equipment Stand
Free Freight
Price $10,380

for more information

Price $7,549

You will earn 7,549 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $189.33/mo.

  • 2019 model, meets the newest EPA and DOE codes.

Width (in)94.00
Height (in)26.00
Depth (in)31.94
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Freezer Low-Profile Equipment Stand, 94" W, Two-section, ABS Interior sides, Front non-spill edge, 6" Adjustable stainless steel legs, Stainless steel top & drawer fronts, (2) Drawers holds (4) 12"x20" pans (pans not included), Side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, (2) 1/3 hp, cUL, UL, NSF 7

Standard Features:
  • Electronic control
  • 8' cord and plug supplied
  • Standard stainless steel ends
  • Wall-mounted bracket to prevent tipping
  • Exterior drawer fronts are stainless steel
  • Snap-in drawer gaskets for easy removal
  • Environmentally friendly R290 refrigerant
  • Height of surface for setting equipment is 25.50"
  • Self-contained freezers are standard with a defrost timer
  • Top is heavy duty stainless steel, with full perimeter marine edge
  • Three year parts and labor warranty and an additional two year compressor parts warranty
  • When ordering, specify make, model and depth of cooking equipment sitting on the equipment stand
  • Base cabinet will maintain 0º to -5º temperatures at 100º ambient room temperature meeting NSF7 requirements
  • Base interior cabinet is cooled with mullion style coated blower coil(s) mounted between each door/drawer section for even air and temperature control
  • High density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam insulation throughout unit
  • Full Extension Plus Drawer system is a complete drawer system. Drawer system is sized to hold 12" x 20" x 8" deep hotel pans (by others). The drawer system is all stainless steel construction for maximum durability
Options & Accessories
  • Casters
  • Drawer locks
  • Stainless steel back
  • Plastic laminate end
  • Plastic laminate front
  • Plastic laminate back
  • Mechanical housing left side
  • Celsius readout for electronic control
  • Remote refrigeration available in R404A (contact factory)
  • 8" deep clear polycarbonate pans in full, 1/2 and 1/3 size dimensions available
Exterior top is 18-gauge stainless steel with full perimeter marine edge. Corners are fully welded with smooth radii corners for easy clean out. Interior subtop is 22-gauge stainless steel. Over two inches of environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) Polyurethane two-part foam provides insulation and rigidity. Refrigerated base has 22 gauge stainless steel interior back, bottom and sides. Base exterior back, bottom and sides are constructed of galvanized steel. Finished stainless steel ends are standard. Louver, coil panel and drawer faces are all standard with stainless steel construction. (Unit is supplied with a wall-mounted bracket and threaded rod to allow installation of the unit against a solid surface.) Units foundation is made of 14 gauge 1.50" tall x 3.25" galvanized leg rails with casters as standard. Unit comes standard with a stainless steel leg rail cover-up skin. Legs available on request. Full Extension Plus drawer system is a complete drawer system, which can operate independent of the unit it’s installed in. Drawer system is sized to hold 12" x 20" x 8“ deep hotel pans and smaller fractional pans. Drawer system is all stainless steel construction for maximum durability. Drawer track rollers are made of Delrin and do not require grease for operation. Intermediate tracks are removable without tools and house Delfield’s “anti-friction binary roller system". Drawer boxes are designed with “easy pan grip flanges". Tracks are designed with a stay shut feature that holds the drawer gasket tight to the base front on uneven floors. Exterior drawer fronts are made of stainless steel; and an interior made of ABS plastic with formed in channels to house the snap-in dart style santoprene gasket. A galvanized brace is foamed in place to be an integral part of the drawer front assembly. Each drawer front is injected with 1.87" of high density polyurethane foam between the exterior and interior. Handles are recessed black plastic and held in with a positive lock system.
Freight Note
Mechanical housing location
Drawer warranty
Door & drawer options
