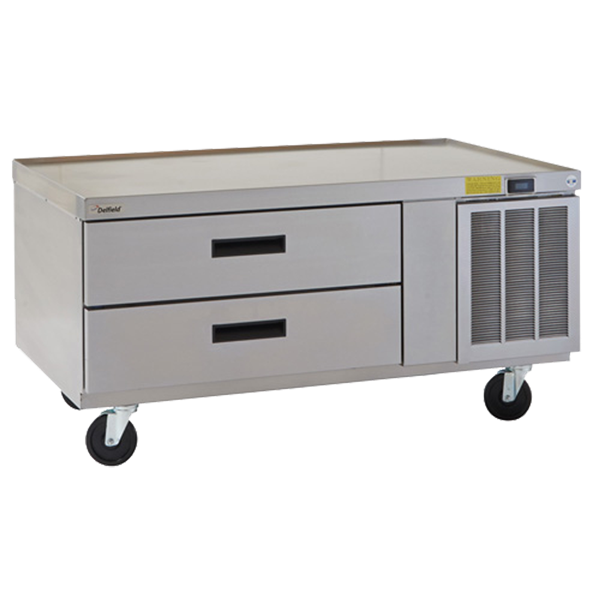

Delfield F2956CP Refrigerated Low-Profile Equipment Stand

Delfield F2956CP Refrigerated Low-Profile Equipment Stand
Free Freight
Price $7,134

for more information

Price $5,189

You will earn 5,189 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $130.14/mo.

  • 2019 model, meets the newest EPA and DOE codes.

Width (in)56.25
Height (in)26.00
Depth (in)31.00
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Refrigerated Low-Profile Equipment Stand, 56-1/4" W, Casters, Single-section, ABS Interior sides , Front non-spill edge, (2) Drawers (pans not included), Stainless steel top & drawer fronts, Side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, 1/5 hp, cUL, UL, NSF

Standard Features:
  • Digital thermometer
  • Mounted on casters
  • 8' cord and plug supplied
  • Standard stainless steel ends
  • Wall-mounted bracket to prevent tipping
  • Exterior drawer fronts are stainless steel
  • Snap-in drawer gaskets for easy removal
  • Environmentally friendly R290 refrigerant
  • Height of surface for setting equipment is 25.50"
  • Top is heavy duty stainless steel, with full perimeter marine edge
  • Interior refrigerated base cabinet section to maintain 36° to 40° meeting NSF7
  • Three year parts and labor warranty and an additional two year compressor parts warranty.
  • When ordering, specify make, model and depth of cooking equipment sitting on the equipment stand
  • Base interior cabinet is cooled with mullion style coated blower coil(s) mounted between each door/drawer section for even air and
  • temperature control
  • High density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam insulation throughout unit
  • Full Extension Plus Drawer system is a complete drawer system. Drawer system is sized to hold 12" x 20" x 4" deep hotel pans (by
  • others). The drawer system is all stainless steel construction for maximum durability
Options & Accessories
  • Drawer locks
  • Stainless steel back
  • Plastic laminate end
  • Plastic laminate front
  • Plastic laminate back
  • 6" casters in lieu of 4"
  • Mechanical housing left side
  • Doors in lieu of drawers (except 32")
  • Celsius readout for electronic control
  • 6.12" adjustable full stainless steel legs and bullet feet
  • Single drawer in lieu of two high drawers  (8" deep pans)
  • Remote refrigeration available in R404A (contact factory)
  • 8" deep clear polycarbonate pans in full, 1/2 and 1/3 size dimensions available
Exterior top is 18-gauge stainless steel with full perimeter marine edge. Corners are fully welded with smooth radii corners for easy clean out. Interior sub-top made of 22-gauge 2BF stainless steel is made integral with the top by injecting 2.00” of high density polyurethane foam between the exterior and interior tops. Refrigerated base interior back and bottom are constructed of a 22-gauge 2BF stainless steel. Exterior bottom and back are made of 22-gauge galvanized steel. Exterior sides aer made of stainless steel. Both left and right interior sides are formed of ABS plastic. The base is injected with 2.00” of high density polyurethane foam between the exterior and interior. Refrigerated base fronts are made of .095” thick ABS thermoformed plastic and backed up by ridged polyurethane water blown injection molded frames. The frames are an excellent thermo-break and superior structural material for fastening doors and drawers. Finished stainless steel ends are standard. Louver, coil panel and drawer faces are all standard with stainless steel construction. Units are supplied with wallmounted bracket and threaded rod to allow installation of the unit against a solid surface. Full Extension Plus drawer system is a complete drawer system, which can operate independent of the unit it’s installed in. Drawer system is sized to hold 12” x 20” x 4” deep hotel pans and smaller fractional pans. Drawer system is all stainless steel construction for maximum durability. Drawer track rollers are made of Delrin and do not require grease for operation. Intermediate tracks are removable without tools and house Delfield’s “anti-friction binary roller system”. Drawer boxes are designed with “easy pan grip flanges”. Tracks are designed with a stay shut feature that holds the drawer gasket tight to the base front on uneven floors. Exterior drawer fronts are made of stainless steel; and an interior made of ABS plastic with formed in channels to house the snap-in dart style santoprene gasket. A galvanized brace is foamed in place to be an integral part of the drawer front assembly. Each drawer front is injected with 1.87” of high density polyurethane foam between the exterior and interior. Handles are recessed black plastic and held in with a positive lock system. Drawers are backed by a 10-year warranty on the track assembly. Unit is supported with two 14-gauge leg rails that run the entire length of the unit. Leg rails are welded to the bottom side of the unit and are tied together with two 12-gauge braces running front to back. Caster/leg boxes are welded inside the leg rail and 4” casters are mounted standard. Refrigeration system uses R290 refrigerant, and maintains 36˚F (2˚C) to 40˚F (4˚C) interior cabinet temperature at 100˚F (38˚C) ambient room temperature. Interior cabinet is cooled with mullion style blower coils (coated) mounted between each door/drawer section for even air and temperature control. An electronic temperature control and pre-wired condensing unit with hot gas condensate evaporator are installed in the machine compartment. The digital Thermometer with stainless steel guard is located in the Top nosing above the machine compartment (standard on right).
Caster or legs
Mechanical housing location
Drawer warranty
Door & drawer options
