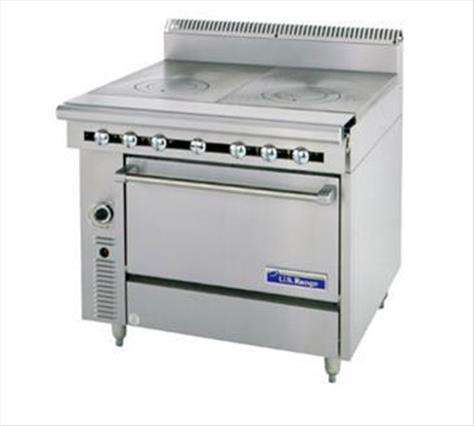

Garland/US Range Garland US Range C0836-11M Cuisine Series Heavy Duty Range
|Range Configuration||Hot Top|
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- 100% safety oven pilot
- 40,000 BTU oven burner
- Fully insulated oven interior
- 1-1/4" NPT front gas manifold
- Stainless steel front and sides
- Full-range burner valve control
- 6" (152mm) chrome steel adj. legs
- 6" (152mm) H stainless steel stub back
- Can be connected individually or in a battery
- Stainless steel front rail w/ position adjustable bar
- Chrome plated rack with four positions, 1 per oven
- Oven thermostat control - 150°-500°F (66°-260°C)
- 18" (457mm) front fired hot top section 37,500 BTUs
- 18" (457mm) even heat hot top section, 32,500 BTUs
- Removable lids and rings on front fried hot top section
- Stainless steel oven interior w/ removable porcelain bottom
- Note: Range-based convection oven models can be located in the middle of a battery, banked back-to-back with other equipment, and can be positioned against a wall
- Extra oven rack
- Stainless steel back
- Flanged feet set of four
- Stainless steel legs (set of four)
- Stainless steel burner box top interior
- Modular unit w/ legs & shelf (suffix M)
- Range base convection oven (add RC)
- Gas regulator: 3/4"- 1 1/4" NPT (Specify)
- Single or double deck high shelf or back riser
- Stainless steel door(s) for cabinet base units
- Stainless steel intermediate shelf for cabinet base
- Gas shut-off valves – 3/4", 1", 1 1/4" NPT (Specify)
- Continuous plate shelf, 48-72" for battery installations
- Gas flex hose w/ quick disconnect 3/4", 1", 1 1/4" (Specify)
- Porcelain oven interior in lieu of stainless steel interior - NC
- Modular unit w/o legs on Refrig. Base (change suffix M to PC)
- Set of (4)polyurethane non-marking swivel casters w/front brakes.
- Rear Gas Connection:, 3/4" NPT (max 250,000 BTU’s) or 1-1/4" NPT
U.S. Range Cuisine 36" (914mm) wide Heavy Duty Range Series. Stainless steel front and sides. 6" (152mm) legs with adjustable feet. Ovens - One piece oven door. Stainless steel oven interior with a heavy- duty, “keep-cool” door handle. Standard oven comes with a thermostat with a temperature range from 150° (low) to 500°F (66°-260°C). One chrome plated oven rack for standard ovens and three for convection ovens. 18" (457mm) Section Front-Fired Hot Tops - 12,500 BTU/hr each burner with three per section. 18" (457mm) Section Even Heat Hot Tops - 32,500 BTU/hr each burner with one per plate. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
