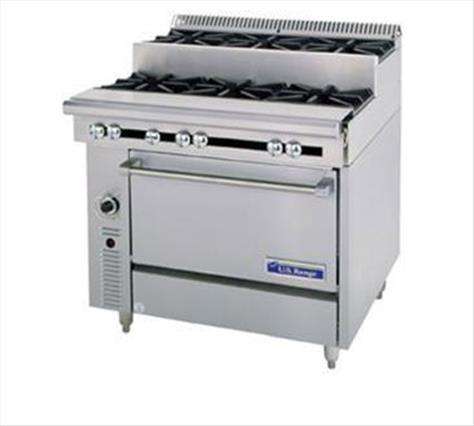

Garland/US Range Garland US Range C0836-6SU Cuisine Series Heavy Duty Range

C0836-6SU
Garland/US Range Garland US Range C0836-6SU Cuisine Series Heavy Duty Range
Free Freight
Price $3,592

You will earn 4,434.65 Reward Points.

You will earn 3,592 Reward Points.

FINANCEFOR $90.09/mo.

PayPal CREDIT
  • Additional required flue riser sold separately
Specs
BrandGarland/US Range
Quantity of Burners6
Legs6" adjustable legs
BaseCabinet
Gas TypeLP
HeatGas
Range ConfigurationBurners
Width (in)36.00
Height (in)42.00
Depth (in)39.38
Weight361.00
You May Also Need


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
Cuisine Series Heavy Duty Range, gas, 36", (3) 30,000 BTU open burners, (3) 30,000 BTU step-up open burners, cabinet base, 6" backguard, stainless steel front & sides, 6" adjustable legs, 180,000 BTU , CSA Flame, CSA Star, NSF (US Range)

Standard Features:
  • 100% safety oven pilot
  • 40,000 BTU oven burner
  • Fully insulated oven interior
  • 1-1/4" NPT front gas manifold
  • Stainless steel front and sides
  • One-piece cast iron top grates
  • 6" (152mm) chrome steel ad. legs
  • 6" (152mm) high stainless steel stub back
  • Can be installed individually or in a battery
  • 30,000 BTU open burners with center pilot
  • Stainless steel front rail w/ position adjustable bar
  • Oven thermostat control - 150°-500°F (66°- 60°C)
  • Chrome plated rack with four positions, 1 per oven
  • Stainless steel oven interior w/ removable porcelain bottom
  • Note: Range-based convection oven models can be located in the middle of a battery, banked back-to-back with other equipment, and can be positioned against a wall
Optional Features:
  • Extra oven rack
  • Stainless steel back
  • Stainless steel legs (set of four)
  • Stainless steel burner box top interior
  • Range base convection oven (add RC)
  • Gas regulator: 3/4"- 1 1/4" NPT (Specify)
  • Modular unit with legs and shelf (suffix M)
  • Stainless steel door(s) for cabinet base units
  • Single or double deck high shelf or back riser
  • Stainless steel intermediate shelf for cabinet base
  • Gas shut-off valves – 3/4", 1", 1 1/4" NPT (Specify)
  • Continuous plate shelf, 48-72" for battery installations
  • Flanged feet (for fastening unit to the floor) Set of four
  • Gas flex hose w/ quick disconnect 3/4", 1", 1 1/4" (Specify)
  • Porcelain oven interior in lieu of stainless steel interior – NC
  • Modular unit w/o legs on Refrig. Base (change suffix M to PC)
  • Set of (4)polyurethane non-marking swivel casters w/front brakes
  • Rear Gas Connection:, 3/4" NPT (max 250,000 BTU’s) or 1-1/4" NPT
Specifications:
U.S. Range Cuisine 36" (914mm) wide Heavy Duty Range Series. Stainless steel front and sides. 6" (152mm) legs with adjustable feet. Ovens - One piece oven door. Stainless steel oven interior with a heavy- duty, “keep-cool” door handle. Standard oven comes with a thermostat with a temperature range from 150° (low) to 500°F (66°-260°C). One chrome plated oven rack for standard ovens and three for convection ovens. Open Burners - 30,000 BTU/hr per burner with center pilot and a one piece, cast iron top grate over two open burners. NOTE: Ranges supplied with casters must be installed with an approved restraining device.

Options
Burner Box
Standard parts/labor warranty
Gas connection
Stainless steel options
Extended warranty
Gas type
Mounting options
