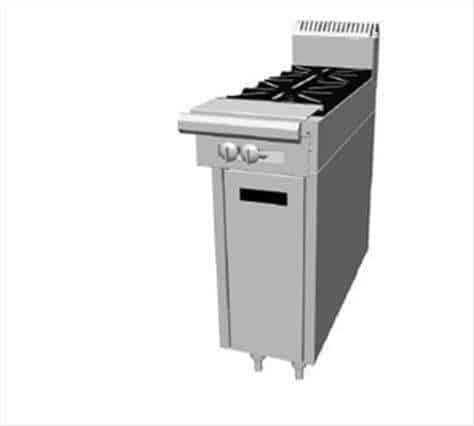

Garland/US Range Garland US Range C1836-10M Cuisine Series Heavy Duty Range
|Range Configuration||Hot Top|
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- 18' (457mm) wide
- 30,000 BTUs per burner
- Removable lids and rings
- 1" (25mm) thick steel plate
- Two per 18" (457mm) width
- Full-range valve control (-1)
- 1-1/4" NPT front gas manifold
- Stainless steel front and sides
- One piece cast iron top grates
- Three (3) 12,500 BTU Burners
- Cabinet base or modular (suffix M)
- 6" (152mm) H stainless steel stub back
- Removable drip pan Hot Top (C1836-9)
- Can be installed individually or in a battery
- Griddle control Low to 500°F (260°C) (-1-1)
- 30,000 BTU burners Open Burners (C1836-7)
- Stainless steel front rail w/ position adjustable bar
- 6" (152mm) chrome steel adj. legs Griddle Top (C1836-1)
- 18" (457mm) Hot top - one 32,500 BTU burner per plate Front Fired Hot Top (C1836-10)
- Stainless steel back
- Flanged feet set of four
- Swivel casters (4) w/ front locking
- Grooved griddle - (12"W sections)
- Stainless steel burner box top interior
- Gas regulator: 3/4"- 1 1/4" NPT (Specify)
- Stainless steel door for cabinet base units
- Single or double deck high shelf or back riser
- Casters w/ polyurethane wheels – non-marking
- Stainless steel intermediate shelf for cabinet base
- Gas shut-off valves - 3/4", 1", 1 1/4" NPT (Specify)
- Gas flex hose w/ quick disconnect 3/4", 1", 1 1/4" (Specify)
- Modular unit for Refrigerated Base (change suffix M to PC)
- Modular unit (suffix M) (Stand w/ shelf or for counter mount)
- Rear Gas Connection:, 3/4" NPT (max 250,000 BTU’s) (not available on model C1836-10)
U.S. Range Cuisine Series Add-A-Unit. Stainless steel finish & 6" (152mm) legs w/adjustable feet. Open Burners - 30,000 BTU/hr per burner with center pilot and a one piece, cast iron top grate over two open burners. Griddles - 1" (25mm) thick steel plate with 3” (76mm) wide grease trough. Burners rated 30,000 BTU/hr each. One burner per 12" (305mm) section. Hot Top - 12" (305mm) section rated 25,000 BTU per plate. Front Fired Hot Tops - 12,500 BTU, 3 burners per 18" (457mm) section. NOTE: Units suppled with casters must be installed with an approved restraining device.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
