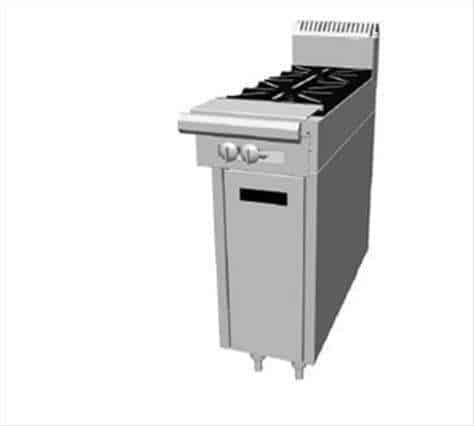

Garland/US Range Garland US Range C1836-7M Cuisine Series Heavy Duty Range

C1836-7M
Garland/US Range Garland US Range C1836-7M Cuisine Series Heavy Duty Range
Free Freight
Price $1,820

FINANCEFOR $45.65/mo.

PayPal CREDIT
  • Additional required flue riser sold separately
Specs
BrandGarland/US Range
Quantity of Burners2
BaseModular
Gas TypeLP
HeatGas
Range ConfigurationBurners
Width (in)18.00
Height (in)10.00
Depth (in)38.00
Weight227.00
You May Also Need


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
Cuisine Series Heavy Duty Range, gas, 18", modular, Add-A-Unit, (2) 30,000 BTU burners, stainless steel front, sides & backguard, 60,000 BTU , CSA Flame, CSA Star, NSF (US Range)

Standard Features:
  • 18' (457mm) wide
  • 30,000 BTUs per burner
  • Removable lids and rings
  • 1" (25mm) thick steel plate
  • Two per 18" (457mm) width
  • Full-range valve control (-1)
  • 1-1/4" NPT front gas manifold
  • Stainless steel front and sides
  • One piece cast iron top grates
  • Three (3) 12,500 BTU Burners
  • Cabinet base or modular (suffix M)
  • 6" (152mm) H stainless steel stub back
  • Removable drip pan Hot Top (C1836-9)
  • Can be installed individually or in a battery
  • Griddle control Low to 500°F (260°C) (-1-1)
  • 30,000 BTU burners Open Burners (C1836-7)
  • Stainless steel front rail w/ position adjustable bar
  • 6" (152mm) chrome steel adj. legs Griddle Top (C1836-1)
  • 18" (457mm) Hot top - one 32,500 BTU burner per plate Front Fired Hot Top (C1836-10)
Optional Features:
  • Stainless steel back
  • Flanged feet set of four
  • Swivel casters (4) w/ front locking
  • Grooved griddle - (12"W sections)
  • Stainless steel burner box top interior
  • Gas regulator: 3/4"- 1 1/4" NPT (Specify)
  • Stainless steel door for cabinet base units
  • Single or double deck high shelf or back riser
  • Casters w/ polyurethane wheels – non-marking
  • Stainless steel intermediate shelf for cabinet base
  • Gas shut-off valves - 3/4", 1", 1 1/4" NPT (Specify)
  • Gas flex hose w/ quick disconnect 3/4", 1", 1 1/4" (Specify)
  • Modular unit for Refrigerated Base (change suffix M to PC)
  • Modular unit (suffix M) (Stand w/ shelf or for counter mount)
  • Rear Gas Connection:, 3/4" NPT (max 250,000 BTU’s) (not available on model C1836-10)
Specifications:
U.S. Range Cuisine Series Add-A-Unit. Stainless steel finish & 6" (152mm) legs w/adjustable feet. Open Burners - 30,000 BTU/hr per burner with center pilot and a one piece, cast iron top grate over two open burners. Griddles - 1" (25mm) thick steel plate with 3” (76mm) wide grease trough. Burners rated 30,000 BTU/hr each. One burner per 12" (305mm) section. Hot Top - 12" (305mm) section rated 25,000 BTU per plate. Front Fired Hot Tops - 12,500 BTU, 3 burners per 18" (457mm) section. NOTE: Units suppled with casters must be installed with an approved restraining device.

Options
Burner Box
Standard parts/labor warranty
Gas connection
Extended warranty
Gas type
