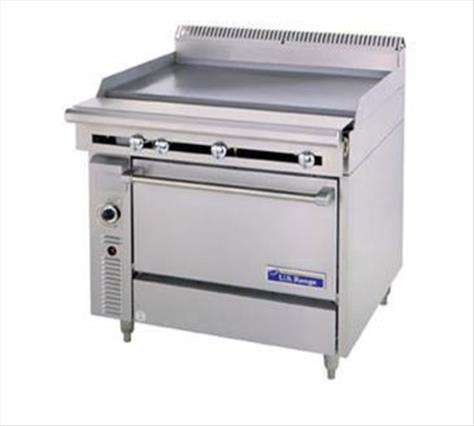

Garland/US Range Garland US Range C836-5 Cuisine Series Heavy Duty Range

Garland/US Range Garland US Range C836-5 Cuisine Series Heavy Duty Range
Free Freight
Price $4,515

FINANCEFOR $113.24/mo.

  • Additional required flue riser sold separately
BrandGarland/US Range
Legs6" adjustable legs
Exterior FinishStainless Steel Front & Sides
BaseStandard Oven
Gas TypeLP
Range ConfigurationGriddle
Width (in)36.00
Height (in)42.00
Depth (in)39.38
You May Also Need

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Cuisine Series Heavy Duty Range, gas, 36", (1) 18" griddle, 1" thick steel plate, manual controls - left, (1) 18" even heat hot top - right, standard oven, includes (1) rack, 6" backguard, stainless steel front & sides, 6" adjustable legs, 102,500 BTU , CSA Flame, CSA Star, NSF (US Range)

Standard Features:
  • 100% safety oven pilot
  • Stainless front and sides
  • 40,000 BTU oven burner
  • Fully insulated oven interior
  • 1 1/4" NPT front gas manifold
  • 6"(152mm) chrome steel adj. legs
  • 6" (152mm) high stainless steel stub back
  • Can be connected individually or in a battery
  • One chrome plated rack per oven - four positions
  • Stainless steel front rail w/ position adjustable bar
  • Oven thermostat control - 150°-500°F (66°-260°C)
  • Stainless steel oven interior w/ removable porcelain bottom
  • 30,000 BTU open burners with center pilot and one-piece cast iron top grates (-4, -4-1) •32,500 BTU per 18"(457mm) hot top section (-5, -5-1)
  • Griddle top with 1" (25mm) thick steel plate, with either full-range valve control (-4 and -5 )or embedded thermostat sensor bulb Low to 500F (260C) (-4-1 and -5-1)
  • Note: Range-based convection oven models can be located in the middle of a battery, banked back-to-back with other equipment, and can be positioned against a wall
Optional Features:
  • Extra oven rack
  • Stainless steel back
  • Flanged feet set of four
  • Stainless steel legs (set of four)
  • Grooved griddle - (12"W sections)
  • Stainless steel burner box top interior
  • Range base convection oven (add RC)
  • Gas regulator: 3/4"- 1 1/4" NPT (Specify)
  • Stainless steel door(s) for cabinet base units
  • Single or double deck high shelf or back riser
  • Stainless steel intermediate shelf for cabinet base
  • Gas shut-off valves - 3/4", 1", 1 1/4" NPT (Specify)
  • Continuous plate shelf, 48-72" for battery installations
  • Gas flex hose w/ quick disconnect 3/4", 1", 1 1/4" (Specify)
  • Porcelain oven interior in lieu of stainless steel interior – NC
  • Set of (4) polyurethane non-marking swivel casters w/ front brakes.
  • Rear Gas Connection:, 3/4" NPT (max 250,000 BTU’s) or 1-1/4" NPT
  • Modular unit with legs and shelf (suffix M) or w/o legs on Refrig. Base (change suffix M to PC)
  • U.S. Range Cuisine 36" (914mm) wide Heavy Duty Range Series. Stainless steel front and sides. 6" (152mm) legs with adjustable feet.
  • 18" (457mm) Section Hot Tops - 32,500 BTU/hr each burner with one per place.
  • Open Burners - 30,000 BTU/hr per burner with center pilot. A one piece, cast iron top grate covers two open burners.
  • Griddle Tops - 1” (25mm) thick steel plate griddle with 3" (76mm) wide grease trough. Burners rated 30,000 BTU/hr each. One burner per 12” (305mm) section.
  • Ovens - One piece oven door. Stainless steel oven interior with a heavy- duty, “keep-cool” door handle. Standard oven comes with a thermostat with a temperature range from 150° (low) to 500°F (66°-260°C). One chrome plated oven rack for standard ovens and three for convection ovens.
  • NOTE: Ranges supplied with casters must be installed with an approved restraining device.
