Garland/US Range Garland US Range GD-24RB Designer Series Charbroiler

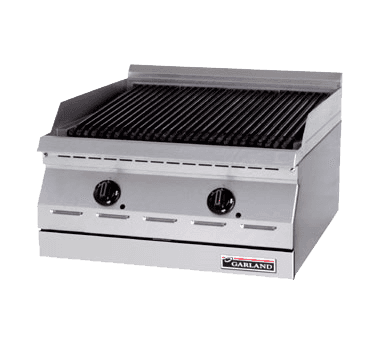

Photo of the Garland US Range GD-24RB Designer Series Charbroiler
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- Easy clean design
- Cast iron radiants
- Hi-Lo control valve
- Piezo spark ignition
- Natural or propane gas
- 4" (102mm) Sanitary legs
- Stainless steel front and sides
- 18" (457mm) deep cooking surface
- Rear gas connection w/pressure regulator
- 45,000, 60,000, 75,000 or 90,000 BTU total input
- "CE" approved models are equipped with Flame-Failure protection and have suffix "FF"
- Stainless steel back and bottom
- Removable stainless steel 3-piece broiler splatter guard specify width. Shield will add 10" height around top section of broiler. Note : Stands are available see form # CS24/CSD
Gas designer series broilers in four widths; models GD-18RB 18" (460mm) wide GD-24RB 24"(610mm) wide GD-30RB 30" (760mm wide) and GD-36RB 36" (914mm) wide. Designed as free standing or to be banked with other GD series equipment. 24" (610mm) deep x 15" (381mm) high, easy clean design with stainless steel front and sides, cast iron radiants, and optional broiler splatter shield. Hi-Lo valve controlled, piezo spark ignition, natural or propane gas, 45,000, 60,000, 75,000 and 90,000 BTU. "CE" approved models are equipped with Flame-Failure protection and have suffix "FF".
