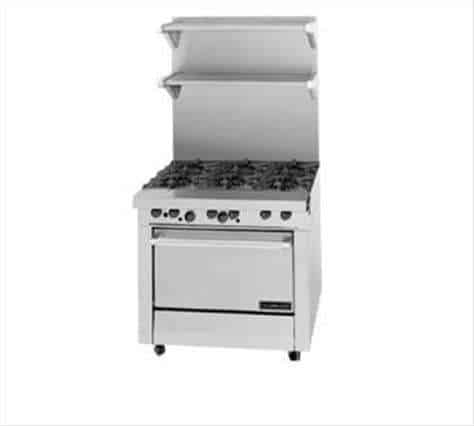

Garland/US Range Garland US Range M43-3R Master Series Heavy Duty Range
|Range Configuration||Hot Top|
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- Piezo spark ignition for oven
- Fully porcelainized oven interior
- Stainless steel front and sides.
- Stainless steel burner box bottom
- One piece stainless steel drip tray
- 6" (152mm) chrome steel adj. legs
- 7‑1/2" (191mm) stainless steel front rail
- Removable cast iron top and ring grates
- Separate control valves for each burner
- 40,000 BTU (11.72kW) Nat., 35,000 BTU (10.25kW) Pro., cast iron oven burner.
- Two, 24,000 BTU (7kW) Natural, 20,000 BTU (5.86kW) Propane Starfire Burners per section
- Extra heavy duty cast iron even heat hot top sections with "H" burners, 22,000 BTU (6.45kW) each
- Additional oven rack
- Stainless steel main back
- Gas regulator 3/4" or 1-1/4"
- Stainless steel oven interior
- End caps and cover (NC specify)
- 6" (152mm) stainless steel adj. legs
- Dais base (not for use with RC oven)
- Celsius dial for oven thermostat (NC)
- Gas shut off valve; 3/4", 1" or 1-1/4" NPT
- Rear gas connection, 3/4", 1" or 1-1/4" NPT
- 230 volt, 50 cycle components, RC motor (export)
- Storage base shelf of aluminized or stainless steel
- Stainless steel tubular high shelf, single or double deck
- Convection oven base, add C to model #, e.g. M43-1RC
- Stainless steel equipment stand option for modular top models.
- Set of (4) Polyurethane non-marking swivel casters w/front brakes
- Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm)
- Stainless steel common front rail up to 102" (2591 mm) wide (two or more units in a battery)
- Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/restraining device, please specify
Heavy duty gas range with oven, open burners and hot top sections combined. Hot top sections each 11-5⁄16" (286mm) wide cast iron even heat, 22,000 BTU (6.45kW). Open top Starfire burners, 24,000 BTU (7.0kW) each, two burners per section with removable cast iron top and ring grates. Range body is 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with cast iron oven burner. Stainless steel front and sides. Natural or propane gas. Models available with oven base sections (suffix R) storage base with cabinet door (suffix S), or modular top units (suffix T). NOTE: Ranges supplied with casters must be installed with an approved restraining device.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
