Garland/US Range Garland US Range M44T Master Series Heavy Duty Range

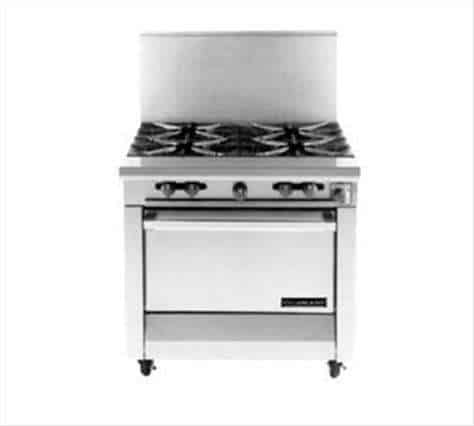

Photo of the Garland US Range M44T Master Series Heavy Duty Range
|Quantity of Burners||4|
|Exterior Finish||Stainless Steel Front & Sides|
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- Cast iron top grates
- Piezo spark ignition for oven
- Stainless steel front and sides
- Fully porcelainized oven interior
- 6" (152mm) chrome steel adj. legs
- One‑piece Stainless Steel drip tray
- 7-1/2" (191mm) stainless steel front rail
- Storage base interior of aluminized steel
- Removable ring grate bowl over each burner
- 40,000 BTU, (11.72 kW) natural gas or 35,000 BTU (10.25kW) propane, cast iron oven burner
- Four 35,000 BTU, (10.25 kW), (natural gas) or 32,000 BTU (9.37kW) (propane), two piece Starfire burners with removable heads
- Stainless steel main back
- Stainless steel oven interior
- Gas regulator 3/4" or 1-1/4"
- End caps and cover, NC specify
- 6" (152mm) stainless steel adj. legs
- Celsius dial for oven thermostat (NC)
- Dais base (not for use with “RC” oven)
- Gas shut off valve; 3/4", 1" or 1-1/4" NPT
- 230 volt, 50 cycle components, RC motor (export)
- Storage base shelf of aluminized or stainless steel
- Stainless steel tubular high shelf, single or double deck
- Convection oven base, add C to Model No., e.g. M44RC
- Additional oven rack Rear gas connection, 3/4" or 1" NPT
- Set of (4) Polyurethane non‑marking swivel casters w/front brakes
- Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm)
- Stainless steel common front rail up to 102" (2591mm) wide (two or more units in a battery)
- Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/ restraining device, please specify
Heavy‑duty gas range with oven, Model M44R. Four 35,000 BTU, (10.25 kW), two‑piece Starfire burners. Heavy‑duty cast iron top grates and ring grates. 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72 kW) cast iron oven burner. Stainless steel front and sides. 180,000 BTU total. (52.74 kW). Natural or propane gas. Also available with storage base w/doors, suffix S, and modular top, suffix T. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
