Garland/US Range Garland US Range M54T Master Series Heavy Duty Range
Garland US Range M54T Master Series Heavy Duty Range
- Additional required flue riser sold separately
|Quantity of Burners||2|
|Exterior Finish||Stainless Steel Front & Sides|
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- Cast iron top grates
- Piezo spark ignition for oven.
- Stainless steel front and sides
- Fully porcelainized oven interior
- One piece stainless steel drip tray
- 6" (152mm) chrome steel adj. legs
- 7-1/2" (191mm) stainless steel front rail
- Removable ring grate bowl over each burner
- One heavy duty cast iron front‑fired top on left
- 40,000 BTU (11.72kW) natural gas, 35,000 BTU (10.25kW) propane gas cast iron oven burner
- Two 35,000 BTU (10.25kw), natural or 32,000 BTU (9.37kW) 2- piece Starfire burners with removable heads
- Removable cast iron ring and lid with three burners; 45,000 BTU (13.18kw) natural or 33,000 BTU (9.66kW) propane gas total
- Stainless steel back
- Additional oven rack
- Stainless steel oven interior
- Gas regulator 3/4" or 1-1/4"
- Hot top section on right - specify
- End caps and cover (NC, specify)
- Celsius dial for oven thermostat (NC)
- Gas shut off valve; 3/4", 1" or 1-1/4" NPT
- 230 volt, 50 cycle components, RC motor (export)
- Storage base shelf of aluminized or stainless steel.
- Convection oven base, add C to model #, e.g. M54RC
- Stainless steel tubular high shelf, single or double deck
- Set of (4) Polyurethane non-marking swivel casters (4) w/ front brakes
- Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm)
- 6" (152mm) stainless steel adj. legs Dais base (not for use with "RC" oven)
- Stainless steel common front rail up to 102" (2591mm) wide (two or more units in a battery)
- Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/restraining device, please specify
- Rear gas connection 3/4", 1" or 1-1/4" NPT, left or right mount add 5-1/4" (133mm) to exterior range width

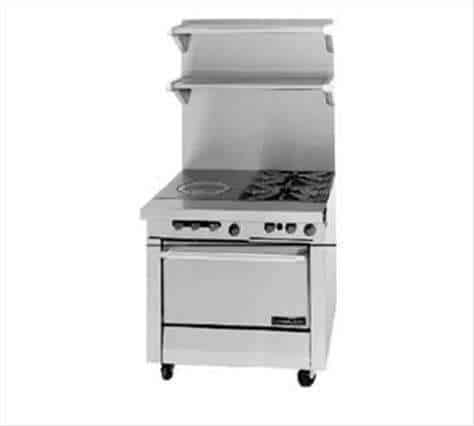

Heavy duty gas range with oven, Model M54R, combination top consisting of one 17" (432mm) wide front fired spectro-heat hot top, 45,000 BTU (13.2kW) on left and two 35,000 BTU (10.25kw) StarFire open burners. Heavy duty cast iron top grates/ring grates. 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven with 40,000 BTU,(11.72kw), cast iron oven burner. Stainless steel front and sides. Natural or Propane gas. Also available with storage base w/ doors, suffix S, and modular top, suffix T. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
