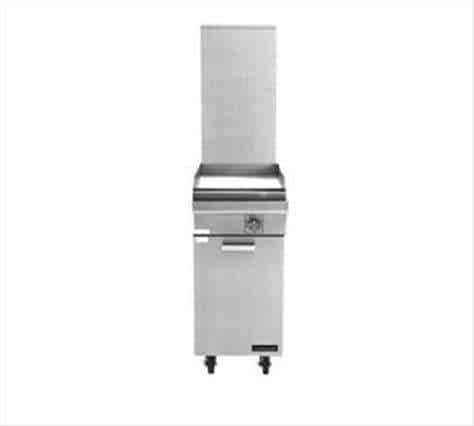

Garland/US Range Garland US Range M8T Master Series Heavy Duty Range
|Exterior Finish||Stainless Steel Front & Sides|
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- Stainless steel door
- Stainless steel front and sides
- Storage base interior of aluminized steel
- 6" (152mm) chrome steel adjustable legs
- Removable stainless steel grease drawer
- Aluminized steel under all cooking, surfaces
- Clip on stainless steel backsplash for griddle plate
- Thermostat control with embedded capillary line sensors
- 2-5/16" (59mm) high welded stainless steel splash guards, sides back
- 1" (25mm) thick Steel griddle plate with 33,000 BTU, (9.67 kW), "H" type burner
- Dais base (S model)
- Modular stand, (T model)
- Stainless steel main back
- Gas regulator 3/4" or 1-1/4"
- End caps and cover (NC, specify)
- Rear gas connection, 3/4" or 1" NPT
- Celsius dial for griddle thermostat (NC)
- Gas shut off valve; 3/4", 1" or 1- 1/4" NPT
- 6" (152mm) stainless steel adjustable legs
- Fully grooved griddle, (or grooved section)
- Stainless steel tubular high shelf, single or double deck
- Set of (4) Polyurethane non‑marking swivel casters w/front brakes
- Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm) H
- Stainless steel common front rail up to 102" (2591mm) wide (two or more units in a battery)
- Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/restraining device, please specify
The 1" (25mm) thick steel griddle plate is 17" wide x 24-3/4" deep, (433mm x 629mm) and bordered by side and rear continuous-welded stainless steel splash guards. The 33,000 BTU, (9.67 kW), "H" burner controlled by a thermostat provides uniform heat. Heavy gauge aluminized steel radiation baffle requires no fire brick, heats evenly, increases thermal efficiency. Natural or propane gas, Model M8T. NOTE: Attachments supplied with casters must be installed with an approved restraining device.
