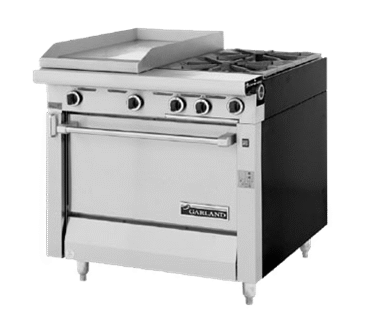

Garland/US Range Garland US Range MST42-6S-E Master Sentry Series Heavy Duty Range

Garland/US Range Garland US Range MST42-6S-E Master Sentry Series Heavy Duty Range
Free Freight
Price $4,293

You will earn 5,300.35 Reward Points.

You will earn 4,293 Reward Points.

FINANCEFOR $107.67/mo.

  • Additional required flue riser sold separately
BrandGarland/US Range
Quantity of Burners2
Exterior FinishStainless Steel Front & Sides
Gas TypeLP
Range ConfigurationBurners
Width (in)34.00
Height (in)36.38
Depth (in)38.00
You May Also Need

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Master Series Heavy Duty Range, gas, 34", (2) 35,000 BTU open burners, (1) 17" even heat hot top, storage base, electric ignition & flame fail all burners, stainless steel front & sides, 6" legs, 100,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)

Standard Features:
  • Cast iron top grates
  • Piezo Spark ignition for oven
  • Stainless steel front and sides
  • Fully porcelainized oven interior
  • 6" (152mm) chrome steel adj. legs
  • 7-1/2" (191mm) stainless steel front rail
  • Stainless steel drip tray under open burners
  • Sentry total flame failure protection for all burners
  • Removable ring grates over each open top burner
  • Electric Spark ignition on all pilots Suffix -E models
  • Heavy gauge aluminized steel radiation baffle shield
  • 40,000 BTU (11.72kW) natural gas, 35,000 BTU (10.25kW propane gas cast iron oven burner
  • 17" (432mm) wide even heat plate on left, w/ one 27,000 BTU (7.90kW) "H" type burner controlled by Hi-lo valve
  • Two (2), 2-piece Starfire open burners w/removable heads rated 30,000 BTU (8.78kW) CE approved or 35,000 BTU (10.25kW) CSA approved models, (natural or propane gas)
Optional Features:
  • Additional oven rack
  • Stainless steel main back
  • Gas regulator 3/4" or 1-1/4"
  • Stainless steel oven interior
  • End caps and cover (NC, specify)
  • 6" (152mm) stainless steel adj. legs
  • Celsius dial for oven thermostat (NC)
  • Corner columns for banking  - specify
  • Dais base (not for use with "RC" oven)
  • Gas shut off valve; 3/4", 1" or 1-1/4" NPT
  • Rear gas connection, 3/4", 1" or 1-1/4" NPT
  • Storage base shelf of aluminized or stainless steel
  • Stainless steel tubular high shelf, single or double deck
  • Convection oven base, add C to model #, e.g. M42-6RC
  • Stainless steel backguard: 10" (354mm), 17" (432mm) or 33" (838mm)
  • 230 volt, 50 cycle components, RC motor and/or electric ignition (export)
  • Set of (4) Polyurethane non-marking swivel casters w/front brakes. casters w/ front brakes
  • Stainless steel common front rail up to 102" (2591 mm) wide, (two or more units in a battery)
  • Gas flex hose & quick disconnect (3/4", 1" or 1-1/4" NPT x 5') w/restraining device, please specify
Heavy-duty gas range with oven, Model MST42-6R, combination top. One 17" (432mm) wide even hot top, 27,000 BTU (7.90kW) on left and two 30,000 BTU (8.78kW) Starfire open burners. Sentry total flame failure protection for all burners Heavy duty cast iron top grates/ring grates 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72kW) cast iron oven burner. Stainless steel front and sides. Natural or propane gas available. Also available with storage base w/ doors, suffix S, and modular top, suffix T. NOTE: Ranges supplied with casters must be installed with an approved restraining device.

Common front rail
Gas connection
Range finishes
Standard parts/labor warranty
Electronic ignition voltage
Factory note
Extended warranty
Gas type
Mounting options
