Glastender ALL-72-CP10 All-In-One Underbar Ice Bin/Cocktail Station

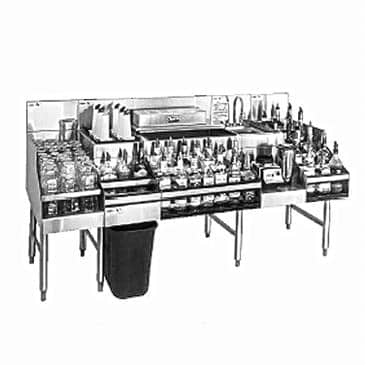

Photo of the Glastender ALL-72-CP10 All-In-One Underbar Ice Bin/Cocktail Station
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- All stainless steel construction
- Ten circuit cold plates available in Combo Ice Bin
- Combines many different underbar components into one reassembled unit.
- A stainless steel side splash is included between the wet waste sink and ice bin
- Tubing chase available centered in ice bin backsplash. Specify accessory model #TC-BS.
- Recessed Drainboards and Liquor Displays are included with some models (see spec pages 3.10 and 3.23)
- Combo Ice Bin, Single Wet Waste Sink with faucet and Blender Shelf, Condiment Dispenser, Double Speed Rail, Dry Waste Chute, and Towel Ring standard on all models (see spec pages 3.04, 3.21, 3.32, and 3.26)
- Bottle well: 1-1/2″ tailpiece
- Ice bin: Models without cold plate - 1-1/2" tailpiece. Models with ten circuit cold plate - 3/4″ MPT
- Drainboard, Wet Waste Sink, and Recessed Drainboard (if applicable): 1-1/2″ I.P.S. Threaded drain will fit. Dearborn part #8033 slipnut and part #W-573P washer.
- Tubing Chase in Backsplash (Optional)
- 2-3/8″ by 4″ hole centered in ice bin backsplash
- 4″ centers, accepts 3/8″ sink leads, hot and cold water connections required
- Sink Bowl Dimensions
- 11-1/2″ long by 9-1/4″ wide by 6″ deep
- Sink Strainer
- Perforated plastic
- Stainless steel bullet feet
- 1-5/8″ diameter 16 gauge stainless steel
- 18 gauge stainless steel parts include: side splash
- 20 gauge stainless steel parts include: all components unless otherwise noted
- 14 gauge stainless steel parts include: recessed drainboard end, speed rail ends, and liquor display ends
