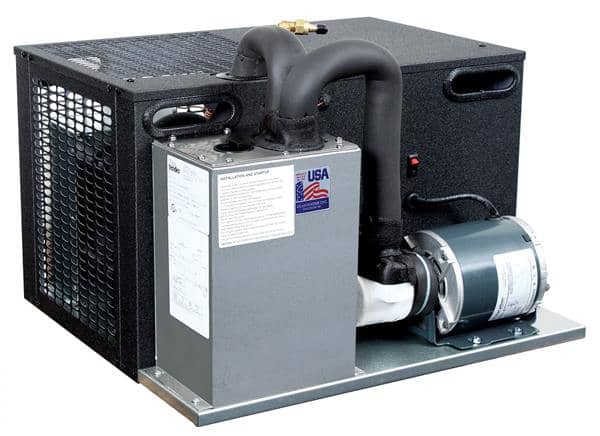

The Glastender BLC-1/3-E Beer Line Chiller is a single recirculating pump unit for chilling trunklines up to 128 ft long.
This unit features a ⅓ HP compressor that uses R134a refrigerant and is capable of 2,175 BTU/hr and 5,232 BTU/hr of heat rejection. The glycol bath is made from stainless steel with foamed-in-place CFC-free insulation and holds .94 gallons of glycol. Glycol is easily added through a filling port in the front.
The unit is 27” long, 21-¼” wide and 14-¾” tall. The exterior is black vinyl coated and the base is made of tough 16 gauge galvanized steel.
At full load, this unit uses 13.0 amps and includes a power cord with a NEMA 5-20P plug. The unit should be installed to its own dedicated 20.0 amp circuit. Two different power options are available for this unit 120v/60/1-ph and 220/v/50/1-ph.
The Glastender BLC-1/3-E Beer Line Chiller is cETLus certified.
- Front located glycol filling port
- Glycol connections with flared fittings for easy service access
- Stainless steel, CFC-free, foamed-in-place insulated glycol bath
- Durable black vinyl-clad exterior with 16 gauge galvanized steel base
- High efficiency heat exchanger minimizes glycol bath size to one gallon
