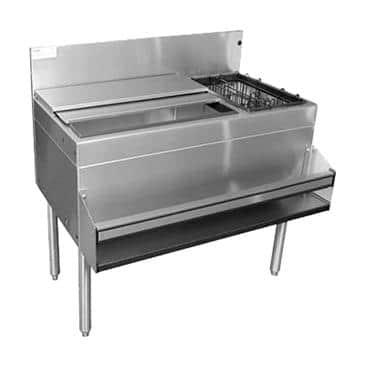

Glastender CBA-48L-CP10 Underbar Ice Bin/Cocktail Unit

Glastender CBA-48L-CP10 Underbar Ice Bin/Cocktail Unit
Free Freight
Price $1,818

You will earn 1,818 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $45.60/mo.

Width (in)48.00
Height (in)37.00
Depth (in)19.00
You May Also Need

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Underbar Ice Bin/Cocktail Unit, with bottle well storage, 48"W x 19"D, built-in 10-circuit cold plate, 7"H backsplash, 100 lbs. ice capacity, 10-1/2" deep bin liner, ABS plastic breaker strip around ice bin liner, includes stainless steel sliding covers, 6-bottle insulated storage compartment on left, stainless steel construction, stainless steel legs with adjustable bullet feet, ETL-Sanitation

Standard Features:
  • Sliding stainless steel cover
  • All stainless steel construction
  • CFC free foamed-in-place insulation
  • Adjustable stainless steel bullet feet
  • One-piece, seamless top and backsplash
  • Available in 6″ incremental lengths from 30″ to 60″
  • 24″ deep version provides larger ice bin not just a deck extension on the back of the 19″ deep model
  • Tubing chase available centered in backsplash of 12″ and larger models. Specify accessory model #TC-BS
  • Ten circuit cold plate is available on units where the main ice bin liner is 22″ or wider (add suffix ‘-CP10’ to model number)
  • PVC plastic breaker strip around ice bin liner: creates 5/16″ raised edge around liner, acts as thermal barrier to prevent heat transfer, and makes the cover slide easier
  • Combo Ice Bins combine separate draining ice bin and bottle well compartments into one integral unit. The fully insulated 12″ bottle well comes with two wire racks for ice chilled storage of 6 or 8 bottles in 19″ or 24″ deep ice bins, respectively. The bottle well may be located on the left, right, or both sides of the ice bin.
  • NOTE: Combo Ice Bins are not recommended for dry, room temperature  storage of bottles - instead, higher bottle capacity Liquor Displays
  • Liner Depth
    • 10-1/2″ standard
    • 14-1/2″ extra deep
  • Drain
    • Non-cold plate model: 1-1/2″ tailpiece
    • Ten circuit cold plate model: 3/4˝ MPT
  • Tubing Chase in Backsplash (Optional)
    • 2-3/8″ by 4″ hole centered in backsplash
  • Ice Capacity
    • “A” depth standard = 2.79 lbs X length
    • “B” depth standard = 3.54 lbs X length
    • “A” depth extra deep = 3.85 lbs X length
    • “B” depth extra deep = 4.89 lbs X length
  • Legs
    • Stainless steel bullet feet
    • 1-5/8″ diameter 16 gauge stainless steel
  • Materials
    • 20 gauge stainless steel
    • PVC plastic breaker strip around opening of ice bin liner
  • Cold Plate (Models with ‘-CP10’ suffix)
    • Connection is 5/16″ O.D. stainless steel tubing with swaged end
    • Ten circuit available for 22″ wide (main liner) and larger models only
  • Cover
    • Two-piece sliding cover, 20 gauge stainless steel, included with all models
