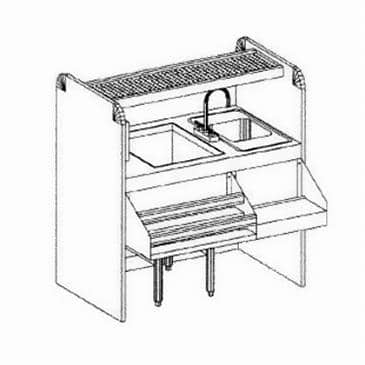

Glastender CS-42X26-CCW Assembly Ice Bin/Cocktail Station

CS-42X26-CCW
Glastender CS-42X26-CCW Assembly Ice Bin/Cocktail Station
Free Freight
Price $3,169


Glastender
More from Glastender
PayPal CREDIT
Specs
BrandGlastender
Width (in)42.00
Height (in)45.00
Depth (in)26.00
Weight315.00
You May Also Need


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
Assembly Ice Bin/Cocktail Station, pass-thru combo, 42"W x 26"D, counterclockwise configuration, pass-thru ice bin, tubing chase, wet waste sink with gooseneck faucet (low lead compliant) & strainer, blender shelf, double speed rail, 12"D stainless steel draining shelf with removable perforated inserts, laminated wooden front & end panels, ETL-Sanitation

Standard Features:
  • Gooseneck faucet
  • Pass thru ice bin - capacity 85#
  • Blender shelf - dimensions: 16" long by 10" deep
  • Available in clockwise or counterclockwise rotation
  • Tubing chase - dimensions: 4" by 8" by 6-1/2" high
  • All faucets are NSF/ANSI 61, Annex G low lead compliant
  • Stainless steel draining tray shelf with removable perforated inserts
  • Wet waste sink with strainer - dimensions: 9-1/4" by 11-1/2" by 6" deep
  • Double speed rail - dimensions: 24" long by 10" deep - capacity: 12 bottles
  • Laminated wooden front and end panels, specify laminate manufacturer, color, and catalog number when ordering (Conversion to stainless steel front and end panels is available)
  • NOTE: Cocktail stations can be ordered without the laminated front and end panels for customers who wish to provide their own. Add the suffix ‘-S’ in the model number when ordering.
Specifications
  • Tubing Chase
    • 4" by 8" by 6-1/2" high
  • Sink Bowl
    • 9-1/4" by 11-1/2" by 6" deep
  • Ice Bin
    • 16" by 20-1/2" by 10-1/2" deep
  • Sneeze Guard (optional)
    • 17-1/4" by 21-1/2" by 10" high
  • Ice Bin Drain
    • Standard model - 1-1/2" tailpiece
    • Ten circuit cold plate models - 1/2" MPT
  • Tray and Overshelf (optional) Drains
    • 1/2" tailpiece
  • Cold Plate
    • Ten circuit available
  • Shelf Heights
    • Tray shelf - 44"
    • Single overshelf (optional) - 69"
    • Double overshelf (optional) - 63" and 72"
  • Faucet
    • On 4" centers, accepts 3/8" sink leads, hot and cold water connections required
  • Sink Drain
    • 1-1/2" I.P.S. Threaded drain will fit Dearborn part #8033 slipnut and part #W-573P washer.
  • Rotation
    • Ice bin can be at bartender’s left (clockwise) or right (counterclockwise) - specify when ordering
  • Materials
    • Laminated wooden front and end panels
    • 1/4" clear acrylic sneeze guard (optional)
    • 16 gauge stainless steel parts include: leg mounting brackets and legs
    • 18 gauge stainless steel parts include: leg set cross braces and leg pads
    • 14 gauge stainless steel parts include: blender shelf ends and double speed rail ends
    • 20 gauge stainless steel parts include: tray shelf and inserts, tubing chase, work surface, blender shelf, double speed rail steps, bowl, and ice bin (Stainless front and end panels if specified)
  • Recommendations
    • Provide 12" by 12" open floor drain (safe waste) under ice bin - consult local codes
    • Provide 120V, 20 AMP, four-plex electrical outlet below ice bin for appliances such as blenders, carbonators, dispensers, etc.
Options
Stainless steel panels
Laminated wooden panels
Special order note
Warranty
