Krowne Metal Metal BR96R Refrigerated Back Bar Storage Cabinet

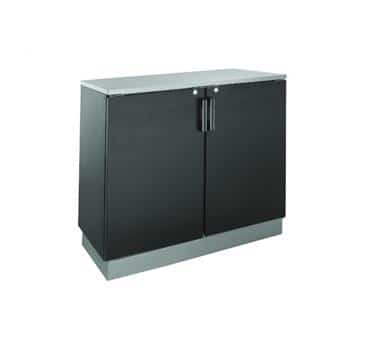

Photo of the Krowne Metal BR96R Refrigerated Back Bar Storage Cabinet
You will earn 3,094.22 Reward Points.
You will earn 3,039 Reward Points.
More from Krowne Metal
- NOTE! Requires remote refrigeration system (not included)
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- Operating Range
- Foamed-in-place polyurethane
- 20 gauge stainless steel. Two adjustable epoxy coated shelves with floor rack Door Opening: 29 11/16” high x 19 15/16” wide
- 134A expansion valve installed (standard). Optional 404 expansion valve available. Thermostat not included. IMPORTANT: Specify left or right side hook-up
- 1/2” drain connection required for condensation. Drain line connection will be on the same side as the refrigeration line location selected. A 100 V Condensate Evaporator pan may be used in place of a drain line but it is important to make sure you have a good location for it. Please consult with your refrigeration installation company and check local codes.
- Case Capacity 48” 72” 96”
- Long Neck Bottles: 11.5 20 30
- 12 oz. Cans: 20 34 40
- Wine Bottles (each): 106 170 300
- Back: 20 gauge galvanized steel
- Sides: 20 gauge stainless steel or black vinyl
- Front: 20 gauge stainless steel, black vinyl or glass
- Top: 20 gauge galvanized steel with option of stainless steel
- 115 V, 60 Hz. Furnished with a terminal block inside the box for a hard wire connection (supplied by the end user). Dedicated 15 Amp circuit recommended.
- 2 Door Model: 1.0 Full Load Amp
- 3 Door Model: 1.5 Full Load Amp
- 4 Door Model: 2.0 Full Load Amp
- Note: This equipment is intended for the storage and display of non-potentially-hazardous bottle or canned products only
- BC-134 Four 3” casters with Brakes
- BS-100 Four 6” Stainless Steel Legs
- BS-102 Four 4” Stainless Steel Legs
- BS-106 Left Side Stainless Steel Kick Plate
- BS-148 48” Stainless Steel Front Kick Plate
- BS-172 72” Stainless Steel Front Kick Plate
- BS-196 96” Stainless Steel Front Kick Plate
- BS-107 Right Side Stainless Steel Kick Plate
- BC-132 Four 2” Low profile casters with Brakes
- BC-135 Six 3” casters with Brakes (72” and 96”)
- BS-103 Six 4” Stainless Steel Legs (72” and 96”)
- BC-500 1/3 HP Condensing Unit (134A Refrigerant)
- BS-600 110V Solenoid Valve + Thermostat, Installed
- BC-130 Four 1” Ultra Low profile casters with Brakes
- BS-101 Six 6” Stainless Steel Legs (72” and 96” models)
- BC-133 Six 2” Low profile casters with Brakes (72” and 96”)
- BC-131 Six 1” Ultra Low profile casters with Brakes (72” and 96”)
