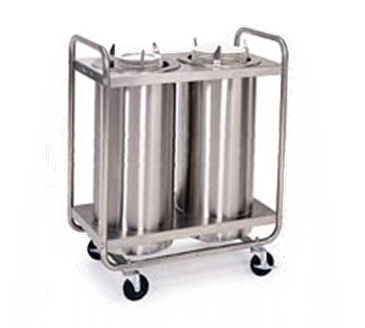

Lakeside Manufacturing Manufacturing 776 Adjust-a-Fit Dish Dispenser

776
Made in USA
Lakeside Manufacturing Manufacturing 776 Adjust-a-Fit Dish Dispenser
Free Freight
Retail Price $2,639
Price $2,446

You will earn 2,639 Reward Points.

You will earn 2,446 Reward Points.

You will earn 2,639 Reward Points.

You will earn 2,446 Reward Points.

FINANCEFOR $61.35/mo.

PayPal CREDIT
  • There is a $375 min. order requirement from this manufacturer
Specs
BrandLakeside Manufacturing
Made inUSA
TypeHeated
Dish Diameter4.3 - 7.5 Inches
Temperature Range100 - 175 Degrees F
Voltage120 Volts
Wattage600 Watts
Width (in)35.50
Height (in)38.31
Depth (in)17.75
Weight93.00
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
Adjust-a-Fit® Dish Dispenser, heated, open tubular frame, mobile, (2) self-leveling dish dispensing tubes, Easy-Glide™ design, maximum dish size 7-1/2" diameter, stainless steel construction, 4" swivel casters (2) with brakes, 8' cord with NEMA 5-15P, NSF, UL listed
Standard Features:
Adjustable Diameter And Dispensing Height Adjustments Without Tools
  • 4” Lake-Glide® casters - all swivel, 2 each with brake.
  • Easy-Glide™ design provides quiet, non-stick operation.
  • High-strength easy-to-clean stainless steel tubular frame.
  • Each heated dispenser features its own thermostatic control.
  • Three tube sizes, each with a 3 ¼” diameter adjustment range.
  • Height adjustment springs detach and attach from inside the dispenser. No need to remove dispenser from mobile unit.
Optional Accessories:
  • Round corner bumpers
  • 220 VAC 50 Hz (heated models)
  • 208/240 VAC 60Hz (heated models)
  • Stainless steel dispenser tube covers
Specifications:
Mobile Frame: Mobile frame shall be of 18-gauge wall stainless steel 1” tubing. Tubing frame shall be of "U-frame" design with bottom tie bars for extra strength. Units shall have 18-gauge top and bottom shelves to provide dispenser tube stability. Top and bottom shelves shall be bolted to tubular frame. Casters shall be 4” (102 mm) diameter extra-load swivel stem type (two with locking brake). Units shall be NSF listed.
Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop into top and lower shelf openings. Dispensers shall hang from top shelf opening by an 18-gauge flange ring and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with three sets of nylon roller guides running in vertical tracks for smooth operation. Carriage shall have 22-gauge removable dish platform. Dispensers shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage to provide proper dish height adjustment without tools. Dispensers shall also feature three stainless steel dish guides running the entire height of the dispenser. Dish guides shall pivot to provide diameter adjustability of 3-1/4” (83 mm) without tools or removing components to accommodate various diameter dishes. Each dispenser shall have a vertical stacking capacity of 25” (635 mm).
Heated Models Only: Unit shall be 120 VAC 60 Hz and shall have 6´ (1829 mm) power supply cord with 5-15P NEMA plug (5-20P on Model 797) for 120 VAC. Cabinet shall have interior mounted electrical junction box with twist-lock receptacles for individual power to each dispenser. Dispenser tubes shall be fully enclosed in 22-gauge stainless steel, and have a circular bottom mounted 300 or 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut-off. Control shall have Infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100°F (38°C) and 175° F (79°C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40°F (22°C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Mobile frame and dispenser tubes shall be U.L. listed.
Options
Bumper
Voltages
Customer Reviews

There are no reviews yet for this product.
