Lakeside Manufacturing Manufacturing 965 Adjust-a-Fit Dish Dispenser
|Dish Diameter||6.5 - 9.8 Inches|
|Temperature Range||100 - 175 Degrees F|
You May Also Need
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

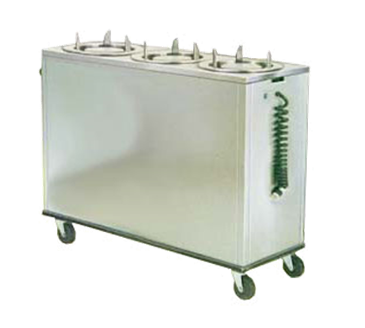

Adjust-a-Fit® Dish Dispenser, heated, cabinet style, enclosed base, mobile, (3) self-leveling dish dispensing tubes, maximum dish size 9-3/4" diameter, stainless steel construction, 4" swivel casters (2) with brakes, 6'coiled cord with NEMA 5-15P, NSF, UL listed
Adjustable Diameter And Dispensing Height Adjustments Without Tools
- All-welded stainless steel construction.
- Corner bumpers protect cabinet, furniture and doors.
- 4” Lake-Glide® casters - all swivel, 2 each with brake.
- Easy-Glide ™ design provides quiet, non-stick operation.
- Each heated dispenser features its own thermostatic control.
- Four tube sizes, each with a 3-1/4” diameter adjustment range.
- Height adjustment springs detach and attach from inside the dispenser. No need to remove dispenser from mobile unit.
- Full-perimeter bumper
- 220 VAC 50 Hz (heated models)
- 208/240 VAC 60Hz (heated models)
- Stainless steel dispenser tube covers
- Laminate or vinyl decorative exterior finishes
Mobile Cabinet: Mobile cabinets shall be of all-welded stainless steel construction, with 18 gauge top and 20- gauge sides and bottom and shall include bottom perimeter bumper. Cabinet bottom shall have center clean out hole. Casters shall be 4” (102 mm) diameter extra-load swivel (two with locking brake). Unit shall feature a heavyduty independent undercarriage frame of galvanized steel to which casters shall be mounted. Units shall be NSF listed.
Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop in to mobile cabinet top openings. Dispensers shall hang from cabinet opening by an 18-gauge flange ring and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with three sets of nylon roller guides running in vertical tracks for smooth operation. Carriage shall have 22-gauge removable dish platform. Dispensers shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage to provide proper dish height adjustment without tools. Dispensers shall also feature three stainless steel dish guides running the entire height of the dispenser. Dish guides shall pivot to provide diameter adjustability of 3-1/4” (83 mm) without tools or removing components to accommodate various diameter dishes. Each dispenser shall have a vertical stacking capacity of 26” (660 mm).
Heating System: Unit shall be 120 VAC 60 Hz and shall have 6´ (1829 mm) coiled power supply cord with 5-15P NEMA plug (5-20P on Model 929) for 120 VAC. Cabinet shall have interior mounted electrical junction box with twist-lock receptacles for individual power to each dispenser. Dispenser tubes shall be fully enclosed in 22- gauge stainless steel, and have a circular bottom mounted 300 or 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut-off. Control shall have Infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100°F (38°C) and 175° F (79°C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40°F (22°C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Cabinet and dispenser tubes shall be U.L. listed.
