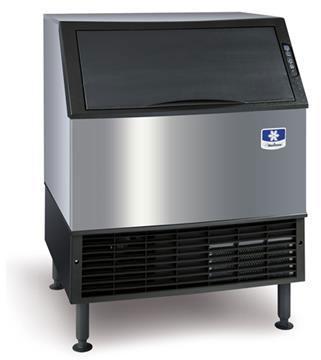

Manitowoc UY-0310W NEO" Undercounter Ice Maker

UY-0310W
Manitowoc UY-0310W NEO" Undercounter Ice Maker
Regularly Stocked
Free Freight
Retail Price $2,647
Price $2,273
FINANCEFOR $83.06/mo.

Manitowoc
More from Manitowoc
PayPal CREDIT
  • Exclusive offer: 50% OFF (already discounted price) Manitowoc matching filter.
Specs
BrandManitowoc
Type of IceHalf-Dice
Type of CoolingWater-Cooled
CondenserSelf-Contained condenser
ControlsElectronic
Ice StyleCube
24 Hr Production300-400 lb
Width (in)30.00
Height (in)38.50
Depth (in)28.00
Weight211
You May Also Need


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
NEO" Undercounter Ice Maker, cube-style, water-cooled, self contained, 271-lb. production/24hrs, 100 lbs ice storage capacity, electronic controls, half dice size cubes, NSF, cETLus, CE

Fully equipped with a 100 lb capacity ice bin and convenient ice scoop, the Manitowoc UY-0310W NEO Undercounter Ice Maker produces up to 271 lbs of half-size ice cubes per day. This ice machine is water-cooled and combines quality ice production, simple maintenance, and user-friendly controls, all in one space-saving package.

Standard Features:
NEO undercounter ice machines are designed to provide ice right where you need it – within reach. Improvements in Performance, Intelligence and Convenience make your ice machine easy to own and less expensive to operate.
  • Performance – NEO produces more ice than ever before while using less water and energy. The storage bin provides industry leading capacity.
  • Available LuminIce™ Growth Inhibitor extends cleaning intervals by reducing yeast and bacteria growth keeping your ice machine cleaner, longer.
  • Intelligence – NEO provides feedback with full bin and service indicators. Delay function allows you to pause your machine for slow periods or days when you’re closed.
  • Convenience – NEO offers a forward-sliding storage bin for easy access to refrigeration components without having to move the entire ice machine. Smooth, sealed food-zone with removable water trough, distribution tube, and damper door for faster cleaning. AlphaSan added to key internal components.
Specifications:
  • Compressor Nominal rating: .75 HP
  • Cupra-Nickel Condenser: (Water-cooled models) Adds protection from corrosive water elements.
  • BTU Per Hour:
    • 5,450 (peak)
    • 4,600 (average)
  • Operating Limits:
    • Water Temperature Range: 45˚ to 90˚F (4.4˚ to 32.2˚C)
    • Ambient Temperature Range: 40˚ to 110˚F (4.4˚ to 43.3˚C)
  • Water Pressure Ice Maker Water In:
    • Min. 20 psi (137.9 kPA)
    • Max. 80 psi (551.1 kPA)
  • Condenser Inlet Water In: (Water-cooled only)
    • Min. 20 psi (137.9 kPA)
    • Max. 150 psi (1,034.2 kPA)
Ice Machine Electric:
  • 208-230/60/1 Air-cooled: 4.5 amps
  • Maximum fuse size: Air and Water-cooled: 15 amps
  • HACR-type circuit breakers can be used in place of fuses.
  • Total Amps: 115/60/1 Air-cooled and Water-cooled: 10 amps
  • 115/60/1. (208-230/60/1 and 230/50/1 available.) 115/60/1 ice machines are factory pre-wired with a 6' (180 cm) power cord and NEMA 5-15P-plug configuration. 208-230/60/1 ice machines are factory pre-wired with a 6' (180 cm) power cord only, no plug is supplied.
Ice Shapes:
  • Dice 7 ⁄8" x 7 ⁄8" x 7 ⁄8" (2.22 x 2.22 x 2.22 cm)
  • Half Dice 3 ⁄8" x 11 ⁄8" x 7 ⁄8" (.95 x 2.86 x 2.22 cm)
  • Regular 11 ⁄8" x 11 ⁄8" x 7 ⁄8" (2.86 x 2.86 x 2.22 cm)

The Manitowoc UY-0310W NEO Undercounter Ice Maker makes a great addition to any kitchen because it makes an ample amount of ice in a short time period. The cooling system is water-cooled and produces 300-400 lbs of half-dice ice in a twenty-four hour period. This item is also complete with electronic controls. It also comes equipped with a self-contained condenser. This ice machine is 38.50 inches tall, 30 inches wide, and 28 inches deep.
Options
Dispenser, Storage Bin, IB Cubers Commercial warranty
(Self-Contained) Commercial Warranty
Evaporator Commercial warranty
Compressor Commercial Warranty
Voltage
Manitowoc Ice Machine water filters can reduce service calls by 60% and will produce better tasting ice
Optional: Exclusive ChillTech water chilling system. Increases ice yields.
Features
How many Ice sizes are available?:3 (Half Dice, Dice and Regular)
Does it have an Ice Thickness Adjustment?:Yes
Does it have a Touch Pad Digital Control?:Yes
What are the different functions you can select on the touch pad?:Power On/Off, Delay, Clean, Full Bin and Service
Does it have a Water Purge and Full Bin Cycle?:Yes
Does it have a Control Board Timer and Safety Limit?:Yes
Does it come with an Electrical Fuse/Circuit Breaker?:No (A separate fuse/breaker must be provided)
What is the Maximum Fuse Size?:15 Amps
Does it come with a Removable Bin?:Yes
Does it come with an Air Filter?:Yes
Does it have optional accessories?:Yes (Bin Caster, Arctic Pure Water Filter System, LuminIce Growth Inhibitor and Manitowoc Cleaner and Sanitizer
What is the Compressor Nominal Rating?:.75 HP
What is the Machine Total Amps?:115/60/1: 115/60/1: 10 Amps // 208-230/60/1: 4.5 Amps
