Market Forge Industries F-20LF Kettle

Market Forge Industries F-20LF Kettle
Free Freight
Retail Price $7,826.50
Price $6,166

You will earn 7,826.50 6,166 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $154.64/mo.

BrandMarket Forge
Capacity20 Gallon
Design2/3 Steam Jacket Design
MaterialStainless Steel
Specialty OptionsDirect Steam
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

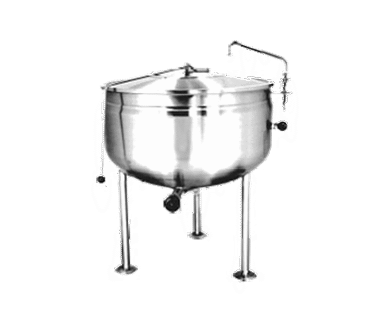

Kettle, direct steam, 20 gallon capacity, full steam jacket design, tri-leg, all stainless steel exterior finish

Standard Features:
Market Forge direct connected stationary steam jacketed kettle. Kettle will be constructed of welded satin finish stainless steel, type 304. A double wall interior around the kettle will form a full steam jacket. The kettle bottom will be of elliptical design for superior heat circulation. The 20 gallon will be on a Tri-leg mounting frame of stainless steel pipe and the 30-60 gallon will be on a Quad-leg mounting frame of stainless steel pipe. Both the Tri and Quad stainless steel pipe mounting frames will conceal the steam piping. Each leg will be fit- ted with a four-hole adjustable flange foot for securing to the floor. Unit will include as standard a Steam Control Kit (STA-1), a hinged cover and a 2” draw-off valve with strainer and a safety relief valve.
Options & Accessories: (Additional Charge)
  • „ Pantry Faucet
    • ‰ Single pantry faucet with swing spout and mounting bracket
    • ‰ Double pantry faucet with swing spout and mounting bracket
  • ‰ Strainer hook
  • ‰ BFT - Ball float trap
  • ‰ Etched Gallon Markings
  • ‰ Triple bracket assembly
  • ‰ Graduated measuring stick
  • ‰ Wall models (consult factory)
  • ‰ H.P. 50 PSI (3.5 kg/cm2) rated
  • ‰ 3” (76mm) draw-off valve with strainer
  • ‰ PRV - Pressure reducing valve when required
  • ‰ Type 316 stainless steel liner (for high acid content)
  • ‰ Prison package, s/s plate over tangent draw-off valve, tamper proof screws, chrome plated steam control, lockable spring assist hinged cover, reinforcement bar
  • Direct steam at 5–35 PSI (0.3–2.5 kg/cm2). An optional pressure reducing valve is required if incoming pressure exceeds kettle rat- ing.
Steam Flow Requirements:
  • 34 lbs. (15.5 kg) steam per hour or 1 BHP per 20 gallons (76 liters) of kettle capacity.
Shipping Weight:
  • ‰ F-20LF - 225 lbs (102 kg)
  • ‰ F-30LF - 245 lbs (111 kg)
  • ‰ F-40LF - 270 lbs (122 kg)
  • ‰ F-60LF - 295 lbs (134 kg)
  • ‰ F-80LF - 320 lbs (145 kg)

50 PSI
Marking & measuring strip
Draw-offs & disc strainers
Prison option
