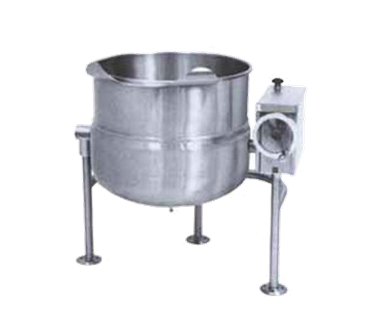

Market Forge Industries FT-20L Tilting Kettle

Market Forge Industries FT-20L Tilting Kettle
Free Freight
Call for Price: 1-800-555-0666

  • This item is now sold under Crown. Click on the link below.

BrandMarket Forge
Capacity20 Gallon
Design2/3 Steam Jacket Design
MaterialStainless Steel
Specialty OptionsDirect Steam
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software


Standard Features:
  Market Forge direct steam connected, tilting tri-leg, steam jacketed. Kettle will be constructed of welded satin finish stainless steel, type 304. A double wall kettle interior will form a 2/3 steam jacket around the lower of the kettle. The kettle bottom will be of elliptical design for superior heat circulation.
  Tri-leg mounting frame of stainless steel pipe will conceal the steam piping. Each leg will be fitted with a four-hole adjustable flange foot for securing to the floor. A sealed stainless steel tilt mechanism will permit the kettle to tilt forward a full 90o for complete emptying. Tilting mechanism will be self-locking for positive stop action. Steam control valve will be mounted on right hand control box. Unit will include as standard a steam control kit (CKT-1), and a Steam trap that includes a steam control valve (steam inlet globe valve) and line strainer.
Options & Accessories: (Additional Charge)
  • Draw-off Valves
    • 2” draw-off valve with strainer
    • 3” draw-off valve with strainer
  • Covers
    • One-piece lift-off stainless steel cover
    • One-piece counterbalance hinged stainless steel cover
  • Pantry Faucets
    • Single pantry faucet with swing spout and mounting bracket
    • Double pantry faucet with swing spout and mounting bracket
  • Check valve
  • BFT - ball float trap
  • Triple basket assembly
  • Graduated measuring stick
  • Wall models (consult factory)
  • PRV - pressure reducing valve
  • Type 316 stainless steel liner for high acid content products
  • Direct steam at 5-30 PSI (0.3-2.1 kg/cm2). Over 30 PSI (2.1 kg/cm2), a pressure reducing valve is required.
Steam Flow Requirements:
  • 34 lbs. (15.5 kg) steam pre hour or 1 BHP per 20 gallons (76 liters) pf kettle capacity.
Shipping Weight:
  • FT-20P - 225 lbs (102 kg)
  • FT-30P - 275 lbs (125 kg)
  • FT-40P - 300 lbs (136 kg)
  • FT-60P - 315 lbs (143 kg)
  • FT-80P - 325 lbs (147 kg)
  • FT-100L - 350 lbs (159 kg)

Draw-offs & disc strainers
Marking & measuring strip
Prison option
Mounting option

NOTE! This is a general product line video and does not necessarily reflect the listed model.
