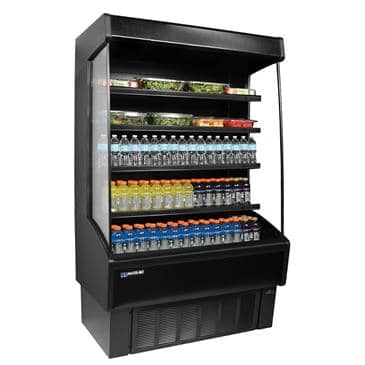

Master-Bilt VOAM48-79 Vertical Open Air Refrigerated Merchandiser
|Number of Shelves||4|
|Capacity||28.3 Cubic feet|
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- Automatic defrost
- Standard LED lighting in canopy
- Shelves adjustable in 1" increments
- Easily accessible electrical enclosure
- Standard retractable vinyl night curtain
- Perforated interior back wall for better air flow
- 2" foamed-in-place “zero ODP” urethane insulation
- Stainless steel floor pans (removable for easy service)
- Four tiers of two-position shelving with price tag molding
- Contemporary styling provides an attractive product showcase
- 24 gauge painted textured galvanized steel exterior and interior
- Standard electronic controller with these features:
- Audible and visual alarm
- Ability to monitor defrost functions from the front panel interface
- Eliminates room thermostat, defrost termination/fan delay control, defrost timer and digital thermometer or other temperature indicator
- Refrigerant: R-404A
- Temp. range: 34° to 41°F (1° to 5°C)
- Front air intake and rear air discharge
- R-factor (insulation efficiency rating): 17.24
- Self-contained, bottom mount refrigeration system
- Standard energy efficient automatic condensate removal system
- Condensing unit slides out front of case for easy cleaning and servicing
- Standard limited three year parts and labor
- Additional two year coverage on compressor part
- Condensate evaporator pan via plug in, 10 ft. long with molded plug.
- VOAM36-79 and VOAM48-79 via plug in, 9 foot long, flexible 3 wire 14/3 cord with molded plug.
- VOAM60-79 & VOAM72-79: via plug in, 9 foot long flexible four wire 208-230v 14/4 cord with neutral and ground wires and molded plug.
- Floor drain should be properly trapped
- Should not be installed in direct sunlight
- Product must not be displayed in the cold air curtain
- Bottom shelf should not be loaded such that the front air intake is obstructed
- Merchandisers designed to hold product in the 34° to 41°F (1° to 5°C) range
- Factory installed controls should not be altered, removed or replaced without consent of the factory
- Designed to operate in air-conditioned stores where the maximum temperature is 75°F and the maximum relative humidity is 55%
- Should not be installed near HVAC vents, fans or doorways that will disrupt airflow and compromise the function of the air screen inside the case
Merchandiser constructed of 24 ga. painted textured galvanized steel interior and exterior & will be equipped with an electronically controlled monitoring system. Other features include retractable vinyl night curtain, adjustable two-position shelves, automatic defrost and 2" thick “zero ODP” polyurethane insulation. Refrigeration system to be self-contained, have a front condenser air intake and rear air discharge and use R-404A refrigerant. Temperature range will be 34° to 41°F (1° to 5°C). Merchandiser to have standard limited three year parts and labor warranty with additional two year coverage on compressor part. Merchandiser to be UL & C-UL listed and UL-EPH classified.
