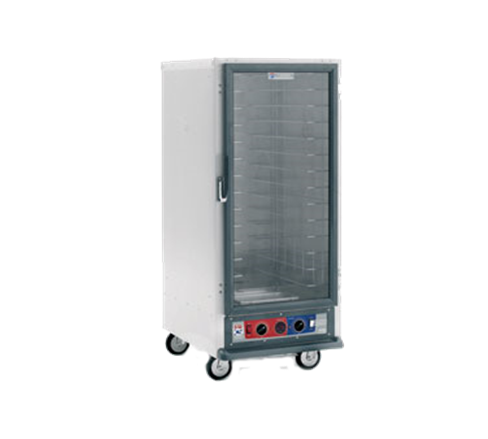

Metro C517-HFC-UA C5™ 1 Series Heated Holding Cabinet

C517-HFC-UA
Metro C517-HFC-UA C5™ 1 Series Heated Holding Cabinet
Free Freight
Price $1,847

FINANCEFOR $46.32/mo.

Metro
More from Metro
PayPal CREDIT
Specs
BrandMetro
Width (in)25.13
Height (in)57.75
Depth (in)30.25
Weight139.50
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
C5™ 1 Series Heated Holding Cabinet, mobile, 3/4 height, non-insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 190°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (14) 18" x 26" or (26) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

Standard Features:
  • Reliability: Reliability and durability are designed into every C5. High quality components provide a long life of worry-free use.
  • Performance: All modules provide fast heat-up and recovery through a thermostatically controlled, forced air heating system.
  • Doors: Clear polycarbonate doors provide visibility of the contents of the cabinet without the heat loss associated with opening the door.
  • Sizes: C5 1 Series cabinets are available in Full Height (693 /4", 1772mm), 3 /4 Height (573 /4", 1467mm), and 1 /2 Height (423 /4", 1086mm) sizes.
  • Removable Module: All modules are removable, without tools, for easy cleaning of the cabinet interior. Future module upgrades or changes can occur without cabinet body replacement.
  • Control: Three holding modules are available. All feature an easy-to-read digital thermometer, recessed control dials, a master on/off switch, and power indicator lights.
    • Proofing Module: For proofing applications only. Individual analog controls for temperature and humidity levels.
    • Holding Module: For heated holding applications. Analog temperature control and a passive humidity generation system.
    • Combination Module: At the flip of a switch change from heated holding mode to proofing mode. Individual analog controls for temperature and humidity levels.
  • Capacity: Three slide styles provide maximum holding capacity.
    • Lip Load: Fixed aluminum extrusions hold 18"x26" sheet pans on 11 /2" (38mm) increments.
    • Fixed Wire: Fixed slides hold 18"x26" sheet, 12"x20" steam table, 2/1 GN, or 1/1 GN pans on 3" (76mm) increments.
    • Universal: Adjustable wire slides, with SiteSelect™, hold 18"x26" sheet, 12"x20" steam table, 2/1 or 1/1 GN pans, and adjust on 11 /2" (38mm) increments.
Options/Accessories
  • Travel Latch (C5-TRVL)
  • 6" Casters (C5-6CASTER)
  • Small Item Shelf (C5-SHELF-S)
  • Rear Push Handle (C5-RHANDLE)
  • Stainless Steel Legs (C5-SSLEGS)
  • Factory Left-Hand Hinging (DD3768)
  • Rear Rigid Casters (C5-5RDGCSTR)
  • Perimeter Bumper (C5-PERMBUMP-1)
  • Flush Door Latch (C5-LATCHFLUSH-1)
  • Stainless Steel Universal Slides (please call)
  • Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
  • Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
  • Universal Slide Pair, Chrome (C5-USLIDEPR-C)
Specifications
  • Drip Trough: Smooth polymer drip trough with catch pan.
  • Gaskets: High temperature, door mounted, Santoprene gaskets.
  • Latches: Polymer, high-strength, magnetic pull latch with leveraction release.
  • Hinges: Field reversible, double hinged, 180° swing, with longlife nylon bearings.
  • Clear Doors: Extruded aluminum powder coated frame with .090" (2.3mm) polycarbonate window.
  • Fixed Wire Slides: 1/4" (6.4mm) dia. nickel-chrome electroplated wire, welded on 3" (76mm) spacing.
  • Universal Slides: 1/4" (6.4mm) dia. nickel-chrome electroplated wire, adjustable on 1 1/2" (38mm) increments.
  • Lip Load Slides: 1 1/2"x1/2"x.063" (38x38x1.8mm) extruded aluminum channel slides, 1 1/2" (38mm) fixed spacing.
  • Cabinet Material: .063" (1.8mm) aluminum, natural interior, brushed exterior with .125" (3.2mm) aluminum chassis.
  • Holding Module: 2000 Watt, 120 Volts, 60 Hz., single phase, 16.7 Amps. 80˚F to 190˚F operating temperature range. NEMA 5-20P plug.
  • Casters: Four casters with 5" (127mm) donut neoprene wheel, double ball bearing swivel, ball bearing axel, nickel plated, two with brake.
  • Proofing Module: 1440 Watt, 120 Volts, 60 Hz., single phase, 12 Amps. 80˚F to 120˚F operating temperature range. 95% RH at 95˚F. NEMA 5-15P plug.
  • Combination Module: 2000 Watt, 120 Volts, 60 Hz., single phase, 16.7 Amps. 80˚F to 190˚F operating temperature range. 95% RH at 95˚F. NEMA 5-20P plug.
  • Holding Modules: Removable without tools, digital thermometer, recessed control dials, master on/off switch, “Power On” light, water pan, ball bearing blower forced air system, 71 /2' cord, UL, CUL, and NSF Listed. Electrical and Performance:
Options
Hinging options
Plug options
Latch options in lieu of standard
Handle
Slides
Casters & legs
Shelf
Bumpers
