Metro C539-MDC-UA C5™ 3 Series Moisture Heated Holding & Proofing

Made in USA
Metro C539-MDC-UA C5™ 3 Series Moisture Heated Holding & Proofing
Regularly Stocked
Free Freight
Price $3,314

You will earn 3,314 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

Request a Quote

FINANCEFOR $83.12/mo.

Made inUSA
Width (in)27.63
Height (in)71.00
Depth (in)31.50
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

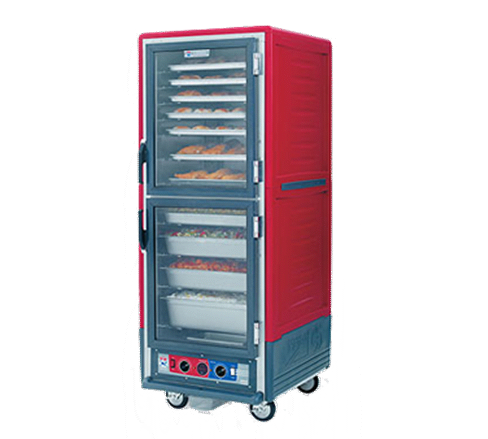

C5™ 3 Series Moisture Heated Holding & Proofing Cabinet, with Red Insulation Armour™, mobile, full height, insulated, Dutch clear polycarbonate doors, removable bottom mount control module, thermostat to 200°F & moisture, universal wire slides on 3" centers, adjustable on 1-1/2" increments (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

Standard Features:
  • Capacity: Three slide styles provide maximum holding capacity. Choose from Universal Wire, Lip Load, or Fixed Wire.
  • Power Options: Choose between standard high wattage or low wattage models based on the specific needs of the application.
  • Reliability: Reliability and durability are designed into every C5. High-quality components provide a long life of worry free use.
  • Performance: All modules provide fast heat-up and recovery through a thermostatically controlled, forced convection system.
  • Colors: Insulation Armour is available in Red, Blue, or Gray standard and in other colors on a promotional basis or upon request.
  • Insulation Armour™: Patented insulation technology retains heat, saves energy, and provides a cool-to-touch exterior. Durable polymer construction is dent, impact, and stain resistant. Molded-in hand holds create vertical handles for mobile applications.
  • Doors: Solid insulated aluminum or clear polycarbonate doors are available. Full Height cabinets can be configured with full length or dutch-style doors. Clear doors provide visibility of the contents of the cabinet without the heat loss associated with opening the door.
  • Control: Three modules are available: Holding, Moisture, and Combination Proof and Hold. All feature an easy-to-read digital thermometer, recessed control dials, a master on/off switch, and power indicator lights. All are removable without tools for easy cleaning, and allow for future upgrades without replacing entire cabinet body.
  • Travel Latch (C5-TRVL)
  • 6" Casters (C5-6CASTER)
  • Small Item Shelf (C5-SHELF-S)
  • Stainless Steel Legs (C5-SSLEGS)
  • Rear Rigid Casters (C5-5RDGCSTR)
  • Factory Left-Hand Hinging (DD3768)
  • Flush Door Latch (C5-LATCHFLUSH-1)
  • Stainless Steel Universal Slides (please call)
  • Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
  • Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
  • Universal Slide Pair, Chrome (C5-USLIDEPR-C)
  • Insulation Armour™: High Density Polyethylene (HDPE).
  • Drip Trough: Smooth polymer drip trough with catch pan.
  • Gaskets: High temperature, door mounted, Santoprene gaskets.
  • Hand Holds: Molded into the Insulation Armour™ on all four corners.
  • Latches: Polymer high-strength magnetic pull latch with lever-action release.
  • Hinges: Field reversible, double hinged, 180° swing, with long-life nylon bearings.
  • Clear Doors: Extruded aluminum powder coated frame with .090" (2.3mm) polycarbonate window.
  • Solid Doors: Fully insulated with 1" (25.4mm) fiberglass, double panel .063" (1.8mm) aluminum, brushed exterior, natural interior.
  • Casters: Four casters with 5" (127mm) donut neoprene wheel, double ball bearing swivel, ball bearing axel, nickel plated, two with brake.
  • Holding Modules: Removable without tools, digital thermometer, recessed control dials, master on/off switch, “Power On” light, water pan and ball bearing blower forced air system.
Hinging options
Plug option in lieu of standard
Latch options in lieu of standard
Casters & legs
