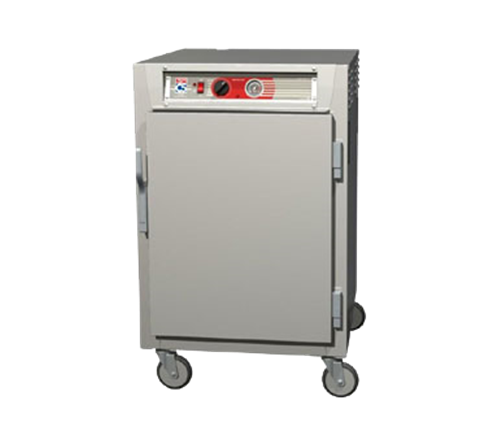

Metro C565-SFS-UPFCA C5™ 6 Series Heated Holding Cabinet
- Performance: Rapid heat-up and recovery times are achieved with a thermostatically controlled ducted heating system.
- Passive Humidity: An integral water pan system can be used to add humidity to the cabinet environment, improving food quality.
- Top-Mounted Controls: Ergonomic user-friendly controls are mounted at the top of the cabinet for easier access, better readability, to prevent damage, and to simplify cleaning.
- Reliability: Reliability and durability are designed into C5 from the ground up. High-quality components and robust construction provide a long life of service and worry-free use.
- ENERGY STAR: Full Height, 3/4 Height, and 1/2 Height Stainless Steel reach-in models with solid doors, and 1 /2 Height Stainless Steel reach-in models with clear doors are ENERGY STAR rated.
- Control: The 6 Series provides control of temperature for safe and hot food. Temperature is displayed on an “always-on” analog thermometer for continuous monitoring of the cabinet temperature, even when turned off or unplugged.
- Materials: Stainless Steel and Aluminum.
- Sizes: Full Height, 3 /4 Height, 1 /2 Height, and Under Counter.
- Reach-In or Pass-Thru (not available on under counter and 3 /4 height).
- Doors: Full Length Solid, Full Length Clear, Dutch Solid, Dutch Clear. All are lift off and field reversible.
- 6 Series Controller:
- Temperature: The easy-to-use dial puts you in control of cabinet temperature.
- Analog Thermometer: An “always-on” thermometer makes it ideal for transport applications.
- Reliable Readout: Measures and displays actual cabinet temperature even when the cabinet is off.
- 6" Casters (C5-6CASTER)
- Small Item Shelf (C5-SHELF-S)
- Rear Push Handle (C5-HANDLE)
- Control Panel Cover (C5-COVER)
- Factory Left Hand Hinging (DD3768)
- Flush Door Latch (C5-LATCHFLUSH)
- 6" Stainless Steel Legs (C5-SSLEGS)
- 5" Rear Rigid Casters (C5-5RDGCSTR)
- Bumper & Drip Trough (C5-BUMPDRIP)
- Full Perimeter Bumper (C5-PERMBUMP)
- Key Locking Door Latch (C5-LATCHLOCK)
- Twist Locking Door Latch (C5-LATCHTWST)
- Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
- Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
- Universal Slide Pair, Chrome (C5-USLIDEPR-C)
- Twist Lock Plug, 20 Amp, 120V (C5-RTWSTPLG
- Universal Slide Pair, Stainless (C5-USLIDEPR-S)
- Twist Lock Plug, 15 Amp, 120V (C5-RTWSTPLG-15)
- Factory Same-Side Pass-thru Door Hinging (C5-SAMESIDE)
- Stainless Steel Universal Slide Upgrades
- 3/4 Height (C5-USLIDE-7S)
- 1/2 Height (C5-USLIDE-5S)
- Full Height (C5-USLIDE-9S)
- Under Counter (C5-USLIDE-3S)
- Handles: Four built-in polymer handles.
- Thermal Performance: 200° F maximum temperature.
- Insulation: Full perimeter, 2.5" thick, high-density fiberglass.
- Gaskets: High temperature, cabinet mounted, Santoprene gaskets.
- Hinges: Self-closing, lift-off, double hinged, with long-life nylon bearings.
- Latches: Chrome plated, high-strength magnetic pull latch with lever-action release.
- Display and Controls: Analog cabinet thermometer with independent thermostat control knob.
- Heat Generation System: Thermostatically controlled 1950 Watt heating element, ball bearing blower motor, and ducted air system.
- Cabinet Material: Type 304 stainless steel; 20-gauge polished exterior; 22-gauge interior, or .063” aluminum, brushed exterior, natural interior.
- Doors: Solid doors are fully insulated, double-panel construction and Clear doors are double-pane, tempered glass. Argon filled with Low-E coating.
- Casters: Four casters with 5" donut neoprene wheel, double ball bearing swivel, ball bearing axle, nickel plated, two with brake. 3" rubber casters on Under Counter models.
|Cabinet Type||Holding cabinets|
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Plug has the neutral blade rotated 90° and shifted so its inner edge is approximately 1⁄2 in (12.7 mm) from the hot blade
UL (Underwriters Laboratories) approval for the US and Canada
