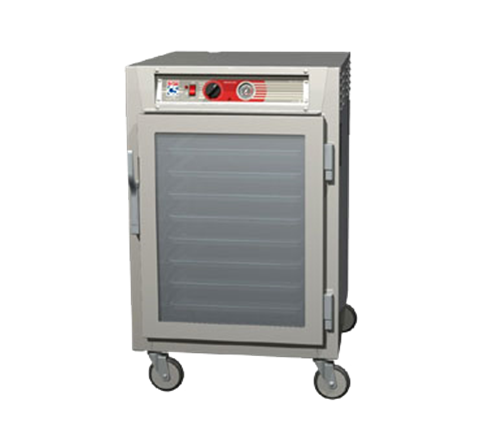

Metro C565L-NFC-U C5™ 6 Series Half Height Clear Door Mobile Heated Holding Cabinet, 120 Volts

Made in USA
Metro C565L-NFC-U C5™ 6 Series Half Height Clear Door Mobile Heated Holding Cabinet, 120 Volts
Free Freight
Free Freight

You will earn 3,292.98 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

Login or add to cart to see our price!

FINANCEFOR $274.31/mo.
Regularly Stocked
Request a Quote
C5™ 6 Series Heated Holding Cabinet, mobile, half height, insulated, tempered double pane glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire slides (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 3" OC (adjustable on 1-1/2" increments), 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, UL, CUL, NSF

Standard Features:
  • Performance: Rapid heat-up and recovery times are achieved with a thermostatically controlled ducted heating system.
  • Passive Humidity: An integral water pan system can be used to add humidity to the cabinet environment, improving food quality.
  • Top-Mounted Controls: Ergonomic user-friendly controls are mounted at the top of the cabinet for easier access, better readability, to prevent damage, and to simplify cleaning.
  • Reliability: Reliability and durability are designed into C5 from the ground up. High-quality components and robust construction provide a long life of service and worry-free use.
  • ENERGY STAR: Full Height, 3/4 Height, and 1/2 Height Stainless Steel reach-in models with solid doors, and 1 /2 Height Stainless Steel reach-in models with clear doors are ENERGY STAR rated.
  • Control: The 6 Series provides control of temperature for safe and hot food. Temperature is displayed on an “always-on” analog thermometer for continuous monitoring of the cabinet temperature, even when turned off or unplugged.
  • Configurations:
    • Materials: Stainless Steel and Aluminum.
    • Sizes: Full Height, 3 /4 Height, 1 /2 Height, and Under Counter.
    • Reach-In or Pass-Thru (not available on under counter and 3 /4 height).
    • Doors: Full Length Solid, Full Length Clear, Dutch Solid, Dutch Clear. All are lift off and field reversible.
  • 6 Series Controller:
    • Temperature: The easy-to-use dial puts you in control of cabinet temperature.
    • Analog Thermometer: An “always-on” thermometer makes it ideal for transport applications.
    • Reliable Readout: Measures and displays actual cabinet temperature even when the cabinet is off.
  • 6" Casters (C5-6CASTER)
  • Small Item Shelf (C5-SHELF-S)
  • Rear Push Handle (C5-HANDLE)
  • Control Panel Cover (C5-COVER)
  • Factory Left Hand Hinging (DD3768)
  • Flush Door Latch (C5-LATCHFLUSH)
  • 6" Stainless Steel Legs (C5-SSLEGS)
  • 5" Rear Rigid Casters (C5-5RDGCSTR)
  • Bumper & Drip Trough (C5-BUMPDRIP)
  • Full Perimeter Bumper (C5-PERMBUMP)
  • Key Locking Door Latch (C5-LATCHLOCK)
  • Twist Locking Door Latch (C5-LATCHTWST)
  • Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
  • Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
  • Universal Slide Pair, Chrome (C5-USLIDEPR-C)
  • Twist Lock Plug, 20 Amp, 120V (C5-RTWSTPLG
  • Universal Slide Pair, Stainless (C5-USLIDEPR-S)
  • Twist Lock Plug, 15 Amp, 120V (C5-RTWSTPLG-15)
  • Factory Same-Side Pass-thru Door Hinging (C5-SAMESIDE)
  • Stainless Steel Universal Slide Upgrades
    • 3/4 Height (C5-USLIDE-7S)
    • 1/2 Height (C5-USLIDE-5S)
    • Full Height (C5-USLIDE-9S)
    • Under Counter (C5-USLIDE-3S)
  • Handles: Four built-in polymer handles.
  • Thermal Performance: 200° F maximum temperature.
  • Insulation: Full perimeter, 2.5" thick, high-density fiberglass.
  • Gaskets: High temperature, cabinet mounted, Santoprene gaskets.
  • Hinges: Self-closing, lift-off, double hinged, with long-life nylon bearings.
  • Latches: Chrome plated, high-strength magnetic pull latch with lever-action release.
  • Display and Controls: Analog cabinet thermometer with independent thermostat control knob.
  • Heat Generation System: Thermostatically controlled 1950 Watt heating element, ball bearing blower motor, and ducted air system.
  • Cabinet Material: Type 304 stainless steel; 20-gauge polished exterior; 22-gauge interior, or .063” aluminum, brushed exterior, natural interior.
  • Doors: Solid doors are fully insulated, double-panel construction and Clear doors are double-pane, tempered glass. Argon filled with Low-E coating.
  • Casters: Four casters with 5" donut neoprene wheel, double ball bearing swivel, ball bearing axle, nickel plated, two with brake. 3" rubber casters on Under Counter models.
SeriesC5™ 6 Series
SizeHalf Height
Cabinet TypeHolding cabinets
Made inUSA
Door TypeClear
Voltage120 Volts
Width (in)29.13
Height (in)44.75
Depth (in)32.63
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software


NOTE! This is a general product line video and does not necessarily reflect the listed model.

Metro C565L-NFC-U C5™ 6 Series Half Height Clear Door Mobile Heated Holding Cabinet, 120 Volts


Two-pole with ground pin plug



UL (Underwriters Laboratories) approval for the US and Canada



This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
