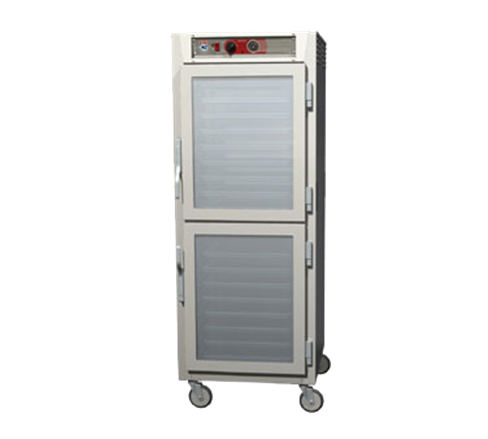

Metro C569L-SDC-UPDCA C5™ 6 Series Heated Holding Cabinet
- Performance: Rapid heat-up and recovery times are achieved with a thermostatically controlled ducted heating system.
- Passive Humidity: An integral water pan system can be used to add humidity to the cabinet environment, improving food quality.
- Top-Mounted Controls: Ergonomic user-friendly controls are mounted at the top of the cabinet for easier access, better readability, to prevent damage, and to simplify cleaning.
- Reliability: Reliability and durability are designed into C5 from the ground up. High-quality components and robust construction provide a long life of service and worry-free use.
- ENERGY STAR: Full Height, 3/4 Height, and 1/2 Height Stainless Steel reach-in models with solid doors, and 1 /2 Height Stainless Steel reach-in models with clear doors are ENERGY STAR rated.
- Control: The 6 Series provides control of temperature for safe and hot food. Temperature is displayed on an “always-on” analog thermometer for continuous monitoring of the cabinet temperature, even when turned off or unplugged.
- Materials: Stainless Steel and Aluminum.
- Sizes: Full Height, 3 /4 Height, 1 /2 Height, and Under Counter.
- Reach-In or Pass-Thru (not available on under counter and 3 /4 height).
- Doors: Full Length Solid, Full Length Clear, Dutch Solid, Dutch Clear. All are lift off and field reversible.
- 6 Series Controller:
- Temperature: The easy-to-use dial puts you in control of cabinet temperature.
- Analog Thermometer: An “always-on” thermometer makes it ideal for transport applications.
- Reliable Readout: Measures and displays actual cabinet temperature even when the cabinet is off.
- 6" Casters (C5-6CASTER)
- Small Item Shelf (C5-SHELF-S)
- Rear Push Handle (C5-HANDLE)
- Control Panel Cover (C5-COVER)
- Factory Left Hand Hinging (DD3768)
- Flush Door Latch (C5-LATCHFLUSH)
- 6" Stainless Steel Legs (C5-SSLEGS)
- 5" Rear Rigid Casters (C5-5RDGCSTR)
- Bumper & Drip Trough (C5-BUMPDRIP)
- Full Perimeter Bumper (C5-PERMBUMP)
- Key Locking Door Latch (C5-LATCHLOCK)
- Twist Locking Door Latch (C5-LATCHTWST)
- Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
- Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
- Universal Slide Pair, Chrome (C5-USLIDEPR-C)
- Twist Lock Plug, 20 Amp, 120V (C5-RTWSTPLG
- Universal Slide Pair, Stainless (C5-USLIDEPR-S)
- Twist Lock Plug, 15 Amp, 120V (C5-RTWSTPLG-15)
- Factory Same-Side Pass-thru Door Hinging (C5-SAMESIDE)
- Stainless Steel Universal Slide Upgrades
- 3/4 Height (C5-USLIDE-7S)
- 1/2 Height (C5-USLIDE-5S)
- Full Height (C5-USLIDE-9S)
- Under Counter (C5-USLIDE-3S)
- Handles: Four built-in polymer handles.
- Thermal Performance: 200° F maximum temperature.
- Insulation: Full perimeter, 2.5" thick, high-density fiberglass.
- Gaskets: High temperature, cabinet mounted, Santoprene gaskets.
- Hinges: Self-closing, lift-off, double hinged, with long-life nylon bearings.
- Latches: Chrome plated, high-strength magnetic pull latch with lever-action release.
- Display and Controls: Analog cabinet thermometer with independent thermostat control knob.
- Heat Generation System: Thermostatically controlled 1950 Watt heating element, ball bearing blower motor, and ducted air system.
- Cabinet Material: Type 304 stainless steel; 20-gauge polished exterior; 22-gauge interior, or .063” aluminum, brushed exterior, natural interior.
- Doors: Solid doors are fully insulated, double-panel construction and Clear doors are double-pane, tempered glass. Argon filled with Low-E coating.
- Casters: Four casters with 5" donut neoprene wheel, double ball bearing swivel, ball bearing axle, nickel plated, two with brake. 3" rubber casters on Under Counter models.
|Cabinet Type||Holding cabinets|
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Two-pole with ground pin plug
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
