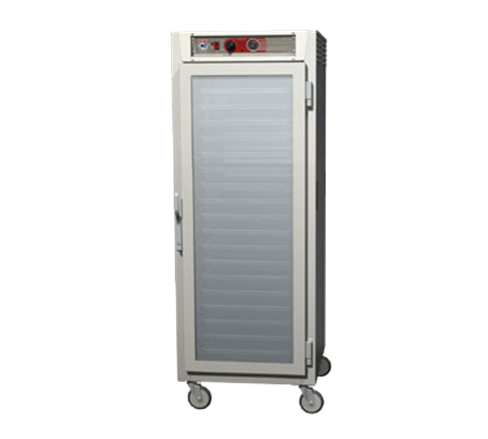

Metro C569L-SFC-L C5™ 6 Series Heated Holding Cabinet

Made in USA
Metro C569L-SFC-L C5™ 6 Series Heated Holding Cabinet
Regularly Stocked
Free Freight
Price $3,855

You will earn 3,855 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

Request a Quote

FINANCEFOR $96.68/mo.

Made inUSA
Width (in)29.13
Height (in)74.75
Depth (in)32.63
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

C5™ 6 Series Heated Holding Cabinet, mobile, full height, insulated, double pane tempered glass doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, lip load (35) 18" x 26" pan capacity, 1-1/2" OC, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, UL, CUL, NSF

Standard Features:
  • Performance: Rapid heat-up and recovery times are achieved with a thermostatically controlled ducted heating system.
  • Passive Humidity: An integral water pan system can be used to add humidity to the cabinet environment, improving food quality.
  • Top-Mounted Controls: Ergonomic user-friendly controls are mounted at the top of the cabinet for easier access, better readability, to prevent damage, and to simplify cleaning.
  • Reliability: Reliability and durability are designed into C5 from the ground up. High-quality components and robust construction provide a long life of service and worry-free use.
  • ENERGY STAR: Full Height, 3/4 Height, and 1/2 Height Stainless Steel reach-in models with solid doors, and 1 /2 Height Stainless Steel reach-in models with clear doors are ENERGY STAR rated.
  • Control: The 6 Series provides control of temperature for safe and hot food. Temperature is displayed on an “always-on” analog thermometer for continuous monitoring of the cabinet temperature, even when turned off or unplugged.
  • Configurations:
    • Materials: Stainless Steel and Aluminum.
    • Sizes: Full Height, 3 /4 Height, 1 /2 Height, and Under Counter.
    • Reach-In or Pass-Thru (not available on under counter and 3 /4 height).
    • Doors: Full Length Solid, Full Length Clear, Dutch Solid, Dutch Clear. All are lift off and field reversible.
  • 6 Series Controller:
    • Temperature: The easy-to-use dial puts you in control of cabinet temperature.
    • Analog Thermometer: An “always-on” thermometer makes it ideal for transport applications.
    • Reliable Readout: Measures and displays actual cabinet temperature even when the cabinet is off.
  • 6" Casters (C5-6CASTER)
  • Small Item Shelf (C5-SHELF-S)
  • Rear Push Handle (C5-HANDLE)
  • Control Panel Cover (C5-COVER)
  • Factory Left Hand Hinging (DD3768)
  • Flush Door Latch (C5-LATCHFLUSH)
  • 6" Stainless Steel Legs (C5-SSLEGS)
  • 5" Rear Rigid Casters (C5-5RDGCSTR)
  • Bumper & Drip Trough (C5-BUMPDRIP)
  • Full Perimeter Bumper (C5-PERMBUMP)
  • Key Locking Door Latch (C5-LATCHLOCK)
  • Twist Locking Door Latch (C5-LATCHTWST)
  • Straight Plug, 20 Amp, 120V (C5-STRPLG-20)
  • Straight Plug, 15 Amp, 120V (C5-STRPLG-15)
  • Universal Slide Pair, Chrome (C5-USLIDEPR-C)
  • Twist Lock Plug, 20 Amp, 120V (C5-RTWSTPLG
  • Universal Slide Pair, Stainless (C5-USLIDEPR-S)
  • Twist Lock Plug, 15 Amp, 120V (C5-RTWSTPLG-15)
  • Factory Same-Side Pass-thru Door Hinging (C5-SAMESIDE)
  • Stainless Steel Universal Slide Upgrades
    • 3/4 Height (C5-USLIDE-7S)
    • 1/2 Height (C5-USLIDE-5S)
    • Full Height (C5-USLIDE-9S)
    • Under Counter (C5-USLIDE-3S)
  • Handles: Four built-in polymer handles.
  • Thermal Performance: 200° F maximum temperature.
  • Insulation: Full perimeter, 2.5" thick, high-density fiberglass.
  • Gaskets: High temperature, cabinet mounted, Santoprene gaskets.
  • Hinges: Self-closing, lift-off, double hinged, with long-life nylon bearings.
  • Latches: Chrome plated, high-strength magnetic pull latch with lever-action release.
  • Display and Controls: Analog cabinet thermometer with independent thermostat control knob.
  • Heat Generation System: Thermostatically controlled 1950 Watt heating element, ball bearing blower motor, and ducted air system.
  • Cabinet Material: Type 304 stainless steel; 20-gauge polished exterior; 22-gauge interior, or .063” aluminum, brushed exterior, natural interior.
  • Doors: Solid doors are fully insulated, double-panel construction and Clear doors are double-pane, tempered glass. Argon filled with Low-E coating.
  • Casters: Four casters with 5" donut neoprene wheel, double ball bearing swivel, ball bearing axle, nickel plated, two with brake. 3" rubber casters on Under Counter models.

NOTE! This is a general product line video and does not necessarily reflect the listed model.
