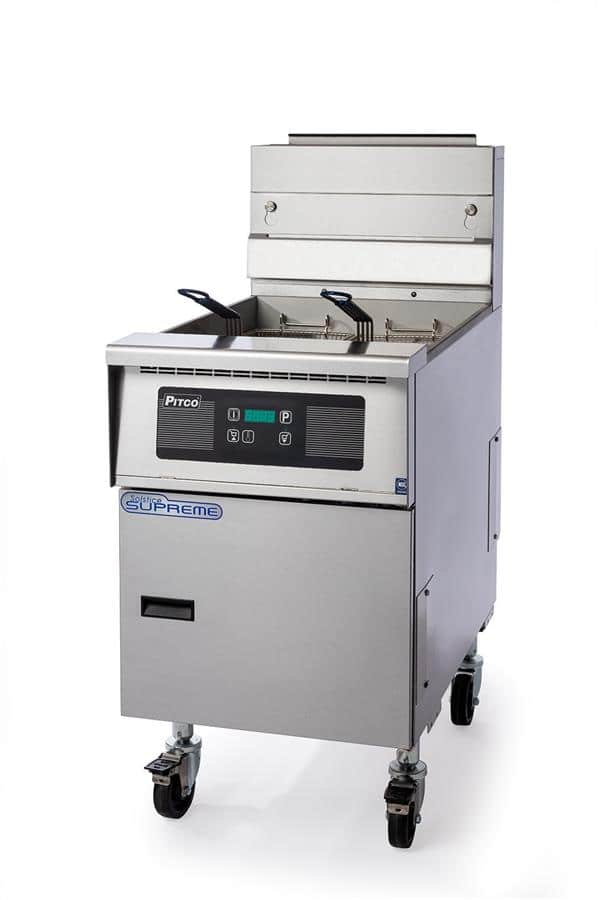

Pitco Frialator SSH75-4FD Solstice Supreme High Efficiency Prepackaged

SSH75-4FD
Pitco Frialator SSH75-4FD Solstice Supreme High Efficiency Prepackaged
$36,205.40
Request a Quote

You will earn 26,331 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $2,193.37/mo.
Free Freight

Description

For businesses that do a lot of deep-frying, multiple dependable fryer units are the workhorses in the kitchen. The Pitco Frialator SSH75-4FD Solstice Supreme package includes four fryer units that you can count on every day to deliver a mountain of deep-fried products. The gas-fired fryers have an integrated filtration system to keep oil clean for longer while reducing downtime.

Each fryer in this package features an 18" x 18" fry area in a single fry tank made from stainless steel with a smooth peened finish for easy cleaning and maintenance. The fry tanks each hold 75 lbs of oil and the oil is heated with Pitco’s Solstice Supreme Burner Technology. The burners are extremely reliable, self-cleaning, and downdraft protection. These burners are extremely reliable since they don’t use blowers that can fail.

A simple solid-state thermostat is used to control each fryer’s cooking temperature. The Intellifry I-12 Computer or Digital controls can be installed on any of the fryers in this package to give you more advanced controls. For controls that provide easily repeatable results with minimal training, the Intellifry I12 Computer is your best bet. This controller package is user-programmable for up to a dozen different menu items to get the best results every time. The simpler digital controls offer two timers and are best if you don’t need all the bells and whistles. To keep everyone in the kitchen safe all fryers come with a drain valve interlock and high-temperature limit switch.

The two-step filtration system on this fryer package provides quick and easy filtration that reduces downtime and operational costs. Since filtration keeps the oil clean for extended periods oil doesn’t need to be replaced as often.

The cabinets of these fryers feature stainless steel construction for the doors, sides, and fronts making cleaning and maintenance a breeze. Each fryer uses 105,000 BTU/hr of gas.

Solstice Supreme High Efficiency Prepackaged Fryer System with Solstice Filter Drawer System, gas, (4) 75 lb. oil capacity full tanks, solid state controls, boil out & melt cycle, drain valve interlock, matchless ignition, self-clean burner, downdraft protection, stainless steel tank, front & sides, under-fryer drawer filtration, total 420,000 BTU (-FFFF), ENERGY STAR®, CSA, NSF, CE

Standard Features & Accessories:
  • Drain Extension
  • Integrated flue deflector
  • Drain Line Clean out rod
  • Fryer cleaner sample packet
  • Tank - stainless steel construction
  • High-Temperature safety limit switch
  • Heavy duty 3/16” bottom door hinge
  • Cabinet - stainless front, door and sides
  • Removable basket hanger, requires no tools
  • High-Efficiency design, EnergyStar performance
  • Separate Manual gas shutoffs, for front servicing
  • Solid State T-Stat with melt cycle & boil out mode
  • Tube rack, allows crumbs & debris into cool zone
  • 1 ¼” (3.2 cm) Full port drain valve for fast draining
  • Solstice Burner Technology, No blower or ceramics
  • 9” (22.9 cm) adjustable legs, easier access to clean
  • Patented Self Cleaning Burner & Down Draft Protection
  • Choice of basket options: 2-Twin Baskets and 1-Full Basket (not available on SSH55T or Basket Lifts)
  • DVI drain valve interlock safety system turns the heat off preventing the oil from scorching / overheating.
  • Matchless Ignition automatically lights the pilot when the power is turned on and saves you money during off times
Options & Accessories: (Additional Cost)
  • Tank cover
  • Fish Grids (not available on 55T)
  • Institutional Prison security package
  • Digital Controller (2 timers w/melt cycle)
  • Consult Factory for other basket configurations
  • SPINFRESH, see spec sheet L10-524 for details
  • Splash Guard reversible (L/R): 6", 8", 12" and 18"
  • BNB Dump Station, see BNB spec sheet L10-269
  • Stainless Steel back (not available with basket lift)
  • 3-Triple Baskets (not available on 55T or Basket Lifts)
  • Backup thermostat (only on Digital and I-12 computer)
  • Flexible gas hose with disconnect and restraining cable
  • 9”(22.9 cm) adjustable,non-lock rear & front lock casters
  • Work Shelves call factory for specifications and availability
  • Intellifry I-12 Computer (12 elastic timers w/melt & boil out)
  • Basket Lift (must be ordered with Digital Control or Computer)
  • Filter System options (See Spec Sheet): SoloFilter (L10-267) and Filter drawer (L10-134)
  • (To meet AGA/CGA/CSA specification, must be ordered with casters & installed with flexible gas hose w/restraining cable)
Applications
HIGH EFFICIENCY SERIES OF GAS FRYERS - For Energy Saving High Production Frying specify Pitco Model SSH55(R), 55T(R), 60(R), 60W(R),75(R) tube fired gas fryers with Solstice Supreme Burner Technology which provides very dependable atmospheric heat transfer and fuel saving ENERGYSTAR performance without the need for complex power blowers. This patented atmospheric burner system with its long lasting alloy heat baffles reaches up to 70% thermal efficiency and delivers lower flue temperatures. New Patented Self Cleaning Burner goes through a daily 30 second cleaning cycle to keep your burners tuned to operate in the most energy efficient manner. Ventilation troubles are virtually eliminated with the Patented Down Draft Protection that safely monitors your fryer, making this a low maintenance, highly reliable fryer. High volume restaurants and multi-store chains can benefit from lower operational energy cost and lower annual maintenance and repair cost.
Options
General Warranty
Oil Reclamation
Standard baskets
Filter accessories
Splashguard
Stainless steel back
Controls
Gas type
Mounting options
Specifications
BTU 420,000 BTU
BrandPitco Frialator
Energy EfficiencyEnergy Star
Energy_EfficiencyEnergy Star
CertificationsCE
Weight1084.00
You May Also Need


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

CE

CE

The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
