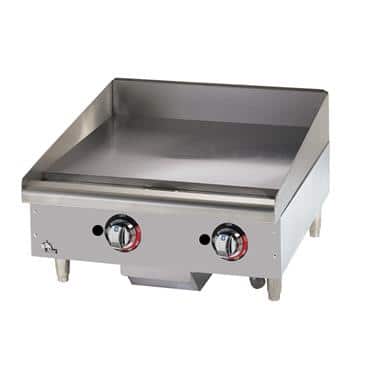

Star Mfg. 624TSPF Star-Max Heavy Duty Griddle

Made in USA
Star Mfg. 624TSPF Star-Max Heavy Duty Griddle
Free Freight
Price $2,156.55

here for more information

Price $1,656

You will earn 1,656 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $41.53/mo.

Request a Quote

Made inUSA
Width (in)24.00
Height (in)15.50
Depth (in)29.00
You May Also Need

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Star-Max® Heavy Duty Griddle, gas, countertop, 24" W x 21" D cooking surface, 1" thick steel griddle plate, electronic snap-action thermostat every 12", heavy duty knobs, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, welded steel frame with stainless steel front, 4" legs, 56,600 BTU, cULus, UL EPH Classified, Made in USA, (ships Natural gas includes LP conversion kit)
Standard Features:
  • NEW longer lasting, heavy-duty metal knobs.
  • Large 4-1/2 quart stainless steel grease drawer.
  • An automatic safety pilot for each burner for safe and easy operation.
  • Double wall construction and enclosed bottom helps reduce heat loss.
  • Heavy-duty 4” adjustable legs to fit your countertop line-up requirements.
  • Spatula wide 3-1/4” front grease trough and grease chute for easy cleaning.
  • Available in 24", 36" and 48" widths to meet your space and volume requirements.
  • Gas convertible in the field with conversion kit supplied. Units are shipped Natural Gas.
  • Cool-to-the-touch stainless steel bull nose front provides knob protection and comfortable work zone.
  • Heavy-duty body construction with stainless steel front, side panels, bull nose and 4-1/2" high tapered splash guard.
  • NEW highly polished 1” thick polished steel plate for superior heat distribution, fast recovery and energy efficient operation.
  • “U”-shaped 28,300 BTU aluminized steel burner every 12” of cooking surface provides even heat distribution and maximum performance.
  • NEW throttling thermostat inserted into the griddle plate 5/16” from the cooking surface, adjusts from 150° to 450°F providing quick response to surface temperature change.
  • For breakfast, lunch or dinner, Star-Max throttling thermostatic griddles provide flexibility for a variety of menu items.
Quality Construction:
  • Griddles operate on Natural or Propane gas.
  • These units are approved for installation within 6" of non-combustible surfaces.
  • Star-Max® griddles feature 1” thick polished steel griddle plate 4-1/2” high wrap-around stainless steel splash guard and 3-1/4" wide front access grease trough with 4-1/2 quart grease drawer capacity.
  • Includes a 28,300 BTU aluminized burner every 12" of width controlled by a throttling thermostatic with safety pilot, 3/4" N.P.T. male gas connection with convertible pressure regulator, and 4" adjustable legs.
  • Star-Max® gas griddles are covered by Star’s TWO YEAR parts and labor warranty.
Gas griddles are constructed with stainless steel panel and double wall aluminized steel side panels. Griddle plate is 1" (2.54 cm) thick, 4-1/2" high tapered wrap-around stainless steel splash guard come standard. Unit has a 3-1/4" (8.3 cm) wide front grease trough with grease chute and a 4-1/2 quart (4.26 L) stainless steel grease drawer. Unit is heated by 28,300 BTU alu mi - nized steel burner for every 12" (30.5 cm) of griddle width and is controlled by a throttling type thermostat embedded into griddle plate. Thermostat knobs are protected by a stainless steel bull nose front. An au to mat ic safety pilot is provided for each burner. Griddles are supplied with 4" (10.2 cm) high die cast nickel plated steel legs that have a 1-3/8" (3.5 cm) adjustment. Gas connection is 3/4" N.P.T. male and a convertible pressure regulator is provided. Units are approved for installation within 6" (15.2 cm) of combustible and non-combustible surfaces and are UL Gas certified and Ul Sanitation listed. Printed in the U.S.A.

NOTE! This is a general product line video and does not necessarily reflect the listed model.

Star Mfg. 624TSPF Star-Max Heavy Duty Griddle


UL (Underwriters Laboratories) approval for the US and Canada



UL has tested representative samples of this product and determined that the product meets specific, defined requirements.



Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.
