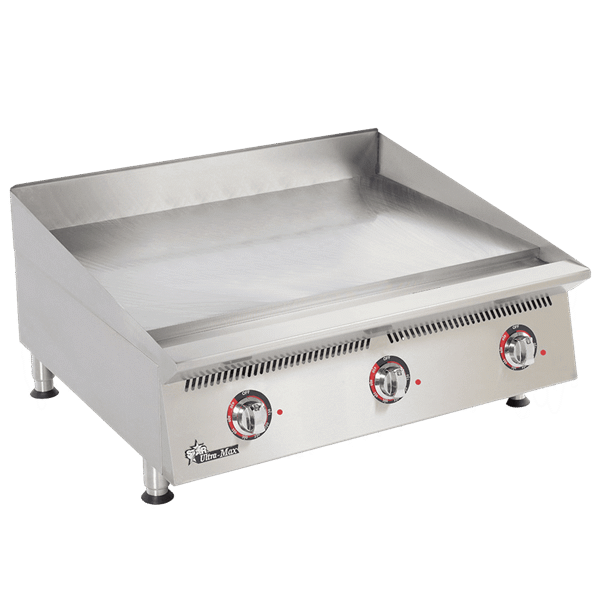

Star Mfg. 836TCHSA Ultra-Max Griddle

Star Mfg. 836TCHSA Ultra-Max Griddle

836TCHSA
Made in USA
Star Mfg. 836TCHSA Ultra-Max Griddle

You will earn 5,113 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $128.23/mo.
Free Freight
Description
Ultra-Max® Griddle, countertop gas, 36" W x 24" D cooking surface, 1" thick T1 steel hexavalent chrome griddle plate, 150° - 550° F embedded mechanical snap-action thermostat every 12", 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 90,000 BTU, cULus, UL EPH Classified, Made in USA
Standard Features:
  • Longer lasting, heavy-duty metal knobs.
  • Standing pilot light for consistent performance.
  • Extra-heavy 4” adjustable legs to fit your countertop needs.
  • Spatula wide 3-1/2” front grease trough and grease chute for easier cleaning.
  • Floor model stands available for free standing unit. Optional casters available.
  • Large 6 quart stainless steel grease drawer (2 drawers on 50” and 72” models).
  • Gas convertible in the field conversion kit supplied. Units are shipped Natural Gas.
  • Ergonomically advanced front panel providing easy access and viewing of controls.
  • Ultra-Max high capacity 24” deep cooking surface is ideal for high volume operations.
  • Available in 24”, 36”, 48”, 60” and 72” widths to meet your space and volume requirements.
  • Cool-to-the-touch stainless steel bull nose front provides knob protection and comfortable work zone.
  • Cool-to-the-touch stainless steel bull nose front provides knob protection and comfortable work zone.
  • All stainless steel construction and front panel for long lasting attractive appearance and ease of cleaning.
  • Custom designed steel 30,000 BTU burner every 12" of cooking surface provides superior cooking performance.
  • Heavy-duty construction with all welded body construction and stainless steel front, side panels, bull nose and splash guard.
  • Highly polished 1" thick steel plate for superior heat distribution, fast recovery and energy efficient operation. Heavy-duty chrome plate also available.
  • Unique internal plate sensor accurately measures the temperature of the griddle plate 3/16” from the cooking surface for instant response to surface temperature change and fast recovery.
  • Mechanical snap action control for better turn-down and temperature regulation.Thermostatic provides accurate temperature rated from 150° to 550°F within +/- 20 degrees of set point while providing accurate low temperature performance with snap action control to prevent temperature overshoot.
Applications:
  • Designed for high performance and reliability.
  • Ultra-Max griddles will provide years of trouble free operations.
  • Ultra-Max mechanical snap action thermostat gas griddles will exceed your food service operations expectations.

Construction:

  • Includes a 30,000 BTU aluminized steel burner every 12" of width, 3/4" N.P.T. male gas connection with convertible pressure regulator, and 4" adjustable legs.
  • Ultra-Max mechanical snap action griddles feature 1" thick highly polished steel or chrome griddle plate with 5" tapered stainless steel splash guard and 3-1/2" wide front access grease trough with 6 quart grease drawer capacity.
Warranty:
  • Ultra-Max gas griddles are covered by Star’s THREE YEAR parts and labor warranty
Specifications:
Gas griddles are constructed of stainless steel body and polished steel griddle plate, valve knobs are protected by a stainless steel bull nose front. Griddle plate is 1” (2.54 cm) thick highly polished steel or chrome plate with a 5” (12.7 cm) high tapered wrap-around stainless steel splash guard. Unit has a 3-1/2” (8.3 cm) wide front grease trough with grease chute and a 6 qt. (5.68L) capacity stainless steel grease drawer. Models 860TA and 872TA house two each 6 quart grease drawers. Units are equipped with a 30,000 BTU aluminized steel burner for every 12” (30.5 cm) of width and are controlled by a manual snap action control valve, 3/4” N.P.T. male gas connection with convertible pressure regulator. Griddles are supplied with 4” (10.2 cm) high stainless steel legs that have a 1-5/8” (4.5cm) adjustment. Units are approved for installation within 6” (15.2 cm) of combustible and non-combustible surfaces and are UL Gas Fired Listed for U.S. and Canada and UL classified to NSF Standard 4 Sanitation. Printed in the U.S.A.
Options
Chrome plating warranty
Gas type
Warranty
Specifications
BrandStar
Made inUSA
CertificationscULus
BTU90,000 BTU
Width (in)36.00
Height (in)18.00
Depth (in)34.20
Weight409.00
You May Also Need


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.
