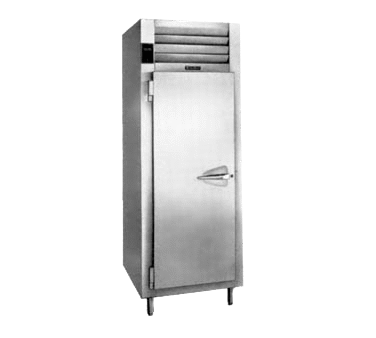

Traulsen ACV132WUT-FHS Spec-Line Refrigerator/Freezer Convertible

Traulsen ACV132WUT-FHS Spec-Line Refrigerator/Freezer Convertible

ACV132WUT-FHS
Traulsen ACV132WUT-FHS Spec-Line Refrigerator/Freezer Convertible
$12,445.79
Free Freight
$11,766
Free Freight

You will earn 11,766 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

Contact us for your price


Call 800-555-0666     CHAT
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Contact us for your price


Call 800-555-0666     CHAT
Mon-Fri 9AM-8PM, Sun 12-6PM ET

FINANCEFOR $980.11/mo.
Regularly Stocked
Request a Quote

  • 2020 model, meets the newest EPA and DOE codes.
  • Usually ships in 4-6 weeks
Description
Spec-Line Refrigerator/Freezer Convertible, Reach-in, one-section, self-contained refrigeration, (flip a switch), stainless steel exterior, aluminum interior, standard depth, wide full-height door or doors with Santoprene® EZ-Clean Gaskets, (3) adjustable wire shelves per section, microprocessor controls, 1/2 HP

Standard Features:
  • Biased Return Air Duct
  • 9' Cord & Plug Attached
  • Stainless Steel Breaker Caps
  • Microprocessor Control System
  • Five Year Compressor Warranty
  • Scroll Blower Type Evaporator Fan
  • Gasket-Protecting Metal Door Liner
  • Guaranteed For Life Cam-Lift Hinges
  • Three Year Parts And Labor Warranty
  • R-Series: Stainless Steel Exterior & Interior
  • Magnetic Snap-In EZ-Clean Door Gasket(s)
  • Stainless Steel One-Piece Louver Assembly
  • Automatically Activated Incandescent Lights
  • Automatic Non-Electric Condensate Evaporator
  • Thermostatic Expansion Valve Metering Device
  • Full or Half Length Stainless Steel Doors With Locks
  • Controllable Anti-Condensate Door Perimeter Heaters
  • Set of Four (4) 6" High Adjustable Stainless Steel Legs
  • Guaranteed For Life Horizontal Work Flow Door Handle
  • Standard Door Hinging: 132W = Right, 232W = Left/Right
  • Self-Closing Doors With Stay Open Feature At 120 Degrees
  • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
  • Balanced, Self-Contained Refrigeration System Using R-404A
  • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory)
Options & Accessories:
  • Remote Applications
  • Additional Wire Shelves
  • Stainless Steel Shelves
  • Re-Hinging Feature For Door(s)
  • Kool Klad Exterior Laminate Decor
  • Bare Tube Coil (132W & 232W only)
  • Prison/Correctional Facilities Options
  • EZ-Open Foot Pedal (full height doors only)
  • Locking Hasps (padlocks supplied by others)
  • Set of Four (4) 6" High Casters In Lieu of Legs
  • 4-1/2" High Stainless Steel Base In Lieu of Legs
  • Stainless Steel Finished Back With Rear Louvers
  • Set of Four (4) 4-5/8" High Casters In Lieu of Legs
  • 6" High Stainless Steel Kickplate (for use with standard legs)
  • EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves)
  • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section)
  • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
  • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C.
Specifications:
Construction, Hardware and Insulation
  • Cabinet exterior, including front, one piece sides, louver assembly and doors are constructed of heavy gauge stainless steel. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). Exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. Adjustable 6" high stainless steel legs are included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handle is mounted horizontally over recess in door which limits protrusion from door face into aisleways. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Cabinet and door contains high density, non-CFC, foamed in place polyurethane insulation.
Refrigeration System
  • A top mounted, self-contained, balanced refrigeration system using R-404A refrigerant is conveniently located behind the one piece louver assembly. It features a plenum effect blower coil, large, high humidity evaporator coil located outside the food zone, top mounted non-electric condensate evaporator, and an automatic preset time activated electric defrost. A face mounted key switch is provided to convert operation from freezer to refrigerator mode. Standard operating temperature in freezer mode is 0 to -5°F. Operating temperature in refrigerator mode is 34 to 38°F. Operating temperatures are not adjustable.
Controller
  • The water resistant digital microprocessor control is provided. It includes an 3-digit LED temperature display in addition to features such as a defrost lock-outs and indicator light.
Interior
  • Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Both standard and EZ-Change interior arrangements are installed at the factory.
Warranties
  • Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard.

Options
Tray slides & shelves
Export crating
Refrigeration options
Door hinging
Options & accessories
Mounting options
Voltages
Specifications
Half DoorsNo
ConstructionStainless Steel and Aluminum
BrandTraulsen
Refrigerant TypeR-404A
Number of Doors1
Split DoorsNo
Refrigeration SystemSelf-contained
ControlsMicroprocessor
Capacity24.2 cu. ft.
Compressor LocationTop Mounted
Door TypeSolid
Door DesignSwing
MaterialAluminium
Sections1
Voltage115 Volts
Width (in)29.88
Height (in)83.25
Depth (in)35
Weight455
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Features
Refrigeration System: A top mounted, self-contained, balanced refrigeration system using R-404A refrigerant is conveniently located behind the one piece louver assembly. It features a plenum effect blower coil, large, high humidity evaporator coil located outside the food zone, top mounted non-electric condensate evaporator, and an automatic preset time activated electric defrost. A face mounted key switch is provided to convert operation from freezer to refrigerator mode. Standard operating temperature in freezer mode is 0 to -5°F. Operating temperature in refrigerator mode is 34 to 38°F. Operating temperatures are not adjustable.
Warranties: Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard.
Interior: Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Both standard and EZ-Change interior arrangements are installed at the factory.
Options & Accessories: • Stainless Steel Finished Back With Rear Louvers • Re-Hinging Feature For Door(s) • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C. • No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet Pans (chrome rod type, equips 1/2 section) • Universal Type Tray Slides To Accommodate Either (1) 18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table Pans, Adjustable To 4" O.C. • Additional Wire Shelves • EZ-Change Interiors (#1, universals, universal heavy duty tray slides and shelves) • EZ-Open Foot Pedal (full height doors only) • Bare Tube Coil (132W & 232W only) • Locking Hasps (padlocks supplied by others) • Stainless Steel Shelves • Kool Klad Exterior Laminate Decor • Set of Four (4) 6" High Casters In Lieu of Legs • Set of Four (4) 4-5/8" High Casters In Lieu of Legs • 4-1/2" High Stainless Steel Base In Lieu of Legs • 6" High Stainless Steel Kickplate (for use with standard legs) • Prison/Correctional Facilities Options • Remote Applications
Standard Product Features: • R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • Microprocessor Control System • Balanced, Self-Contained Refrigeration System Using R-404A • Scroll Blower Type Evaporator Fan • Biased Return Air Duct • Full or Half Length Stainless Steel Doors With Locks • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges • Guaranteed For Life Horizontal Work Flow Door Handle • Standard Door Hinging: 132W = Right, 232W = Left/Right • Automatically Activated Incandescent Lights • Stainless Steel Breaker Caps • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory) • Automatic Non-Electric Condensate Evaporator • Magnetic Snap-In EZ-Clean Door Gasket(s) • Gasket-Protecting Metal Door Liner • Controllable Anti-Condensate Door Perimeter Heaters • Thermostatic Expansion Valve Metering Device • Stainless Steel One-Piece Louver Assembly • 9' Cord & Plug Attached • Set of Four (4) 6" High Adjustable Stainless Steel Legs • Three Year Parts And Labor Warranty • Five Year Compressor Warranty
Construction, Hardware and Insulation: Cabinet exterior, including front, one piece sides, louver assembly and doors are constructed of heavy gauge stainless steel. Cabinet interior and door liners are constructed of stainless steel (anodized aluminum in the A-Series). Exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. Adjustable 6" high stainless steel legs are included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges include a switch to automatically activate the interior incandescent lighting. Guaranteed for life, work flow door handle is mounted horizontally over recess in door which limits protrusion from door face into aisleways. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. Cabinet and door contains high density, non-CFC, foamed in place polyurethane insulation.
Controller: The water resistant digital microprocessor control is provided. It includes an 3-digit LED temperature display in addition to features such as a defrost lock-outs and indicator light.
