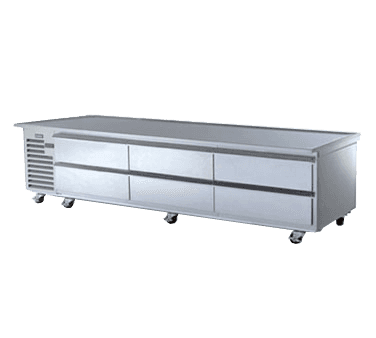

Traulsen TE110HR Spec-Line Refrigerated Equipment Stand

Traulsen TE110HR Spec-Line Refrigerated Equipment Stand
Regularly Stocked
Free Freight
Price $16,863.66

Contact us for your price

Call 800-555-0666     CHAT
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Contact us for your price

Call 800-555-0666     CHAT
Mon-Fri 9AM-8PM, Sun 12-6PM ET

You will earn 16,097 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

Request a Quote

FINANCEFOR $380.21/mo.

  • 2019 model, meets the newest EPA and DOE codes.

MaterialStainless Steel
Number of Drawers6
Width (in)110
Height (in)26
Depth (in)34
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Spec-Line Refrigerated Equipment Stand, 110" long, (12) 12" x 20" x 6" deep pan capacity, side by side, (6) drawers, remote, microprocessor control, stainless steel marine top, stainless steel interior & exterior, 4" casters, INTELA-TRAUL™, cULus, NSF

Standard Features:
Traulsen's TE Series refrigerated equipment stands are intended for use with griddles where cabinet strength and system performance really matter. Their rear mounted evaporators keep food cold in very warm kitchen environments despite frequent drawer openings. They also offer greater capacity, as each drawer accommodates 6" deep pans, and a variety of other features making them ideal for the equipment stand application. Drawers include a stay open and self closing feature, as well as a guard to protect the gasket from damage. Grease accumulation on the condenser is prevented by an easy to remove and clean filter. Even installation is facilitated through use of factory installed casters mounted on an adjustable rail, making it easy to position these around such common floor obstructions as drains, junction boxes, and gas connections.
  • Condenser Filter
  • Off- Cycle Evaporator Defrost
  • Five Year Compressor Warranty
  • Stainless Steel Exterior & Interior
  • Three Year Parts And Labor Warranty
  • 14-Gauge Stainless Steel Drawer Slide
  • Magnetic Snap-In EZ-Clean Door Gasket(s)
  • Self-Closing Drawers With Stay Open Feature
  • Full Length Drawer Handle With Gasket Guard
  • Non-Electric Automatic Condensate Evaporator
  • NEMA 5-15P Plug With 9' Cord & Cord Retainer
  • Stainless Steel Top w/Drip Guard (marine) Edge
  • INTELA-TRAUL®  Microprocessor Control System
  • 4" Casters On Adjustable Channel Moving System
  • Controllable Anti-Condensate Drawer Perimeter Heaters
  • Front-Breathing Design For "Zero-Clearance" Installation
  • Drawers Accommodate 12" x 20" x 6" Pans (pans by others)
  • Balanced, Self-Contained Refrigeration System Using R-404A
  • Side, Front & Rear Access Panel For Ease of Service & Maintenance
Options & Accessories:
  • Export 220/50/1 Voltage
  • System Relocated To Right
  • 6" Cabinet Length Extension
  • Stainless Steel Exterior Finished Back
  • NAFEM Data Protocol Gateway Package
  • Set Of 6" High Stainless Steel Legs in Lieu Of Casters
  • Remote Applications (see spec TR35837 for more details)
  • Water Cooled Self-Contained Condenser Suitable for Connection To Glycol
Construction, Hardware and Insulation
  • Cabinet exterior front, sides, louver assembly and drawers are constructed of 20-gauage 430 stainless steel, exterior back and bottom are constructed of heavy gauge galvanized steel. Cabinet interior sides are constructed of 22-gauge 400 series stainless steel, top and bottom are constructed of 22-gauge 300 series stainless steel. A set of 4" high casters are included standard. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Both the cabinet and drawers are insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
  • The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready. Optional hardware required to be NDP compliant (3rd party software required for network connection). It includes a 3-Digit LED Display, °F or °C Temperature Scale Display Capability, and an RS485 data port. In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
Refrigeration System
  • The left side mounted, self-contained, balanced refrigeration system using R-404Arefrigerant features an off-cycle defrost, capillary tube, air-cooled hermetic compressor, automatic condensate evaporator, and a dedicated rear-mounted evaporator design which distributes cold air through each drawer section. A 9' cord and retainer is provided. Standard operating temperature is 34 to 38°F.
  • Each heavy-duty drawer is designed to accommodate 12" x 20" x 6" deep pans. They are constructed using 14-gauge stainless steel drawer slides and 2" diameter stainless steel rollers. Drawers include both a self-closing and stay-open feature.
  • Both a three year parts and labor warranty and a five year compressor warranty (selfcontained models only) are provided standard.

Finish back
Base option
Legs & casters
