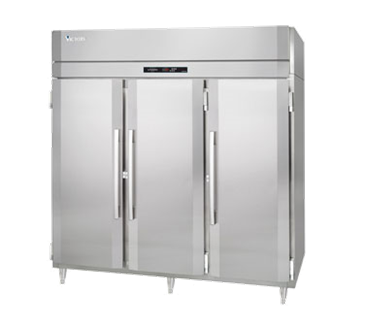

Victory Refrigeration RSA-3D-S1-PT UltraSpec Series Refrigerator Featuring

Made in USA
Victory Refrigeration RSA-3D-S1-PT UltraSpec Series Refrigerator Featuring
Free Freight
Price $13,796.01
Price $12,781

You will earn 12,781 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $301.89/mo.

Request a Quote

  • 2019 model, meets the newest EPA and DOE codes.

BrandVictory Refrigeration
Made inUSA
Width (in)77.75
Height (in)84.25
Depth (in)39.25
You May Also Need

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

UltraSpec Series Refrigerator Featuring Secure-Temp 1.0" Technology, Pass-thru, three-section, self-contained refrigeration, 75.9 cu. ft. capacity, (6) hinged doors, (9) shelves, stainless steel exterior, aluminum interior, standard depth cabinet, full height 20 gauge stainless steel doors, V-TEMP electronic temperature control/indicator, LED lighting, expansion valve technology, Santoprene door gaskets with 2 year warranty, stainless steel breakers, 1/2 HP, UL, cUL, NSF, MADE IN USA

Standard Features:
  • Heavy Duty Cylinder Locks
  • Plasticized Evaporator Fin Coils
  • Stainless Steel Interior Door Liner
  • V-TEMP Electronic Control System
  • Non-Electric Condensate Evaporator
  • Cam-Lift Hinges, Guaranteed for Life
  • 6” High, Adjustable Stainless Steel Legs
  • Environmentally Safe R-134a Refrigerant
  • Foamed-in-Place Polyurethane Insulation
  • Anti-Condensate Door Perimeter Heaters
  • Cord and Plug (see electrical data for details)
  • One Piece, Snap-In Magnetic Door Gasket(s)
  • Self-Closing Doors with 120° Hold Open Feature
  • Hinged Front Shroud Makes Condenser Cleaning Easier
  • High Performance, Balanced, Top-Mounted Refrigeration
  • Ergonomically Correct Door Handles, Guaranteed for Life
  • Three (3) Epoxy Coated Wire Shelves per Cabinet Section
  • Energy Saving Thermal Breaker Caps, Guaranteed for Life
Options & Accessories:
  • Remote Models
  • Optional Voltages
  • Change Door Swing
  • Stainless Steel Shelves
  • Exterior Laminate Décor
  • Correctional Facilities Options
  • Full and Half-Size Glass Doors
  • Adjustable Tray and Pan Slides
  • FLEXTEMP Performance Mode
  • 6” Overall Height Casters (set of 4)
  • 5 Year Compressor Warranty
  • 3 Year Parts and Labor Warranty
  • Secure-Temp 1.0™ is the industry’s first and only full service temperature monitoring solution for your kitchen. Secure-Temp 1.0™ is standard on all Victory models and is HACCP compliant and meets NAFEM’s data protocol. There is NO software or monthly monitoring fees. Optional add on kits are available for additional units in your kitchen that you want to monitor.
Cabinet Construction
  • The cabinet front and doors are constructed of heavy gauge, polished stainless steel to maintain an attractive appearance after years of heavy use. Polyurethane foam insulation throughout ensures the ultimate in energy efficiency. The front shroud lifts up to for easy access when cleaning the condenser unit.
Door Construction
  • The doors are heavy gauge, polished stainless steel with a stainless steel interior liner. Each door is provided with a cylinder lock and ergonomically correct vertical handle. The door hinges are self-closing and have a hold-open feature at 120° which facilitates product loading. Proximity switches energize the recessed interior incandescent lighting when the door is opened. Humidity control wires around the door jamb prevent condensation from forming on the front of the cabinet in high humidity environments. The wires are concealed by a high impact, non-conducting thermal breaker cap.
Refrigeration System
  • All components of the high efficiency, air-cooled, self-contained refrigeration system are mounted on top of the cabinet out of the food storage zone providing greater usable storage space. Environmentally friendly R-134a refrigerant is efficiently metered by an expansion valve providing a constant, safe operating temperature and quick “recovery” under the most demanding conditions. The hermetically sealed systems are designed to operate at 38° F. Each cooling coil has plasticized fin coils to resist food acids and dualspeed EC fan motor(s) for greater cooling capacity and efficiency. All condensate water is disposed of automatically by the energy efficient, non-electric condensate evaporator.
  • Interior Storage Arrangements
  • Each cabinet section is provided with three heavy-duty, epoxy coated wire shelves. The shelves are adjustable in one inch increments. A wide door opening allows for the use of a variety of optional pan slide configurations including 18” x 26” and 12” x 20” pans.
V-TEMP Control System
  • The easy to use V-TEMP Control is provided standard. This durable, water resistant microprocessor monitors and controls the entire temperature maintenance process. It includes an ON/OFF switch, manual defrost, interior light switch, LED temperature indicator in ° C or ° F, a HI/LO audio/visual temperature alarm, power supply interruption, door ajar and “clean condenser” alarms. A manager’s “lock-out” feature is provided to safeguard pre-determined control settings. A HAACP Event Indicator/Memory feature announces and records up to nine (9) alarm events. Unique to the V-TEMP are two standard modes of operation:
    • ENERGY SAVING - The cabinet automatically reverts to the energy saving mode when there are no door openings for four hours.
    • SUPERCOOL - Provides a lower “set-point” refrigeration condition for a set period of time when food has just been loaded into the refrigerator and needs to be quickly brought back down to a safe temperature.
    • A FLEXTEMP mode of operation is available as an option. FLEXTEMP provides the ability to select a unique temperature from 28° F to 40° F. This optional feature is ideal for seasonal menu changes and items with specific temperature requirements for dairy, meat, fish or poultry.

FlexTemp & USB Data Logger
Prison options
Rear/Server side door hinging
Control/Kitchen side door hinging
Cabinet options
Door options
Parts & labor warranty
Interior options
Mounting options
