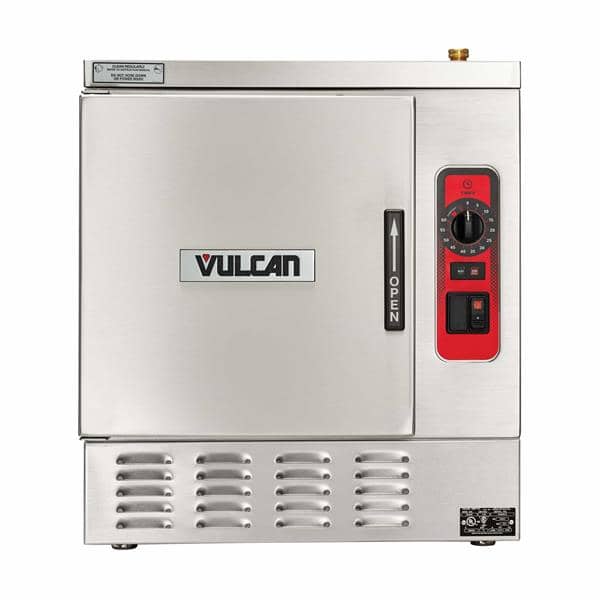

Vulcan C24EA3 PLUS Convection Steamer

C24EA3 PLUS
Made in USA
Vulcan C24EA3 PLUS Convection Steamer
Regularly Stocked
Free Freight
Price $5,475

Contact us for your price


Call 800-555-0666     CHAT
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Contact us for your price


Call 800-555-0666     CHAT
Mon-Fri 9AM-8PM, Sun 12-6PM ET

You will earn 4,760 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $119.38/mo.



Specifications
BrandVulcan
Made inUSA
CertificationscULus
Width (in)24.00
Height (in)19.50
Depth (in)33.00
Weight140.00
You May Also Need


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description

Standard Features:
  • Cord strain relief.
  • High output stainless steel steam generator.
  • Smart Drain System (timed drain) with PowerFlush.
  • Illuminated power switch with cook and ready lights.
  • Split water line connection. 11⁄2" NPT drain connection.
  • Heavy duty door and door latch mechanisms with gasket guard.
  • Stainless steel exterior and cooking compartment with curved interior corners.
  • Professional controls with 60-minute timer, buzzer and constant steam feature, cook/ready lights and power switch.
  • Shipped for 208/60-50/3 electrical service. Can be field converted to 208/60-50/1 and 240/60-50/3 and 240/60-50/1.
Options
  • Second year extended limited parts and labor warranty contract.
  • SonicSafe™ Ultrasonic Scale Prevention for automatic protection against mineral buildup, includes second year extended limited parts and labor warranty.
Accessories (Packaged & Sold Separately)
  • 4" Adjustable counter legs.
  • Pull-out 12" x 20" sliding rack (cooking compartment).
  • CB15K Carbon Block filtration (for water treatment with SonicSafe™ Ultrasonic Scale Prevention).
  • Flex stainless steel water connection 72" 3⁄4" female NSHT on both ends, 2 required and 3 with filter system.
  • Cord and plug set, 480v/3ph (rated to 30 amps) 72": STRAIGHT PLUG HBL2731 NEMA L16-30 (CORDPLG-5PAN480).
  • Cord and plug set, 208-240v/1ph (rated to 45 amps) 72": ANGLED PLUG HBL9462C NEMA 14-60 (CORDPLG-3PAN1P).
  • Cord and plug set, 208-240v/3ph (rated to 40 amps) 72": ANGLED PLUG HBL8462C NEMA 15-60 (CORDPLG-3PAN3P).
  • Cord and plug set, 208-240v/3ph (rated to 55 amps) 72": ANGLED PLUG HBL8462C NEMA 15-60 (CORDPLG-5PAN3P).
  • Steamer Security Package, includes controls protected by lockable cover, perforated flue cover, security fasteners & tack-welds.
  • SMF600 ScaleBlocker® water treatment system, includes second year warranty (for water treatment without SonicSafe™ Ultrasonic Scale Prevention).
  • Open leg 24"w stand with shelf and 1 set of adjustable pan slides.
    • 28" h
    • 34" h
    • Locking casters
  • Stacking kit for two units with hardware, counter mount or on 15" and 28" stands. Note: Only a single 3 or 5 pan steamer or two 3 pan steamers can be stacked on a 28"h stand. Single 3 or 5 pan steamers only on a 34"h stand. Any combination of two steamers can be stacked on a 15" stand.
    • Locking casters
    • 15" open leg stand
    • Single point electrical connection kit for stacked units, 3-phase only.
Specifications
Single compartment electric convection steamer. Professional Controls with 60-minute timer, buzzer and constant steam feature, cook/ready lights and power switch. High output stainless steel generator with SmartDrain and Powerflush along with 2-speed staged water fill for superior heat-up and steam quality. Stainless steel exterior and cooking compartment with coved interior corners. Heavy duty door and door latch mechanism with door gasket guard. Shipped for 208/60-50/3 electrical service. Can be field converted to 208/60-50/1, 240/60-50/3 and 240/60-50/1. Split water line connection. 11⁄2" NPT drain connection.
Options
Water Treatment Solutions
Standard warranty
Notes
Extended warranty
Voltages
cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.
