Champion 90 PRO-HD Pro Series

Name: Champion 90 PRO-HD Pro Series
Brand: Champion
SKU: 90 PRO-HD
Price: 61544.0 USD
Availability: InStock

SKU#: 90 PRO-HD

Product photo not available at the moment

OPTIONS
REVIEWS
Q & A
RECOMMENDED ITEMS

Free Freight?

Quick Ship

$61,544.00

Sign-In here for more information

$58,159.08

or enjoy small payments $1,249.84/mo.

Calculate

Product Protection

Starting at

$$$ View Champion Promos

View all Champion Conveyor Type Dishwashers

Champion 90 PRO-HD Specifications

Brand	Champion
Made in	USA
Certifications	NSF
Width (in)	800
Weight	800

Additional Information on Champion 90 PRO-HD

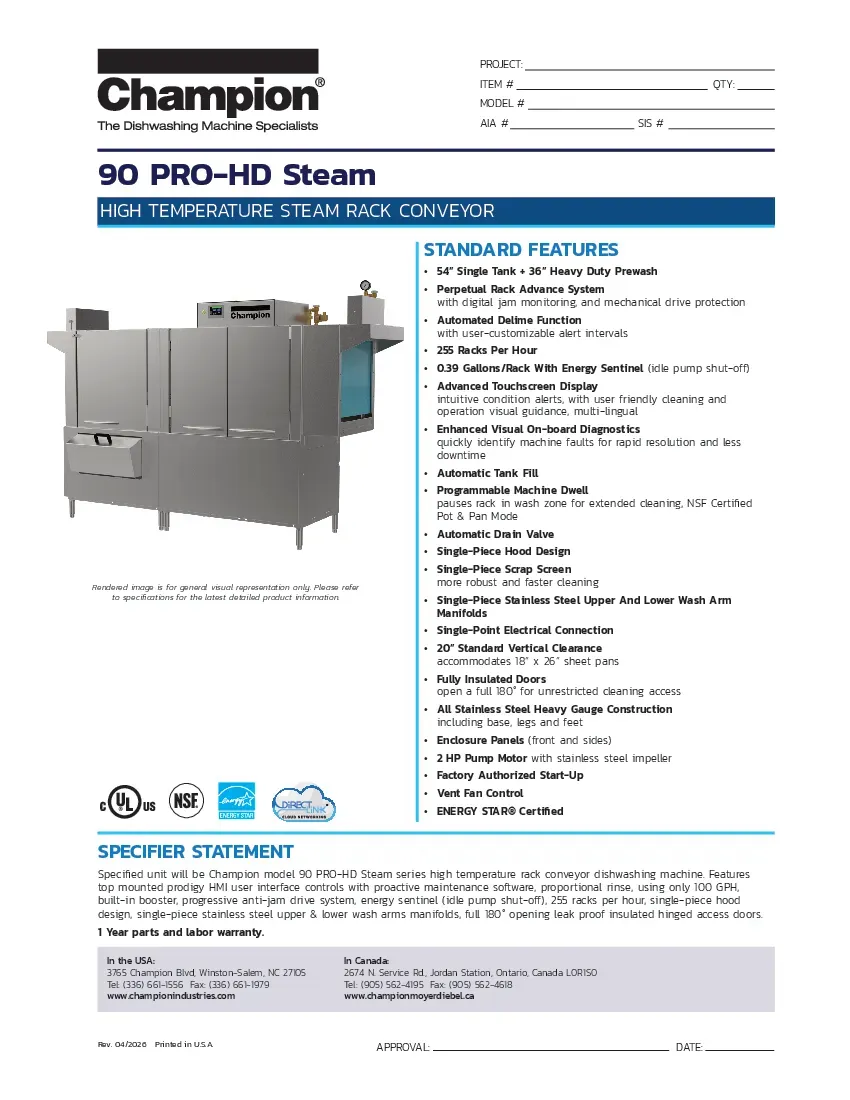

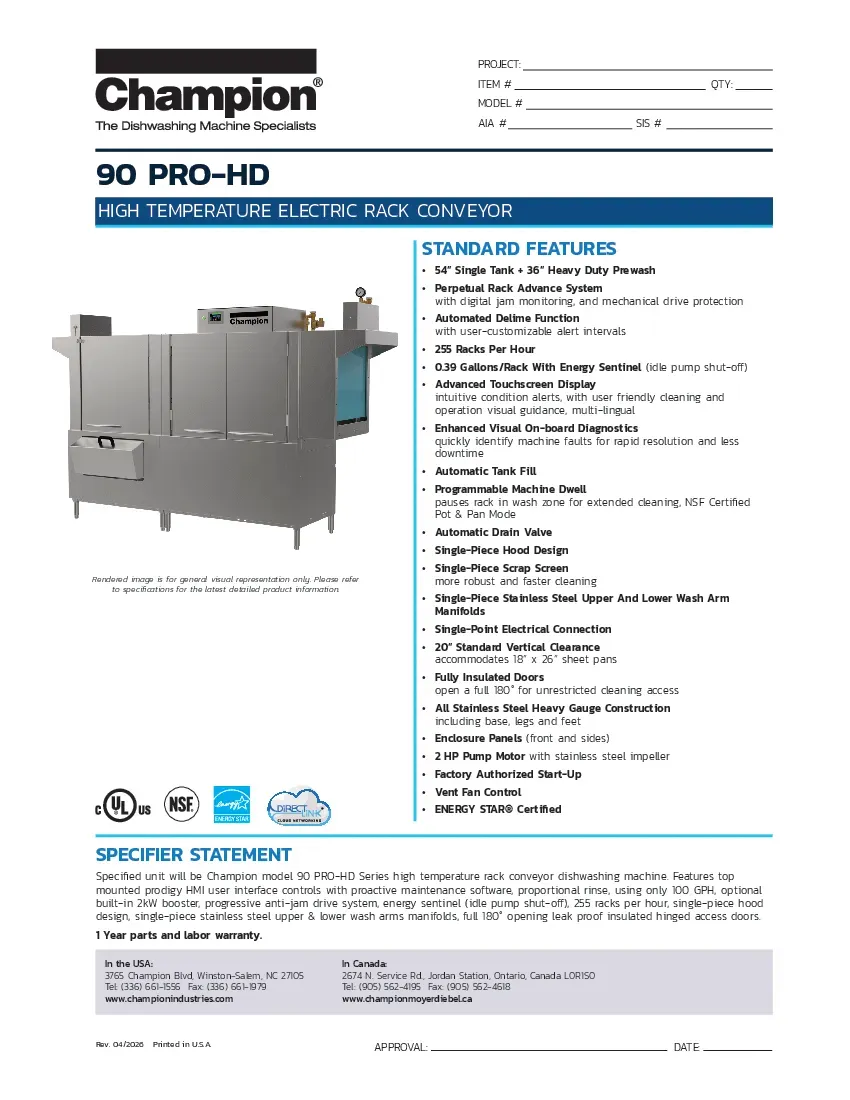

tablesystems.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Champion 90 PRO-HD Certifications

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Champion 90 PRO-HD Description

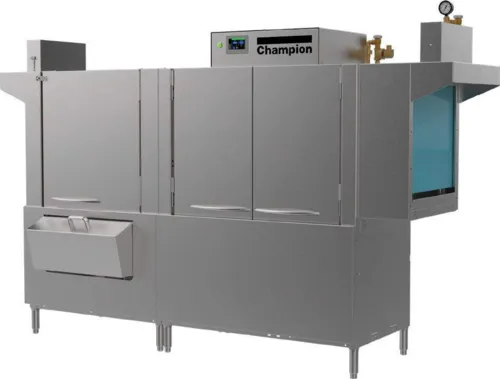

Pro Series, 54” long single tank rack conveyor dishwasher, with 36”, Heavy Duty, pre-wash, Proportional Rinse, Progressive anti-jam drive system, top mounted Prodigy series HMI user interface, Proactive maintenance software, 100 gallons per hour with energy sentinel (idle pump shut-off), 255 racks per hour, single-piece stainless steel upper & lower wash arms manifolds, internal removable scrap basket and dual-piece scrap screens, 20” standard vertical clearance which accommodate 18” x 26” sheet pans, full 90° opening leak proof insulated hinged access doors, automatic tank fill, door safety switches, leak-proof ball valve drains, lower front and side enclosure panels, stainless steel heavy gauge construction including base and legs, electric tank heat, 2 HP pre-wash & wash pump, single point machine & booster connection, vent fan control, stainless steel rear manifolds, NSF, CULus, MADE IN USA

Options for Champion 90 PRO-HD

Side loader

Cantilever side loader, 24", no hood +$6,158.06 Cantilever side loader, 30", no hood +$9,532.34

Detergent & Rinse option

Detergent & Rinse-aid pumps (mounted & inter-wired) +$1,278.33

Heat recovery, drain tempering kit, shock arrestor

Drain water tempering kit (un-mounted) +$1,323.76 Heat recovery system (separate electrical connection for booster heater required) +$5,022.49 Shock arrestor (factory mounted) +$120.05

Blower-dryer or vent cowl hood

Electric blow-dryer, with 48" tunnel +$11,771.05 Extended stainless steel vent cowl with 7" stack & locking damper (set) +$1,784.48 Stainless steel vent cowl with 7" stack & locking damper (set) +$1,641.72 Steam blow-dryer, with 48" tunnel +$11,771.05

Roller Tables

Non-standard lengths must be ordered in 10" increments (consult factory) Roller Conveyor Table, 64", stationary, unload end, includes: whisker style table limit switch +$5,220.40 Roller Conveyor Table, 84", stationary, unload end, includes: whisker style table limit switch +$6,816.69 Roller Conveyor Table, 144", stationary, unload end, includes: whisker style table limit switch +$12,098.74

Hood extension

24" Vertical clearance through machine +$2,157.59 20" High hood vertical clearance for sheet pans (standard)

Water Conditioner

Champion ION scale prevention system, unmounted (1-HW only) +$1,745.54

Tank heat options

Electric tank heat with thermostat & low-water cutoff, 18 kw, standard Stainless steel steam closed coil with thermostat & low-water cutoff (requires 15 psi flow) (Note: amp draw will lower on machine when steam booter is selected, consult factory for total amp draw) +$2,543.69 Steam injector with thermostat & low-water cutoff (requires 15 psi flow) (Note: amp draw will lower on machine when steam booter is selected, consult factory for total amp draw) +$2,543.69

Connection

Single-point electrical connection, standard Two-point electrical connection available (consult factory)

Additional racks

Flat Bottom Dishrack, 20" x 20", additional +$94.09 Peg Dishrack, 20" x 20", additional +$94.09

Limit switch options (must choose one)

Table limit switch, whisker style, includes: 12 ft. pre-wired cord standard (unmounted) Field installation by KEC or authorized installer. +$473.70 Table limit switch, button style, includes: 12 ft. pre-wired cord standard (unmounted) Field installation by KEC or authorized installer. +$473.70

Direction of operation

Left to right operation Right to left operation

Back panel

Stainless steel rear enclosure panels, priced per foot of machine (consult factory for price)

What is included

Warranty: 1 year limited warranty, standard
Note: Complimentary factory authorized performance test included, upon equipment start-up. Consult local Champion sales representative for coordination of the start-up. If customer is beyond 60 miles from Champion authorized service agent, consult factory.
Oversized shipping charge: Oversized units with crated dimension of equal to or greater than 96" for shipping will require an oversize charge. Shipping to a facility without a standard receiving dock could incur additional shipping charges related to service requested. (contact factory for price)
Water Treatment Options:: Note: For water of 3-grains of hardness or more, Champion recommends adding a water treatment device.
