Beverage Air BB48HC-1-G-PT-B Refrigerated Pass-Thru Back Bar Refrigerator
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Beverage Air BB48HC-G-PT-B Accessories
Description
Beverage Air BB48HC-G-PT-B Description

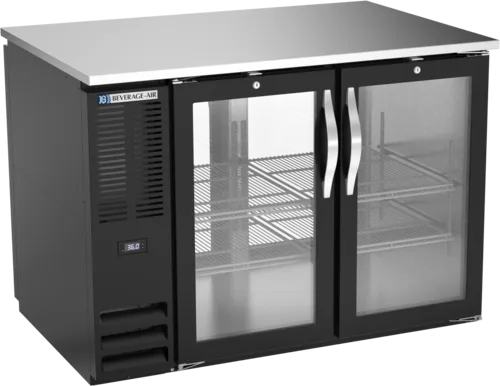

Easily locate all your supplies in an instant with the Beverage Air BB48HC-1-G-PT-B Refrigerated Pass-Thru Back Bar Refrigerator, perfect for a fast-paced bar. This backbar storage cabinet is 34 inches tall, 48 inches wide, and 25 inches deep.
- Cabinet Construction
- LED lighting
- Self-closing doors
- Full electronic control
- Field reversible doors
- Galvanized sub-top standard
- Black or stainless steel exterior
- Heavy duty stainless steel floor
- Stay-open feature & lock standard
- Two (2) epoxy coated shelves per section, standard
- Magnetic door gaskets provide positive door sealing
- Interior construction utilizes galvanized steel on walls and ceiling
- Compressor available on left or right, specify at time of unit order
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Balanced forced-air refrigeration system provides rapid chilling of product
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Solid doors
- 2” Stainless steel top
- 3”-6” casters or 6” legs
- Food rated models available
- Wine model (40º-60º models)
- Electrical Connection
- Units pre-wired at factory and include 8’ long cord and plug set.
Q & A
Certifications
Beverage Air BB48HC-G-PT-B Certifications
5-15P
Two-pole with ground pin plug
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Beverage Air BB48HC-G-PT-B Specifications
| Construction | Stainless and Galvanized Steel |
|---|---|
| Brand | Beverage Air |
| Certifications | 5-15P, cULus, UL, UL EPH, UL EPH Classified |
| Door Type | Glass |
| Width (in) | 480 |
| Height (in) | 340 |
| Depth (in) | 34.13 |
| Weight | 480 |
Additional Information on Beverage Air BB48HC-G-PT-B
- 2026 model, meets the newest EPA and DOE codes.
