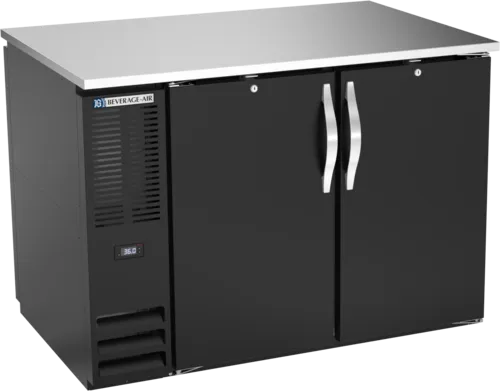

Beverage Air BB48HC-1-PT-B Refrigerated Pass-Thru Back Bar Refrigerator
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
- 2025 model, meets the newest EPA and DOE codes.
Beverage Air BB48HC-1-PT-B Accessories
Description
Beverage Air BB48HC-1-PT-B Description
A must-have, the Beverage Air BB48HC-1-PT-B Refrigerated Pass-Thru Back Bar Refrigerator sets the definition in bar organization. This backbar storage cabinet is 34 inches tall, 48 inches wide, and 25 inches deep.
- Cabinet Construction
- LED lighting
- Self-closing doors
- Full electronic control
- Galvanized sub-top standard
- Black or stainless steel exterior
- Heavy duty stainless steel floor
- Stay-open feature & lock standard
- Two (2) epoxy coated shelves per section, standard
- Magnetic door gaskets provide positive door sealing
- Compressor available on left or right, specify at time of unit order
- Interior construction utilizes galvanized steel on walls and ceiling
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Balanced forced-air refrigeration system provides rapid chilling of product
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Glass door
- 2” Stainless steel top
- 3”-6” casters or 6” legs
- Foot pedal door opener
- Food rated models available
- Wine model (40º-60º models)
- Electrical Connection
- Units pre-wired at factory and include 8’ long cord and plug set.
Options
Q & A

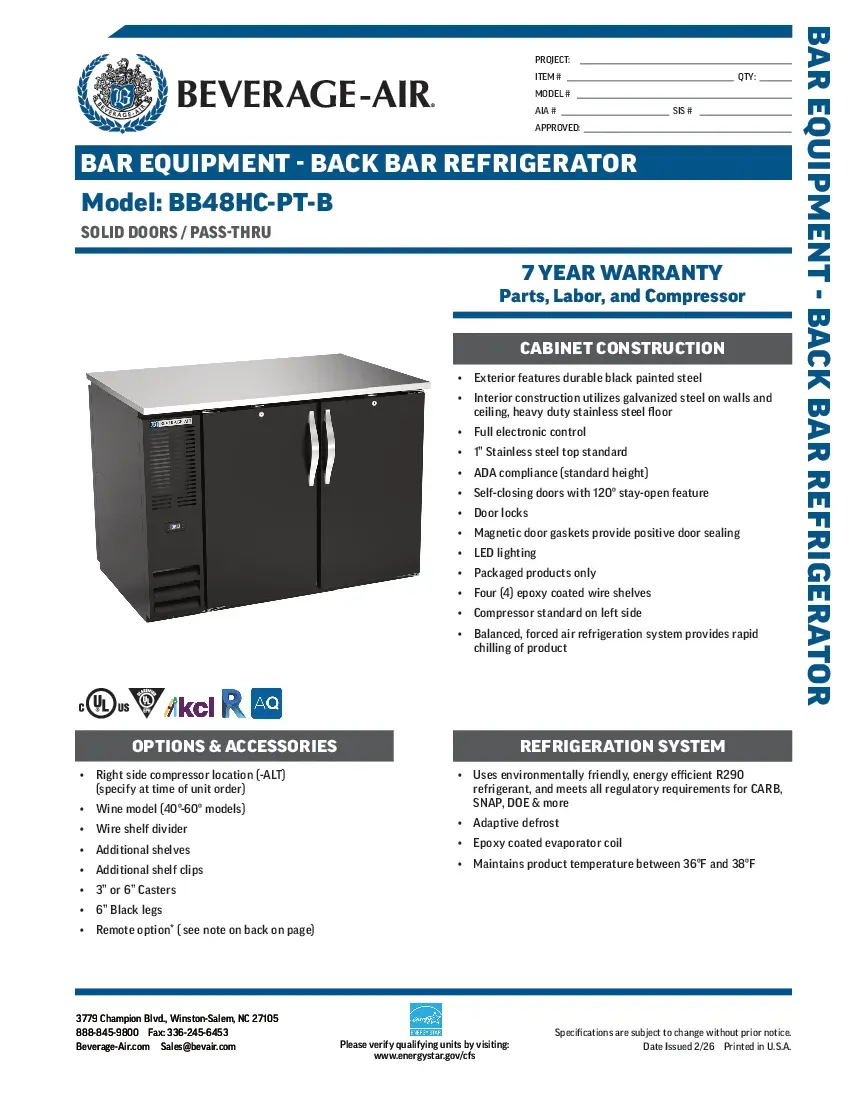

Beverage Air BB48HC-1-PT-B Specifications
| Number of Kegs | 2 Kegs |
|---|---|
| Construction | Stainless and Galvanized Steel |
| Brand | Beverage Air |
| Refrigerant Type | R-290 |
| Made in | USA |
| Certifications | cULus, UL, UL EPH, UL EPH Classified, UL-Sanitation |
| Door Style | Swing |
| Number of Doors | 4 |
| Refrigeration System | Self-contained |
| Capacity | 13.6 cu. ft. |
| Door Type | Solid |
| Sections | 2 |
| Voltage | 115 Volts |
| Width (in) | 48 |
| Height (in) | 34 |
| Depth (in) | 27.38 |
| Weight | 306 |
Additional Information on Beverage Air BB48HC-1-PT-B
Beverage Air BB48HC-1-PT-B Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
