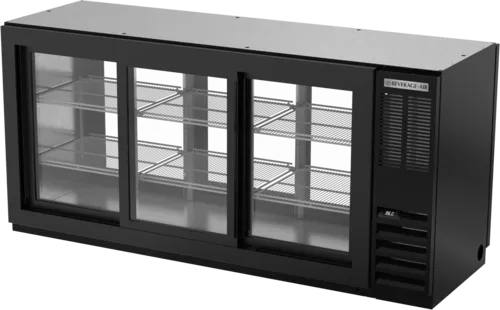

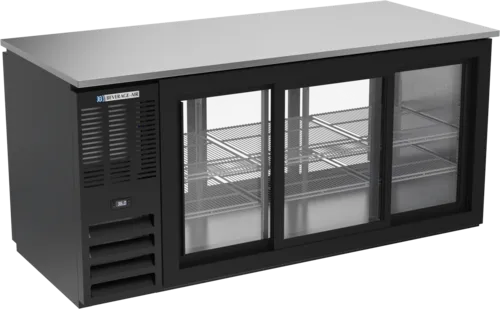

Beverage Air BB72HC-1-GS-PT-B Refrigerated Back Bar Pass-Thru Storage Cabinet
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Beverage Air BB72HC-GS-PT-B Accessories
Description
Beverage Air BB72HC-GS-PT-B Description
When workers are up to their eyeballs with orders in a back bar environment the last thing they should have to worry about are opened doors getting in their way. The BB72HC-1-GS-PT-B Refrigerated Back Bar Pass-Thru Storage Cabinet from Beverage AIr is a perfect solution that features sliding glass doors that provide easy access without getting in the way. They also have the added benefit of providing a clear view of available products so workers don’t need to guess where certain items are. This refrigerator has enough space for three ½ kegs in its 22.1 cu. ft. interior.
With sliding glass doors, accessing items is simple and stays out of other workers' way. The doors are self-closing to keep the interior cool efficiently but a stay-open feature allows users to access multiple items with both hands. Six epoxy-coated shelves come with this unit providing plenty of options to organize items inside. Items are easily identified thanks to the LED lighting which is long-lasting and highly dependable. The interior is kept evenly cooled with the forced-air refrigeration system. This also allows items to be cooled down quickly if necessary.
This unit features a side-mounted refrigeration system with a ⅓ HP compressor producing 1942 BTU/hr of cooling. The compressor can be mounted on the left or right to best fit your needs. The epoxy-coated evaporator in this unit makes sure efficient cooling is provided in a reliable manner for many years with minimal service. Fully electric controls will keep the temperature between 36ºF and 38ºF while consuming as little power as possible. Eco-friendly R290 hydrocarbon refrigerant has a low impact on the environment and it meets all regulations while proving safe sustainable cooling. The non-electric defrost cycle is extremely convenient and reduces downtime.
An 8’ power cord is provided with a NEMA 5-15-P plug set to connect it to a standard outlet with 115/60/1-ph power at 3.1 amps.
Keep your bar looking its best with the organized Beverage Air BB72HC-1-GS-PT-B Refrigerated Back Bar Pass-Thru Storage Cabinet. This backbar storage cabinet is 34 inches tall, 72 inches wide, and 25 inches deep.
- Cabinet Construction
- LED lighting
- Self-closing doors
- Full electronic control
- Galvanized sub-top standard
- Black or stainless steel exterior
- Heavy duty stainless steel floor
- Stay-open feature & lock standard
- Two (2) epoxy coated shelves per section, standard
- Interior construction utilizes galvanized steel on walls and ceiling
- Compressor available on left or right, specify at time of unit order
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Balanced forced-air refrigeration system provides rapid chilling of product
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Wire shelf dividers
- Solid or glass door
- 2” Stainless steel top
- Foot pedal door opener
- Food rated models available
- 3”-6” casters or 6” black legs
- Wine model (40º-60º models)
- Electrical Connection
- Units pre-wired at factory and include 8’ long cord and plug set.
Q & A

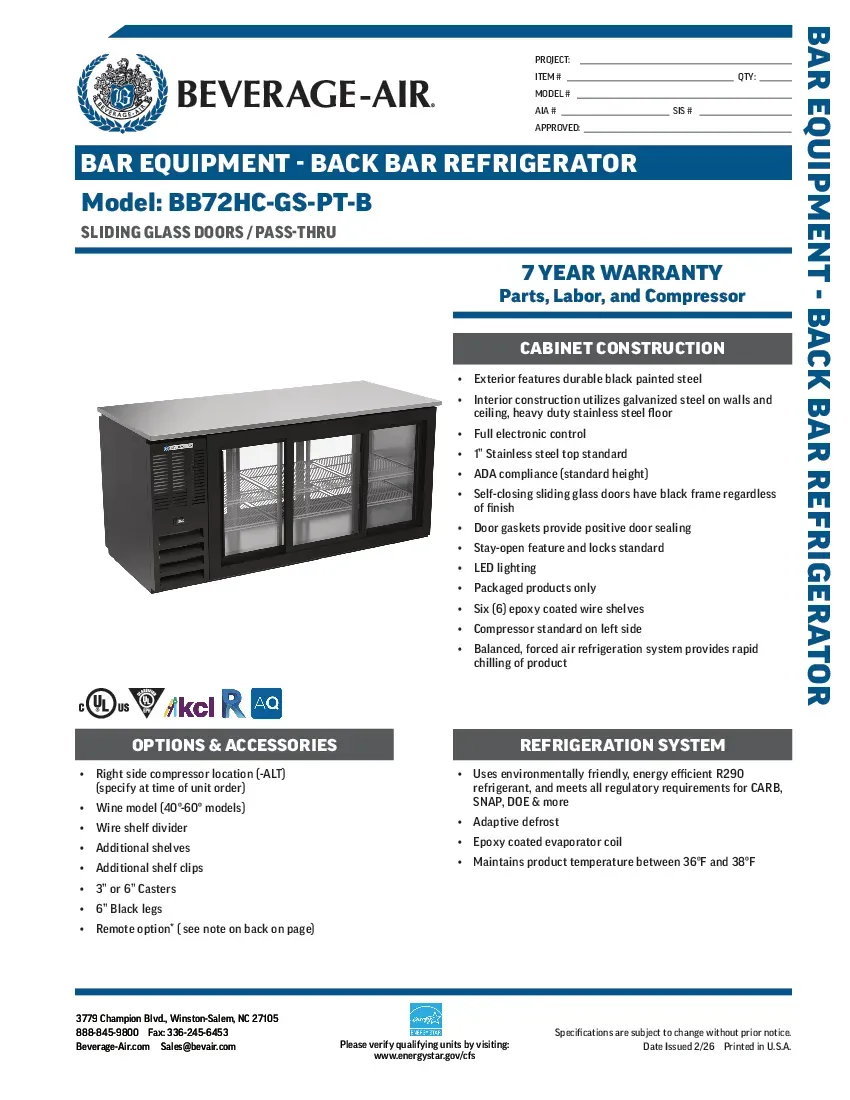

Beverage Air BB72HC-GS-PT-B Specifications
| Construction | Stainless and Galvanized Steel |
|---|---|
| Door Type | Glass |
Additional Information on Beverage Air BB72HC-GS-PT-B
- 2025 model, meets the newest EPA and DOE codes.
