Glastender DI-DP18X48 Drip Tray Trough

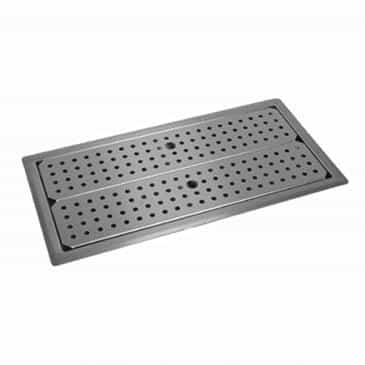

Photo of the Glastender DI-DP18X48 Drip Tray Trough
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
- All stainless steel construction
- 18 gauge stainless steel pan with removable perforated inserts
- Drain consists of 1/2" tailpiece that exits from the bottom of the unit
- Drain pan flange includes self-rimming edge for tight fit to work surface
- Available in standard widths of 12" or 18" and lengths from 24" to 48". Custom sizes also available.
- Install by making cut-out in work surface (see details below), apply silicone sealant to underside of drain pan flange, set in place and plumb drain line.
- Installation kit includes: 10' of clear vinyl drain tube, one 4" Ty-wrap, three #10 x 1/2" stainless steel sheet metal screws, three #10 x 1/2" black sheet metal screws, three cable clamps, two 1/2" x 1/2" plastic elbows.
