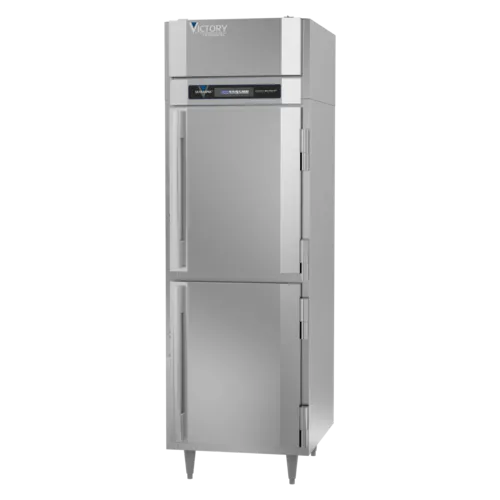

Name: Victory Refrigeration FS-1D-S1-PT-HD-HC UltraSpec™ Series Freezer Featuring Secure-Temp™
Brand: Victory Refrigeration
SKU: FS-1D-S1-PT-HD-HC
Price: 14602.7 USD
Availability: LimitedAvailability

Victory Refrigeration FS-1D-S1-PT-HD-HC UltraSpec™ Series Freezer Featuring Secure-Temp™

OPTIONS
REVIEWS
Q & A
RECOMMENDED ITEMS

Free Freight?

Quick Ship

$14,602.70

Why don't we show the price for this item?

Some manufacturers do not allow us to advertise pricing below their required minimums. In order to offer you the best possible deal, we ask that you simply contact us to find out our great price!

$11,424.47

or enjoy small payments $245.51/mo.

Calculate

Product Protection

Starting at

Reward Points

You will earn 14603

$$$ View Victory Refrigeration Promos

2023 model, meets the newest EPA and DOE codes.

View all Victory Refrigeration Pass-Thru Freezers

Victory Refrigeration FS-1D-S1-PT-HD-HC Specifications

Freezer Capacity	23.7 cu. ft.
Hinge Location	Left/Right
Construction	Stainless Steel
Half Doors	Yes
Brand	Victory Refrigeration
Refrigerant Type	R-290
Made in	USA
Certifications	UL
Number of Doors	4
Capacity	11 - 30 cu. ft.
Compressor Location	Top Mounted
Door Type	Solid
Sections	1
Temperature Range	-10 Degrees F
Width (in)	26.50
Height (in)	84.25
Depth (in)	39.25
Weight	375.00

Additional Information on Victory Refrigeration FS-1D-S1-PT-HD-HC

victory-refrigeration-fs-1d-s1-pt-hd-hcspecsheet.pdf

warranty-sheet.pdf

glass-door-flyer.pdf

warranty-update.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Victory Refrigeration FS-1D-S1-PT-HD-HC Certifications

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

Victory Refrigeration FS-1D-S1-PT-HD-HC Description

UltraSpec™ Series Freezer, Powered by V-Core™, Pass-Thru, one-section, self-contained refrigeration, 23.7 cu. ft. capacity, (4) half height solid hinged doors, (3) silver freeze (chrome-style) shelves, stainless exterior & interior, standard depth cabinet, TOUCH POINT™ electronic temperature control/indicator, LED lighting, expansion valve technology, Santoprene door gaskets with 2 year warranty, stainless steel breakers, 1/2 HP, UL, cUL, UL EPH Classified, MADE IN USA

UltraSpec™ Series Pass-Through Freezer, one-section, self-contained refrigeration, 23.7 cu. ft. capacity, (4) half height solid hinged doors, (3) silver freeze (chrome-style) shelves, stainless exterior & interior, standard depth cabinet, TOUCH POINT™ electronic temperature control/indicator, LED lighting, expansion valve technology, Santoprene door gaskets with 2 year warranty, stainless steel breakers, 1/2 HP, UL, cUL, UL EPH Classified, MADE IN USA (more pass-thru refrigerators and freezers available)

Options for Victory Refrigeration FS-1D-S1-PT-HD-HC

Correctional options

4" Clearance Welded Type A/C Tray Slides +$923.79 7" Clearance Welded Type A/C Tray Slides +$568.55 Additional Door Hinge +$134.95 Correctional Door Handles +$120.73 Flanged Feet +$174.97 Lexan Cover +$111.47 Lexan Cover: Slotted +$111.47 No lights Option Padlock Hasp Assembly +$108.15 Slotted Top/Back Cover +$135.93 Tamper-Proof Lights +$161.07 Tamper-Proof Screws +$95.59 Top Shroud Bracket +$22.16

Control/Kitchen side door hinging

Control/Kitchen side door hinging: field-reversible +$205.29 Control/Kitchen side door hinging: standard on right Control/Kitchen side door hinging: on left at factory

FlexTemp

FlexTemp Control Option (0° - 20°F), capable of set points between 0° to 20°F with positive defrost cycles (add -FLEX to end of model number) +$492.27

Rear/Server side door hinging

Rear/Server side door hinging: field-reversible +$205.29 Rear/Server side door hinging: on right standard Rear/Server side door hinging: on left on rear at factory

Correctional options (all prices are per unit)

Banking Strips (Contact Regional Sales Manager for pricing) No lights Option Top Shroud Bracket +$21.94 4" Clearance Welded Type A/C Tray Slides +$925.40 7" Clearance Welded Type A/C Tray Slides +$569.47 Additional Door Hinge +$135.18 Correctional Door Handles +$120.80 Padlock Hasp Assembly +$216.43 Slotted Top/Back Cover +$135.89 Tamper-Proof Lights +$161.06 Tamper-Proof Screws +$95.63 Flanged feet +$175.08 Lexan Cover +$111.45 Lexan Cover: Slotted +$111.45

Cabinet options

Front Kick Plate (per side on pass-thru models) +$162.19 Heat shield, left side +$820.54 Heat shield, right side +$820.54 Louvered upper case ends - each +$184.64 Stainless steel case back - with stainless steel rear air grille, for reach-in models +$443.19 Tie-in (banking) strips - each +$144.24 Exterior laminate (contact factory for pricing)

Delivery

Lift gate delivery, per load (Required if there is no dock at the location or if there is no forklift onsite to take the unit(s) off the truck) +$76.00 Limited access (Required if delivery is needed outside of M-F 8-5) +$85.50 Notification (call before) (Required if there is a chance there will not be someone onsite to accept delivery M-F 8-5) +$20.90 Theshold Delivery: Driver will deliver and place unit at the exterior threshold.Unit will not be placed inside building. +$26.93 If a top extension of 93" or more is requested AND liftgate delivery is needed then this unit will require flatbed delivery +$201.99

Refrigeration

Remote refrigeration system by others (part # -R) (TO BE SUPPLIED BY OTHERS) Self-Contained refrigeration

Door options

Control/Kitchen side: Standard Glass Half Doors in lieu of standard solid half doors, one-section +$634.11 Rear/Server side: Standard Glass Half Doors in lieu of standard solid half doors, one-section +$634.11

Interior options

Silver Freeze Shelf (chrome-style) +$124.49 Silver Freeze Shelf, for "A" tray slides (chrome-style) +$71.22 Silver Freeze Shelf, for A/C & steel rod tray slides (chrome-style) +$45.18 Type "A" Tray Slide Pair, 1 tray slide set for (1) 18" x 26" or (2) 14" x 18" pans +$49.68 Type "A/C" Tray Slide Pair, 1 tray slide set for (1) 18" x 26" or (2) 14" x 18" or (2) 12" x 20" Pans +$84.68 NOTE: For retrofit tray slide kit information please contact your dedicated Victory customer service team

Mounting options

3" Casters, in lieu of standard 6" stainless steel legs, no charge when specified on order 6" Casters, in lieu of standard 6" stainless steel legs, no charge when specified on order 6" Seismic Legs (set of 4) +$178.66 Legs, set of 4, 6" high adjustable stainless steel, standard
