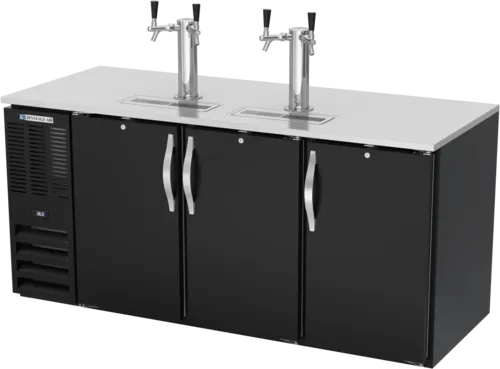

Beverage Air DD72HC-1-B 4 Taps 1/2 Barrel Draft Beer Cooler - Black, 3 Kegs Capacity, 115 Volts
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air DD72HC-1-B Specifications
| Number of Kegs | 3 Kegs |
|---|---|
| Number of Taps | 4 Taps |
| Amps | 5 Amps |
| Installation Type | Freestanding |
| Construction | Stainless and Galvanized Steel |
| Brand | Beverage Air |
| Refrigerant Type | R-290 |
| Made in | USA |
| Type | Beer Dispensers |
| Certifications | cULus |
| Number of Doors | 3 |
| Exterior Finish | Black |
| Door Type | Solid |
| Sections | 3 |
| Style | 1/2 Barrel |
| Voltage | 115 Volts |
| Width (in) | 72 |
| Height (in) | 51.25 |
| Depth (in) | 24.38 |
| Weight | 424.00 |

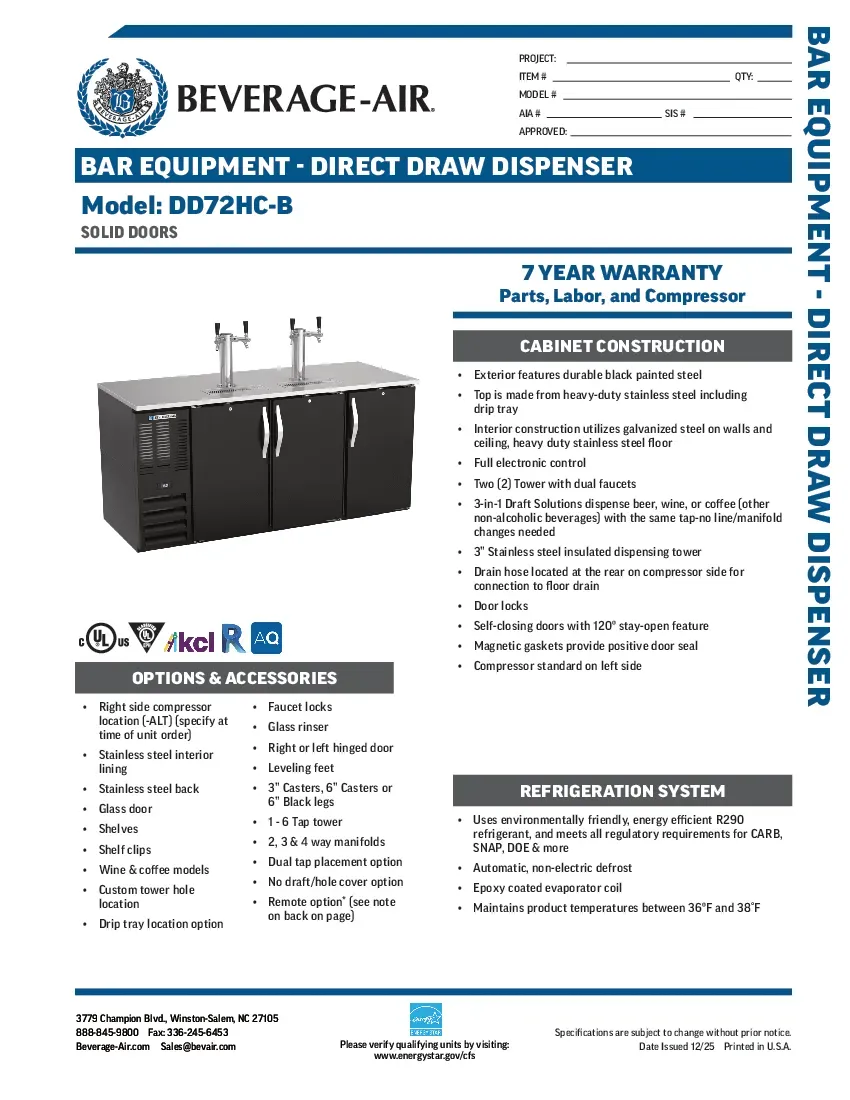

Additional Information on Beverage Air DD72HC-1-B
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air DD72HC-1-B Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air DD72HC-1-B Description
The DD72HC-1-B Draft Beer Cooler is an easy-to-use draft beer dispenser that will dependably serve in a commercial bar for many years. This dispenser has 19.95 cu. ft. of interior space for three ½ kegs.
The unit features self-closing doors and magnetic door gaskets to make sure the doors are never left ajar and a positive seal is maintained to reduce power consumption. The doors come standard with locks to keep kegs inside safe. The interior walls and ceiling are made from galvanized steel while the floor and door sills are made from durable stainless steel. With two towers that come standard with a total of four taps, this draft beer cooler provides many options. The towers are 3” in diameter and feature insulation to keep the beer as cool as possible while reducing foam. The top of the unit features durable stainless steel to stand up to daily use and comes with drip trays to catch any spills. To prevent microbial growth this unit uses silver-lined tubing allowing for a 3-in-1 draft solution making a single tap able to serve different beverages such as wine, coffee, or non-alcoholic beverages.
On the side of this beer dispenser is a self-contained refrigeration system featuring a ⅓ HP compressor that puts out 1942 BTU/hr of cooling. The compressor can be located on either the left or right side of the unit to best fit your needs. The epoxy-coated evaporator in this unit makes sure efficient cooling is provided in a reliable manner for many years with minimal service. Fully electric controls will keep the temperature between 36ºF and 38ºF while consuming as little power as possible. Eco-friendly R290 hydrocarbon refrigerant has a low impact on the environment and it meets all regulations while proving safe sustainable cooling. The non-electric defrost cycle is extremely convenient and reduces downtime.
Connecting this unit to a standard outlet supplying 115v/60/1-ph power at 3.1 amps is simple with the factory-provided 8-foot power cable with a NEMA 5-15P plug set.
Standard Features:
- Cabinet Construction
- Two dual tap towers
- Full electronic control
- Field reversible doors
- Self-closing doors with locks
- 3” Insulated dispensing tower(s)
- Magnetic gaskets provide positive door seal
- Top is made from heavy-duty stainless steel including drip tray
- Compressor available on left or right, specify at time of unit order
- Exterior is wear resistant vinyl on steel in black or stainless steel finish
- Drain tube located at bottom front of cooler or connection to floor drain
- Interior is galvanized steel on walls and ceiling, reinforced floor is heavy duty stainless steel
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Models feature forced air refrigeration to keep beer in kegs ice cold for dispensing
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Wine taps
- Turbo taps
- Glass rinser
- Faucet locks
- Wine models
- 1-5 Tap tower
- 2, 3 & 4 way manifolds
- Foot pedal door opener
- Special 6 tap/pan option
- No draft/hole cover option
- Epoxy coated wire shelves
- Stainless steel exterior & interior available
- 3”-6” casters or 6” legs with adjustable plate
NOTE! This is a general product line video and does not necessarily reflect the listed model.
