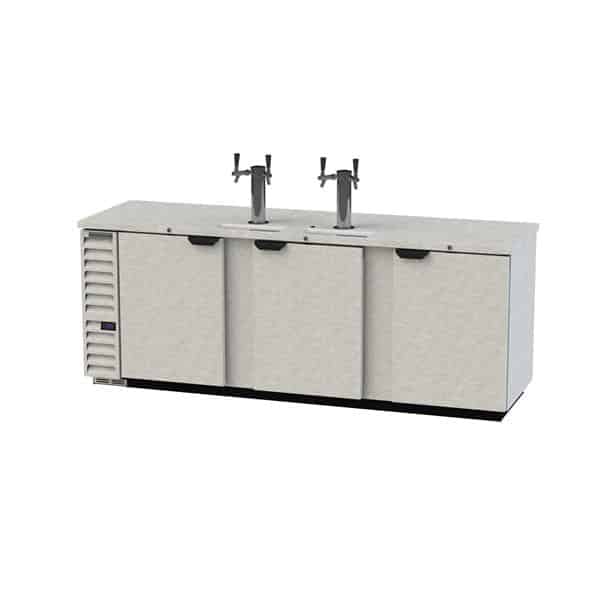

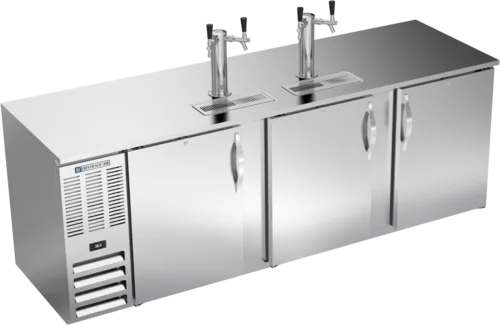

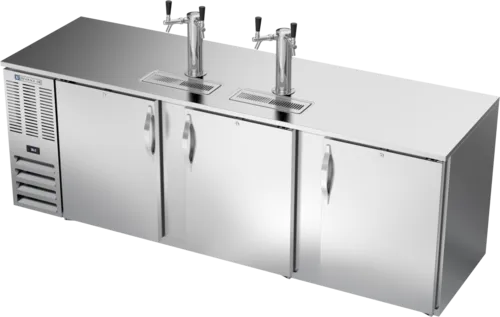

Beverage Air DD94HC-1-S 4 Taps 1/2 Barrel Draft Beer Cooler - Stainless Steel, 5 Kegs Capacity, 115 Volts
Calculate
- 2023 model, meets the newest EPA and DOE codes.
Beverage Air DD94HC-1-S Specifications
| Number of Taps | 4 Taps |
|---|---|
| Number of Kegs | 5 Kegs |
| Amps | 5.5 Amps |
| Installation Type | Built-In |
| Construction | Stainless and Galvanized Steel |
| Brand | Beverage Air |
| Refrigerant Type | R-290 |
| Made in | USA |
| Type | Beer Dispensers |
| Certifications | cULus |
| Number of Doors | 3 |
| Exterior Finish | Stainless Steel |
| Door Type | Solid |
| Sections | 3 |
| Style | 1/2 Barrel |
| Voltage | 115 Volts |
| Width (in) | 95 |
| Height (in) | 52.5 |
| Depth (in) | 29 |
| Weight | 458.00 |
Additional Information on Beverage Air DD94HC-1-S
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Beverage Air DD94HC-1-S Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
UL-Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Beverage Air DD94HC-1-S Description
If you can’t install a remote line draft beer system in your establishment but still need to serve a lot of beer the DD94HC-1-S Draft Beer Cooler from Beverage Air might be the best solution. The interior has 37.82 cu. ft. of refrigerated space for storing five ½ kegs.
This unit features self-closing doors that come standard with locks for security. The interior walls and ceiling are made from galvanized steel while the floor and door sill are reinforced with durable stainless steel to handle kegs. This unit has a stainless steel top with built-in drip trays to catch spills. The drip trays connect to a drain tube at the bottom of the unit to empty into a floor drain. Beer served from this unit is always nice and cool without too much foam thanks to the insulated 3" stainless steel dispensing towers with a total of four taps.
On the side of this beer dispenser is a self-contained refrigeration system featuring a ⅓ HP compressor that puts out 2392 BTU/hr of cooling. The compressor can be located on either the left or right side of the unit to best fit your needs. The temperature inside is maintained between 36ºF and 38ºF by the fully electronic controls. An epoxy-coated evaporator coil makes sure efficient cooling will be provided for many years with minimal service. The interior is kept free of frost with an automatic non-electric defrost system that cuts down on downtime. To meet all environmental regulations, R290 refrigerant is used.
Connecting this unit to a standard 115v/60/1-ph power outlet is simple with the factory wired 8’ power cable with a NEMA 5-15P plug set.
Standard Features:
- Cabinet Construction
- Full electronic control
- Field reversible doors
- Two (2) dual tap towers
- Self-closing doors with locks
- 3” Insulated dispensing tower(s)
- Magnetic gaskets provide positive door seal
- Top and drip tray are heavy-duty stainless steel
- Compressor available on left or right, specify at time of unit order
- Exterior is wear resistant vinyl on steel in black or stainless steel finish
- Drain tube located at bottom front of cooler or connection to floor drain
- Interior is galvanized steel on walls and ceiling, reinforced floor is heavy duty stainless steel
- Refrigeration System
- Epoxy coated evaporator coil
- Automatic, non-electric evaporator
- Models feature forced air refrigeration to keep beer in kegs ice cold for dispensing
- Refrigeration system uses R290 refrigerant to comply with all environmental concerns
- Options & Accessories
- Wine taps
- Turbo taps
- Glass rinser
- Faucet locks
- Wine models
- 1-5 Tap tower
- Low profile casters
- Special 6/pan option
- 2,3 & 4 way manifolds
- Foot pedal door opener
- No draft/hole cover options
- Epoxy coated wire shelves
- Stainless steel interior available
- 3”-6” casters or 6” legs with adjustable plate
