Beverage Air FB23HC-1S 27.25'' 22.5 cu. ft. Bottom Mounted 1 Section Solid Door Reach-In Freezer

SKU#: FB23HC-1S
Made in USA
Free Freight?
Quick Ship
$4,665.69
$4,071.29
or enjoy small payments $87.49/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 4666
  • 2023 model, meets the newest EPA and DOE codes.

Beverage Air FB23HC-1S Specifications

Freezer Capacity22.5 cu. ft.
Half DoorsNo
Hinge LocationRight
ConstructionStainless Steel and Aluminum
BrandBeverage Air
Refrigerant TypeR-290
Number of Doors1
Made inUSA
CertificationscULus
Refrigeration SystemSelf-contained
Capacity11 - 30 cu. ft.
Compressor LocationBottom Mounted
Door TypeSolid
Sections1
Temperature Range0 Degrees F
Voltage115 Volts
Width (in)27.25
Height (in)84.25
Depth (in)33.75
Weight408.00

Additional Information on Beverage Air FB23HC-1S

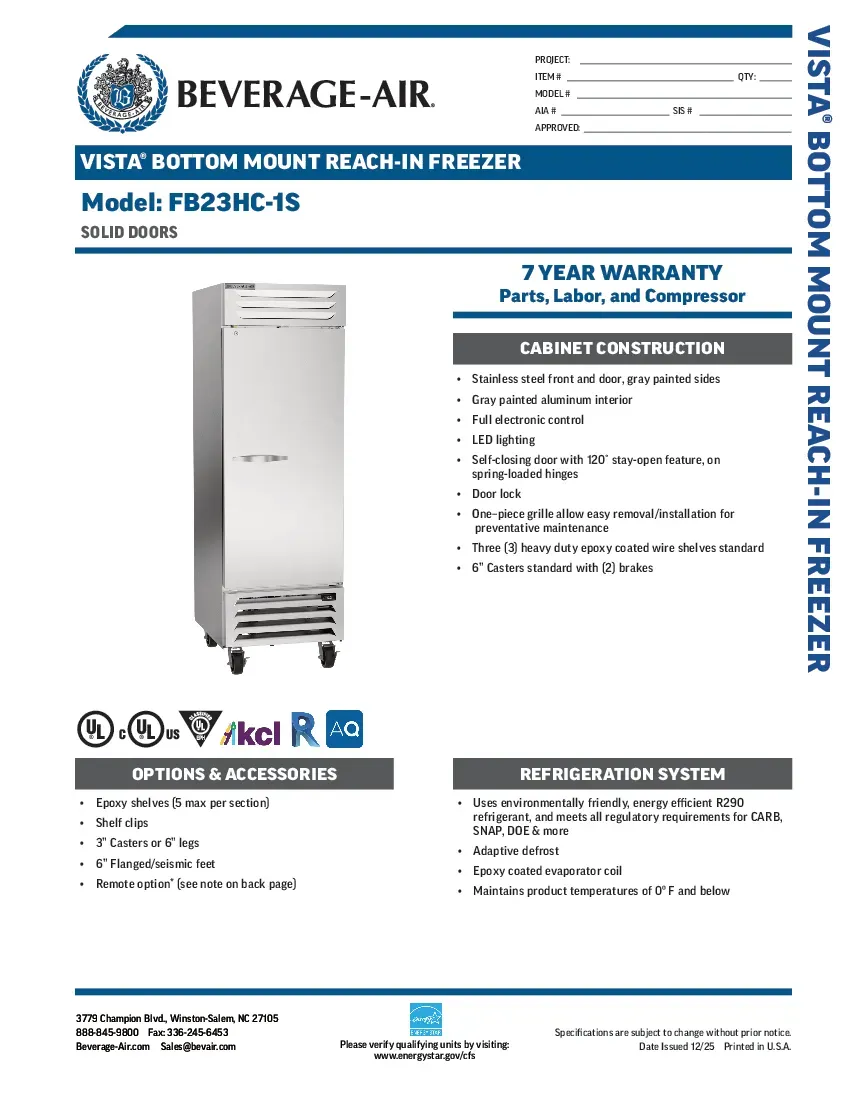

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Beverage Air FB23HC-1S Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

UL

UL

UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

UL EPH

UL EPH

Certifies that the goods conform to public health and environmental quality compatibility requirements.

UL EPH Classified

UL EPH Classified

This product complies with UL EPH standards and meets ANSI/NSF requirements.

UL-Sanitation

UL-Sanitation

This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Beverage Air FB23HC-1S Description

Vista® Freezer, reach-in, one-section, 27-1/4"W, 84-1/8"H, 23.32 cu. ft., electronic control, (1) lockable hinged solid door, (3) wire shelves, LED lighting, adaptive defrost, gray painted aluminum interior, stainless steel front, gray coated steel sides, bottom-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 3/4 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

The FB23HC-1S Freezer from Beverage Air is an excellent pick for any commercial enterprise that needs a tried and tested freezer. The interior of this freezer can hold up to 22.5 cu. ft. to store food safely for as long as possible.

This unit comes with three durable epoxy-coated shelves that maximizes the use of space while keeping items well organized. Everything inside the painted grey aluminum sections is easy to see thanks to the cool LED lighting that will outlast other forms of lighting while consuming less energy. The sturdy door features an easy to grasp anti-microbial handle that provides an additional layer of sanitation. The door has a self-closing feature to prevent it from being left ajar and a 120º stay-open feature allows for easy access to multiple items with both hands.

The self-contained refrigeration system at the bottom of the unit makes it easy to access for service and raises the bottom sections from the ground. The ¾ HP compressor produces 1927 BTU/hr of cooling. To keep food frozen the temperature inside the refrigerated drawers is kept below 0ºF by the fully electronic control. An epoxy-coated evaporator coil makes sure efficient cooling will be provided for many years with minimal service. The automatic electric defrost system keeps the refrigeration system running efficiently without requiring attention. To meet strict environmental regulations, eco-friendly R290 refrigerant is used for efficient low-impact cooling.

For convenience Beverage Air normally ships this unit on 6” casters allowing it to be moved easily. It can also be ordered with 3” casters or 6” legs without an increase to its price. Connecting this unit to a standard outlet supplying 115v/60/1-ph power at 7.5 amps is simple with the factory-provided 8-foot power cable with a NEMA 5-15P plug set.

Options for Beverage Air FB23HC-1S

Refrigeration
Tray slides
What is included
  • Parts & labor warranty: 3 years parts & labor warranty (excludes maintenance items)
  • Voltage: 115v/60/1-ph, 7.5 amps, cord with NEMA 5-15P
Door hinging
Legs & casters

Beverage Air FB23HC-1S Accessories
